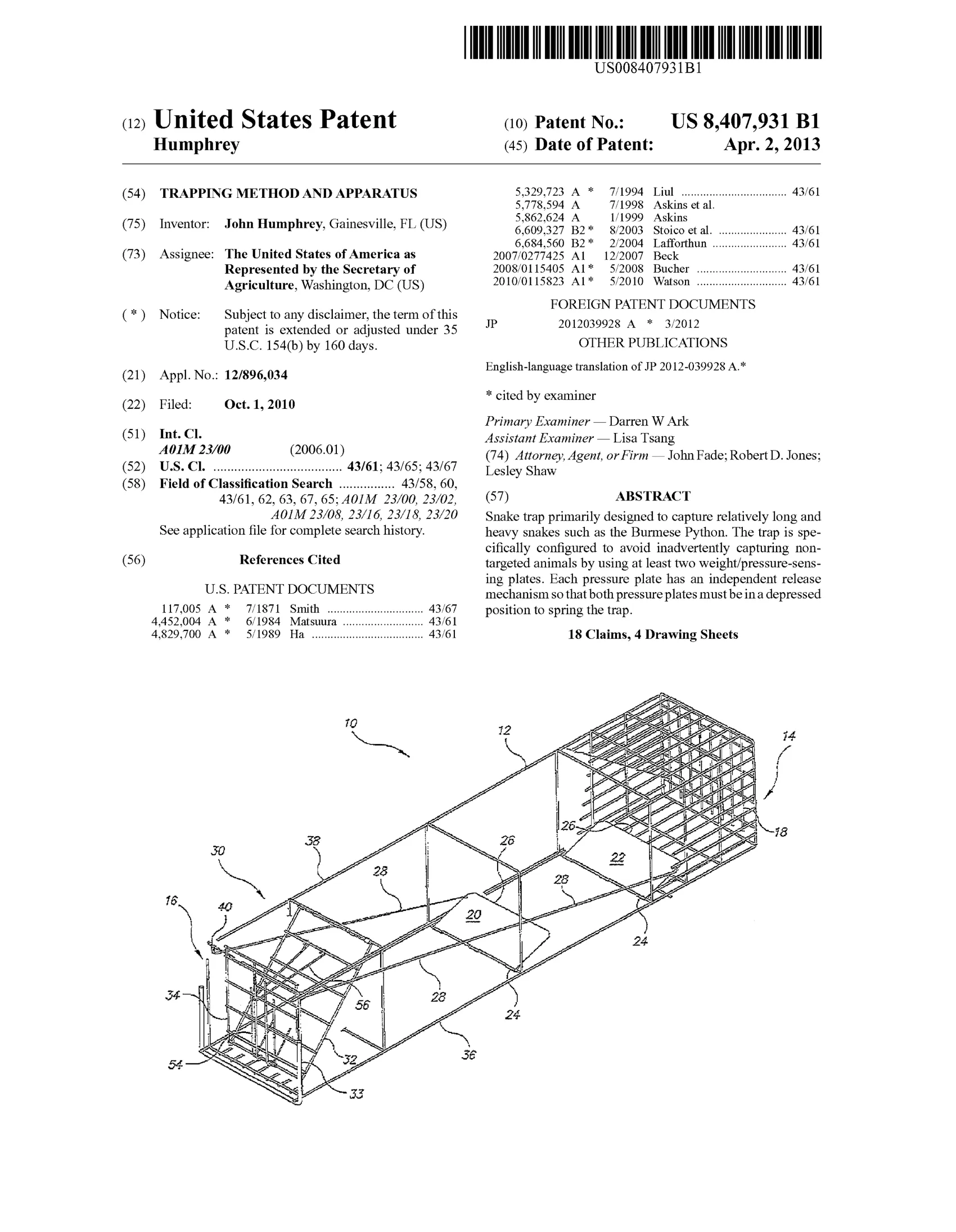

TRAPPING METHOD AND APPARATUS

Cannot be sprung unless two pressure plates are depressed at the same time.

PatentUS 8,407,931
PatentedApril 2, 2013
InventorJohn Humphrey
OfGainesville, FL

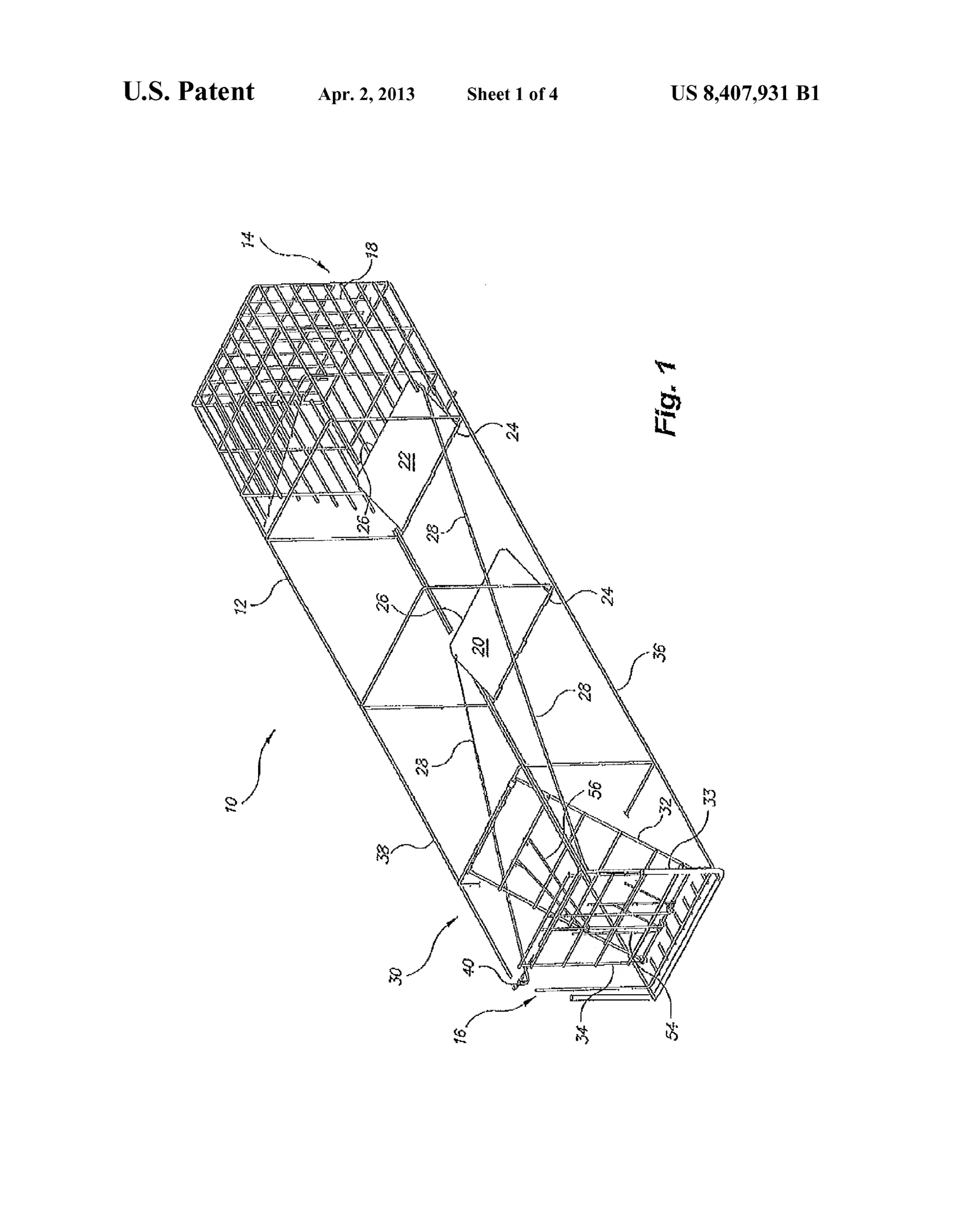

Perspective line drawing of an elongated rectangular mesh cage trap with a hinged door frame at one end, internal diagonal braces, and pressure-plate linkage rods running the length of the cage.
click to zoom
Sheet 1Sheet 2Sheet 3Sheet 4Sheet 5Sheet 6Sheet 7Sheet 8

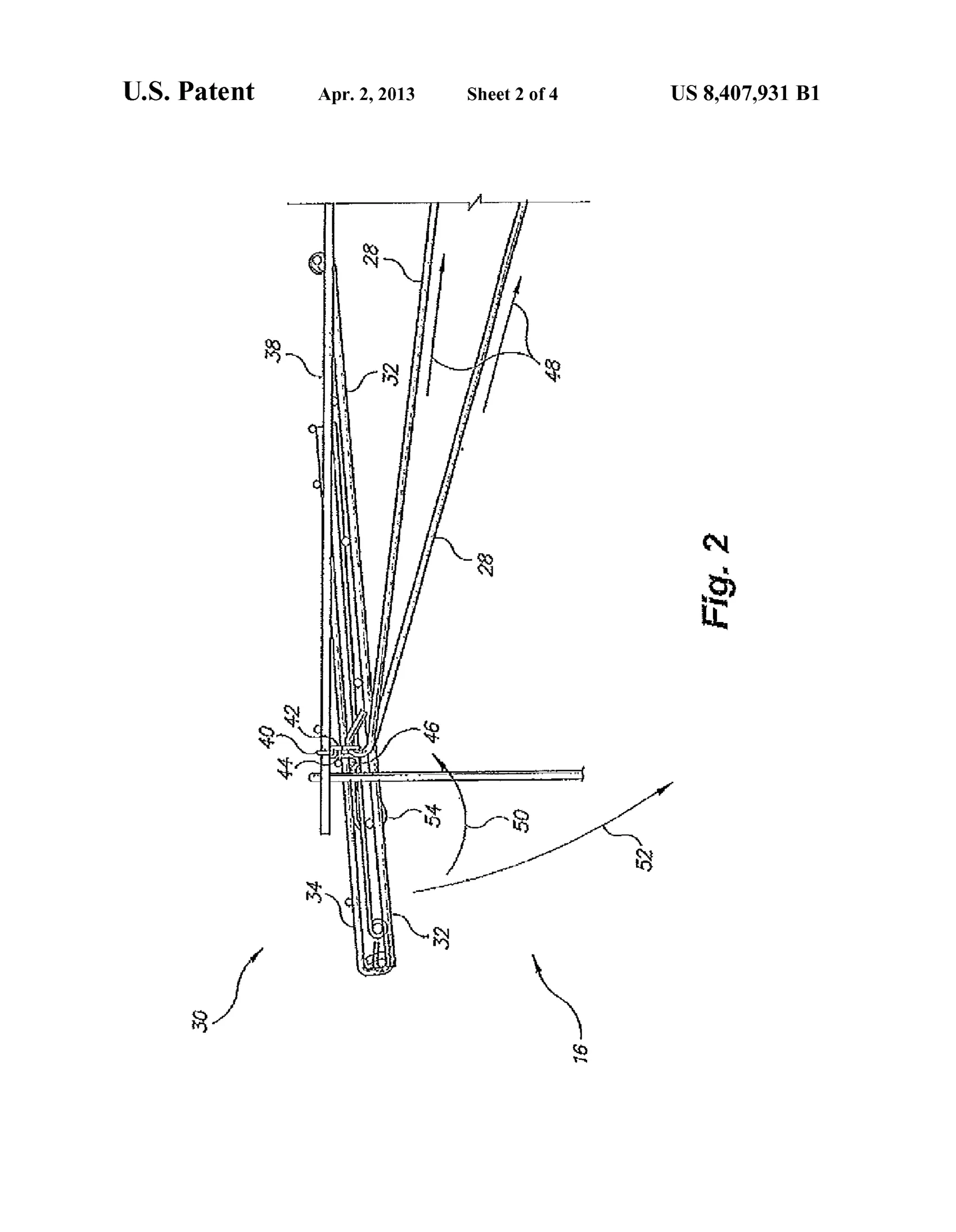

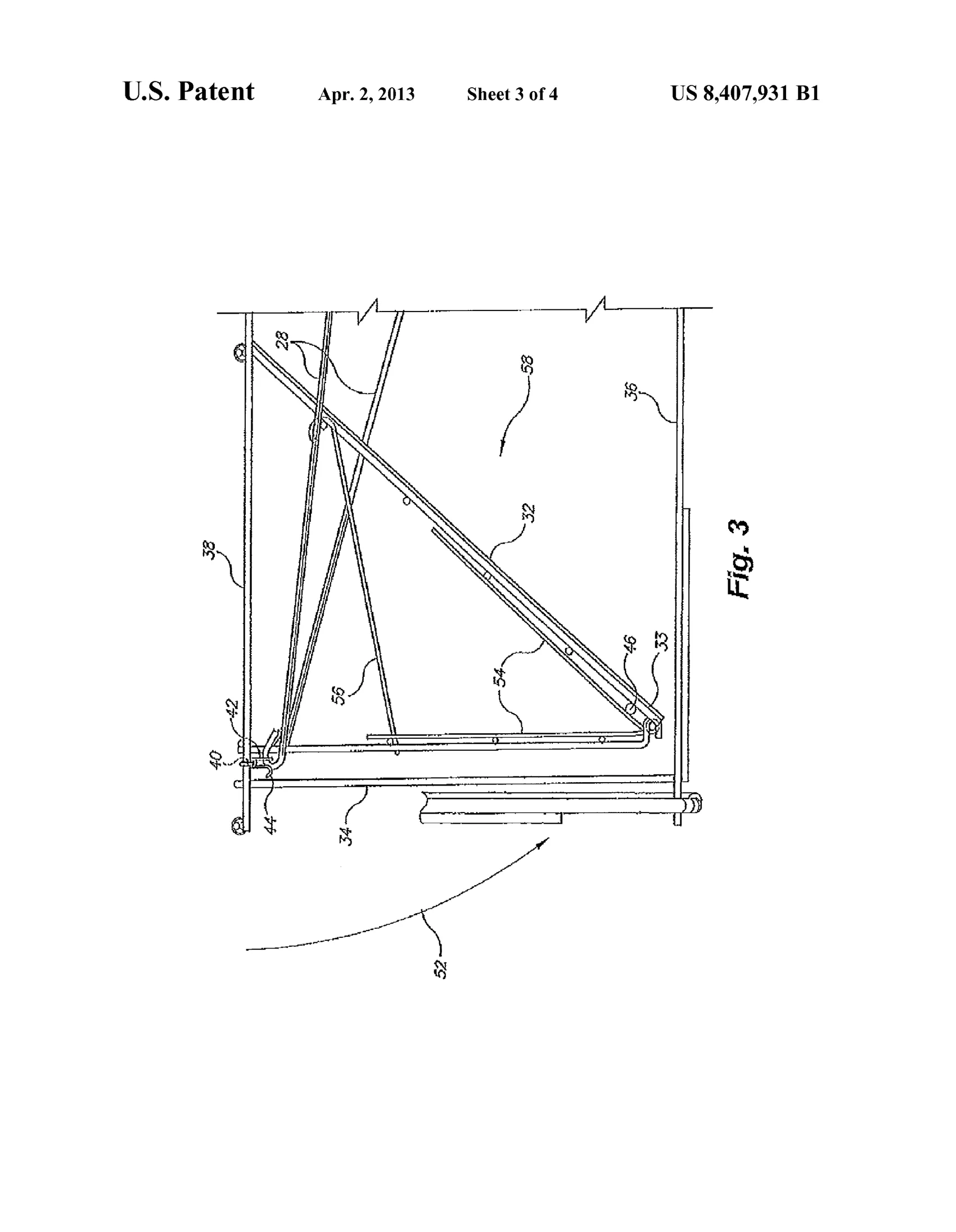

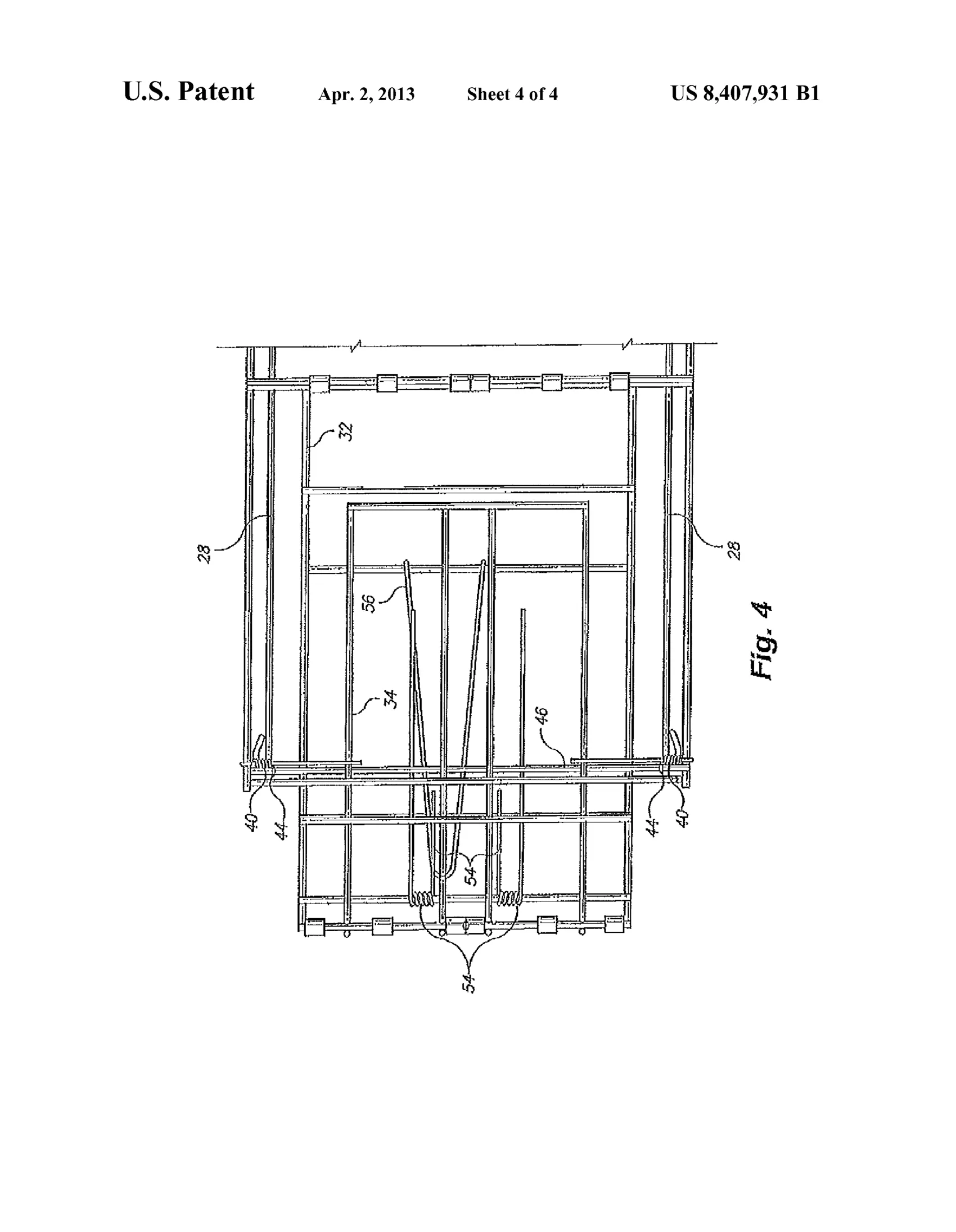

The animal enters an elongated cage through an open end whose door is held raised by two independent release hooks. Each hook connects by a linkage rod to its own pressure plate, one near the entrance and one farther inside; pressing either plate alone does nothing. When the animal is long enough to depress both plates simultaneously, both hooks pivot rearward and the door swings shut under gravity. A torsion spring then forces a bracing plate against the closed door so the occupant cannot push it back open.

“The design of the trap precludes the possibility of inadvertently trapping smaller animals that do not meet the size requirements of the trap's capture mechanism.”— John Humphrey, from the specification

And the world did not beat a path to his door.
