And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

VISCOUS FISH EGG KILLING DEVICE

Electrified fish nests attract fish to spawn, then kill the eggs.

PatentUS 9,357,761
PatentedJune 7, 2016
InventorXiaotao Shi
OfYichang, Hubei

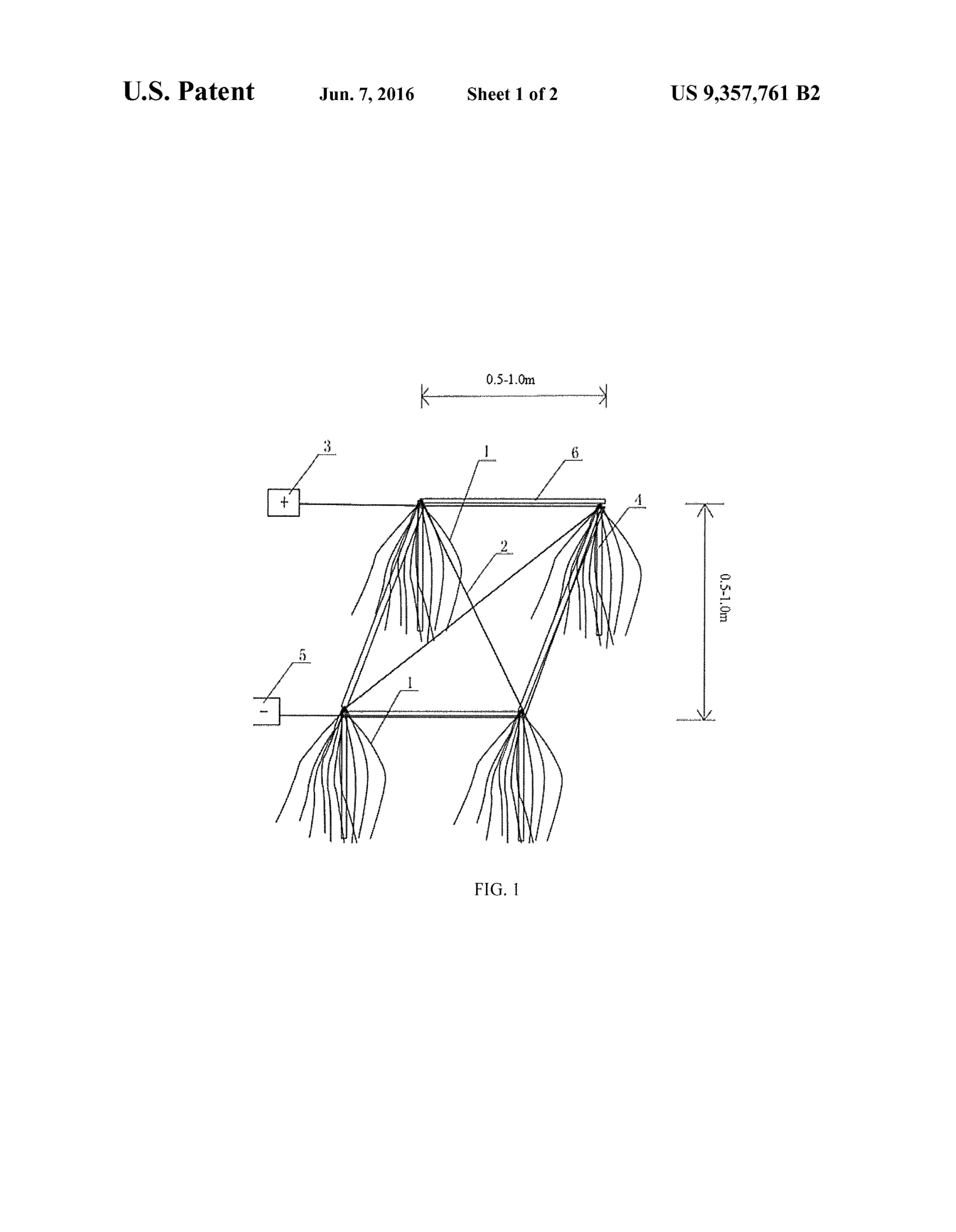

Line drawing of four bushy root-like fish nests arranged in a rectangle, wired diagonally to a positive terminal box and a negative terminal box, with dimension arrows marking 0.5-1.0 meter spacing between nests.
click to zoom
Sheet 1Sheet 2Sheet 3Sheet 4Sheet 5Sheet 6

Paired artificial fish nests made of willow roots or plastic rope beards are suspended side by side in water on float rods, 0.1 to 0.5 meters apart. One nest is wired to the positive pole and the other to the negative pole of a 5-36 volt DC power source, with a fine wire or metal mesh embedded in each nest. Invasive fish are attracted to spawn on the nests, and their viscous fertilized eggs adhere to the dispersed fibers. The operator turns on the power source, and the electric field formed between the two nests kills the attached eggs.

“It is worth of thinking deeply in reverse thinking, i.e., clearing the invasive fish eggs by the use of the viscous eggs spawned by the fish.”— Xiaotao Shi, from the specification

And the world did not beat a path to their door.
