And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

RODENT TRAP HAVING A SNARE

The mouse must position itself inside the snare before it fires.

PatentUS 7,921,593
PatentedApril 12, 2011
InventorPeter J. Everett
OfCollinsville, CT

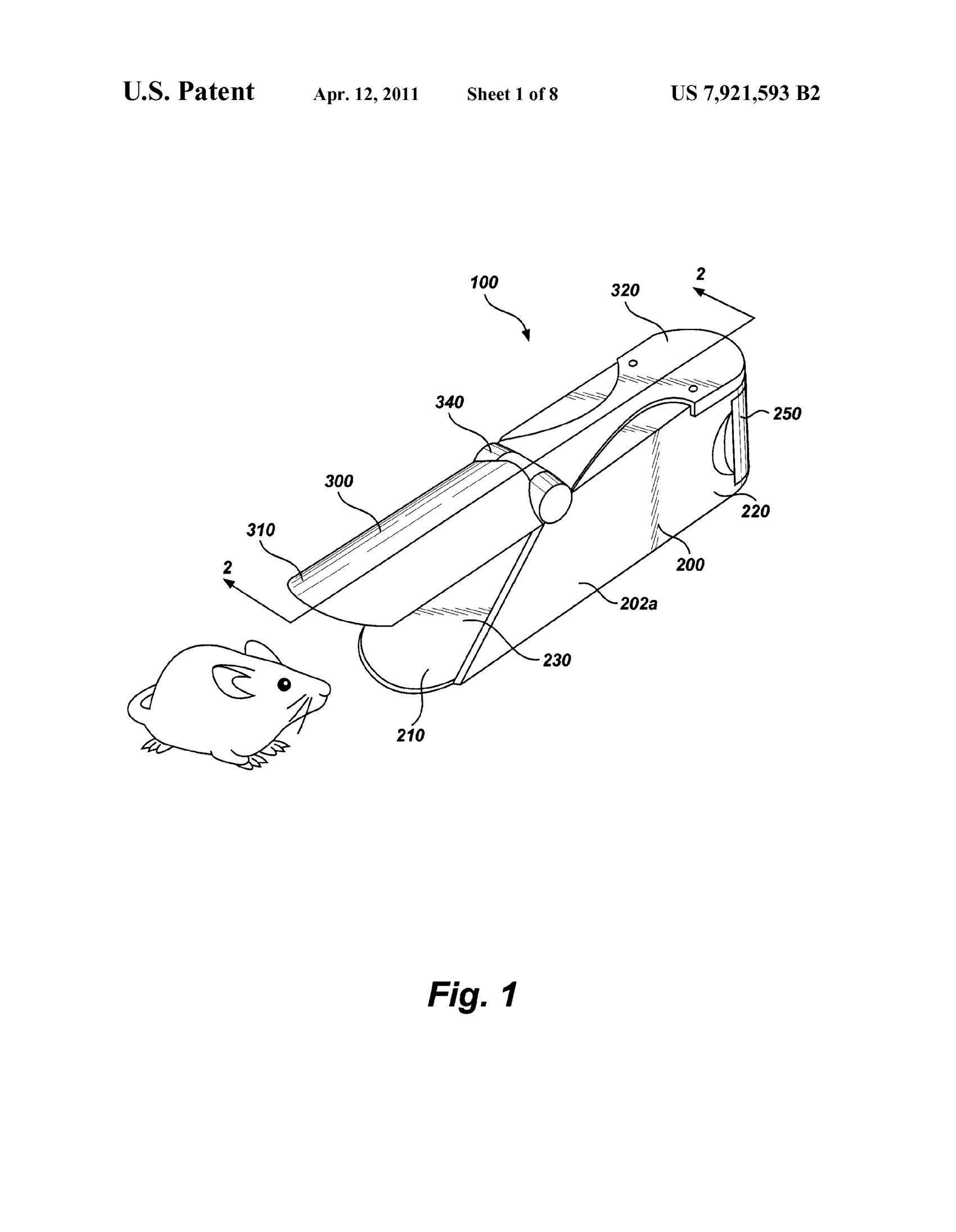

Line drawing of a wedge-shaped rodent trap housing with a pivoting snare bar mounted near the entrance, shown with a rat approaching and, in another view, caught partially inside the loop mechanism.
click to zoom
Sheet 1Sheet 2Sheet 3Sheet 4Sheet 5Sheet 6Sheet 7Sheet 8Sheet 9Sheet 10Sheet 11Sheet 12Sheet 13Sheet 14Sheet 15

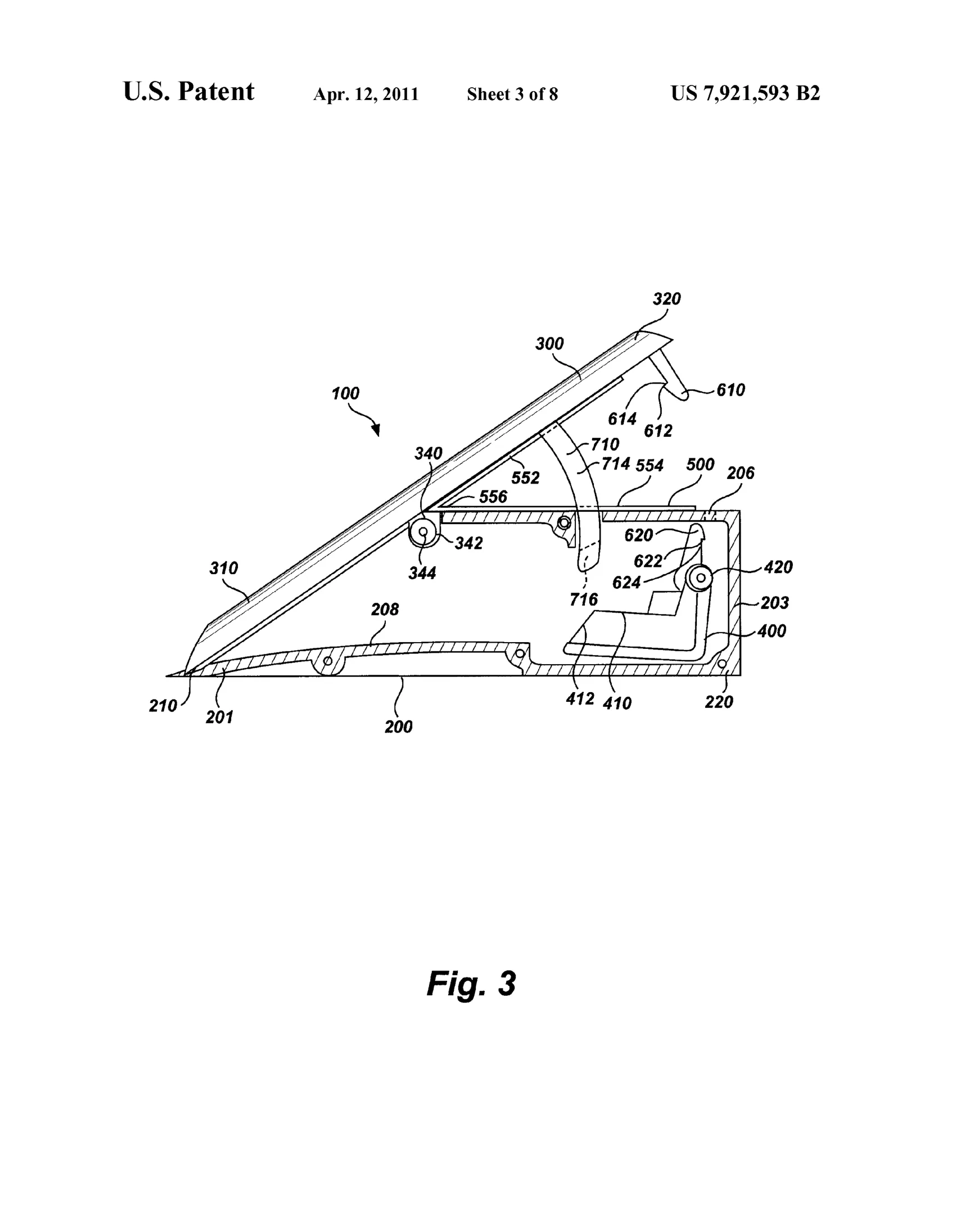

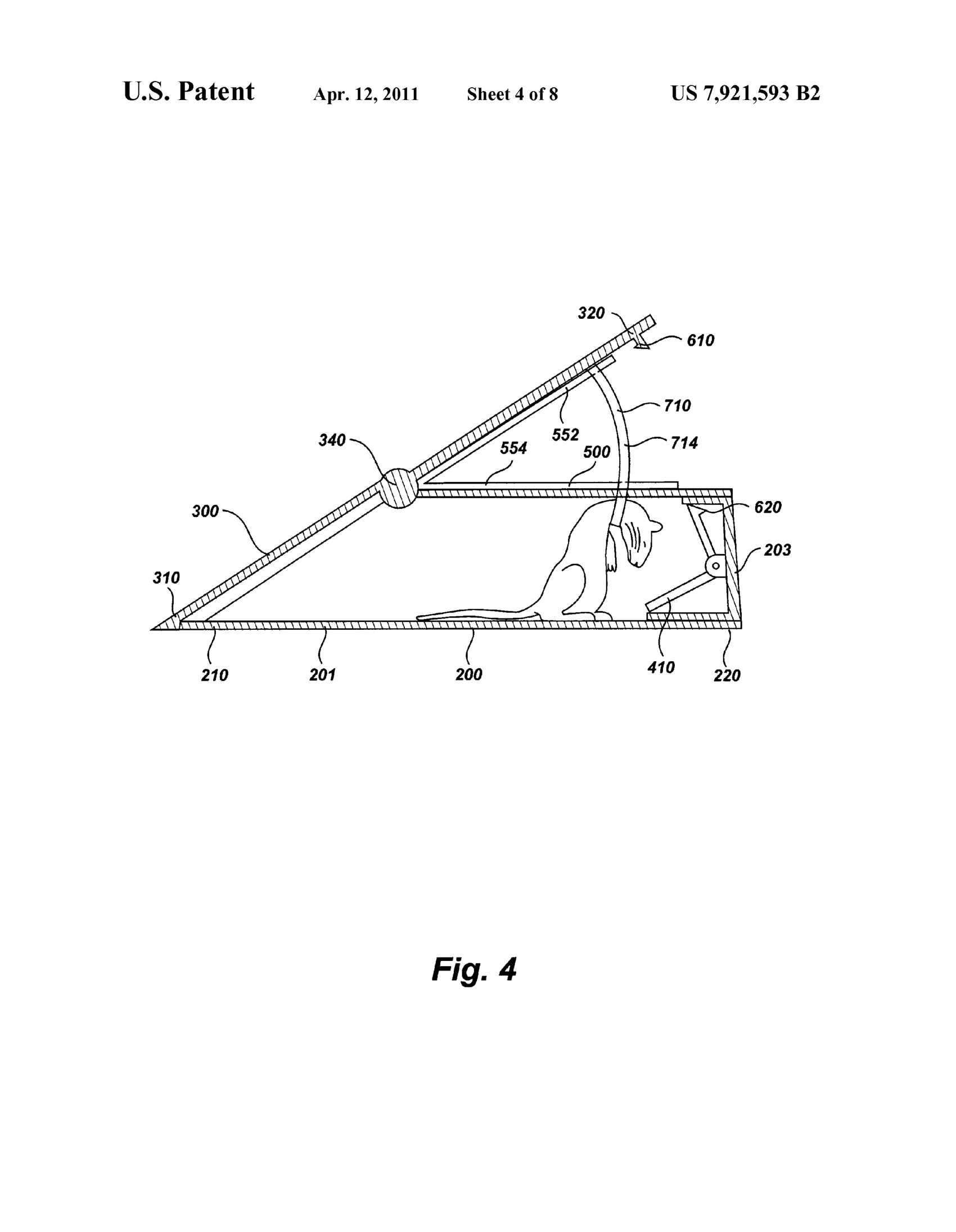

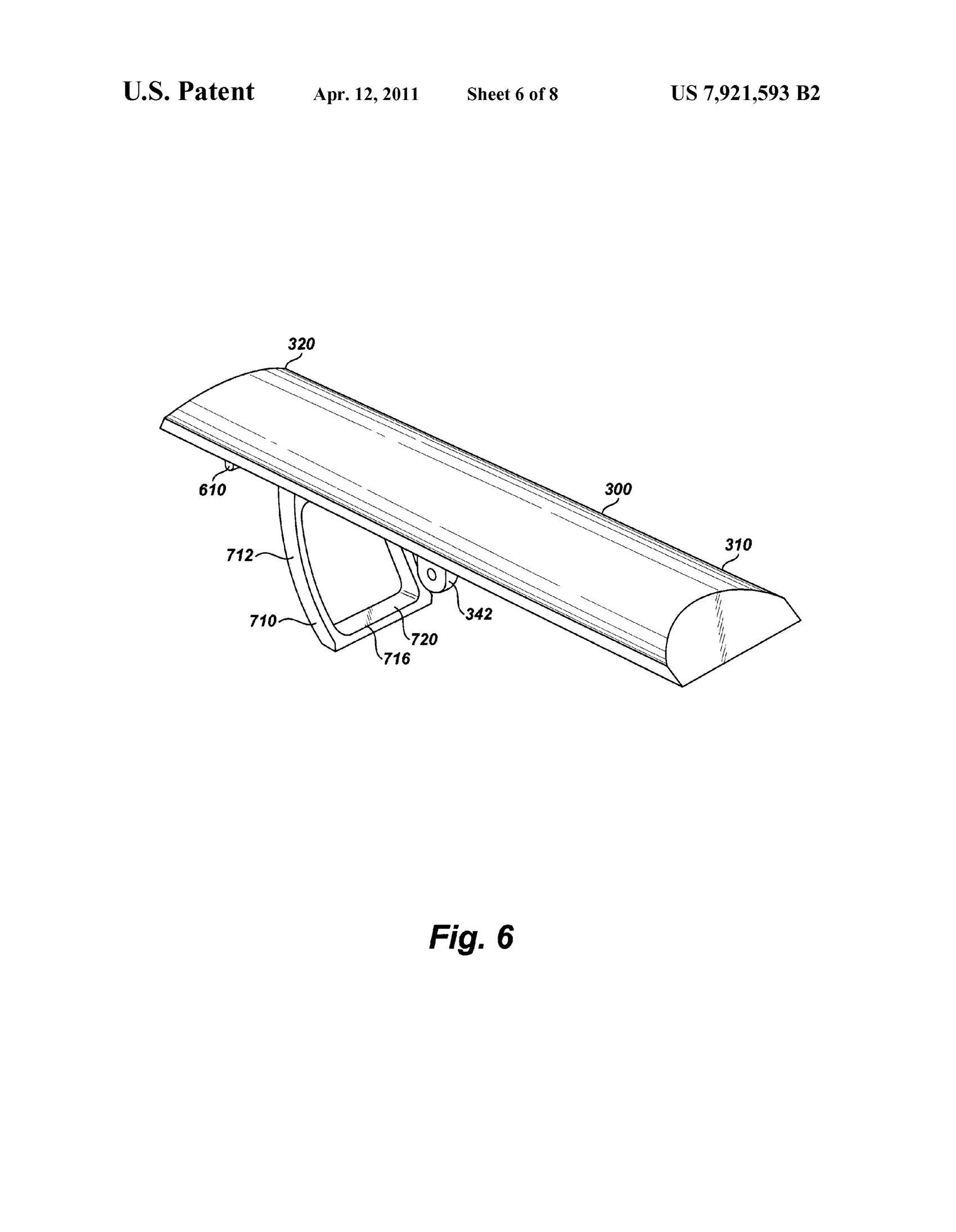

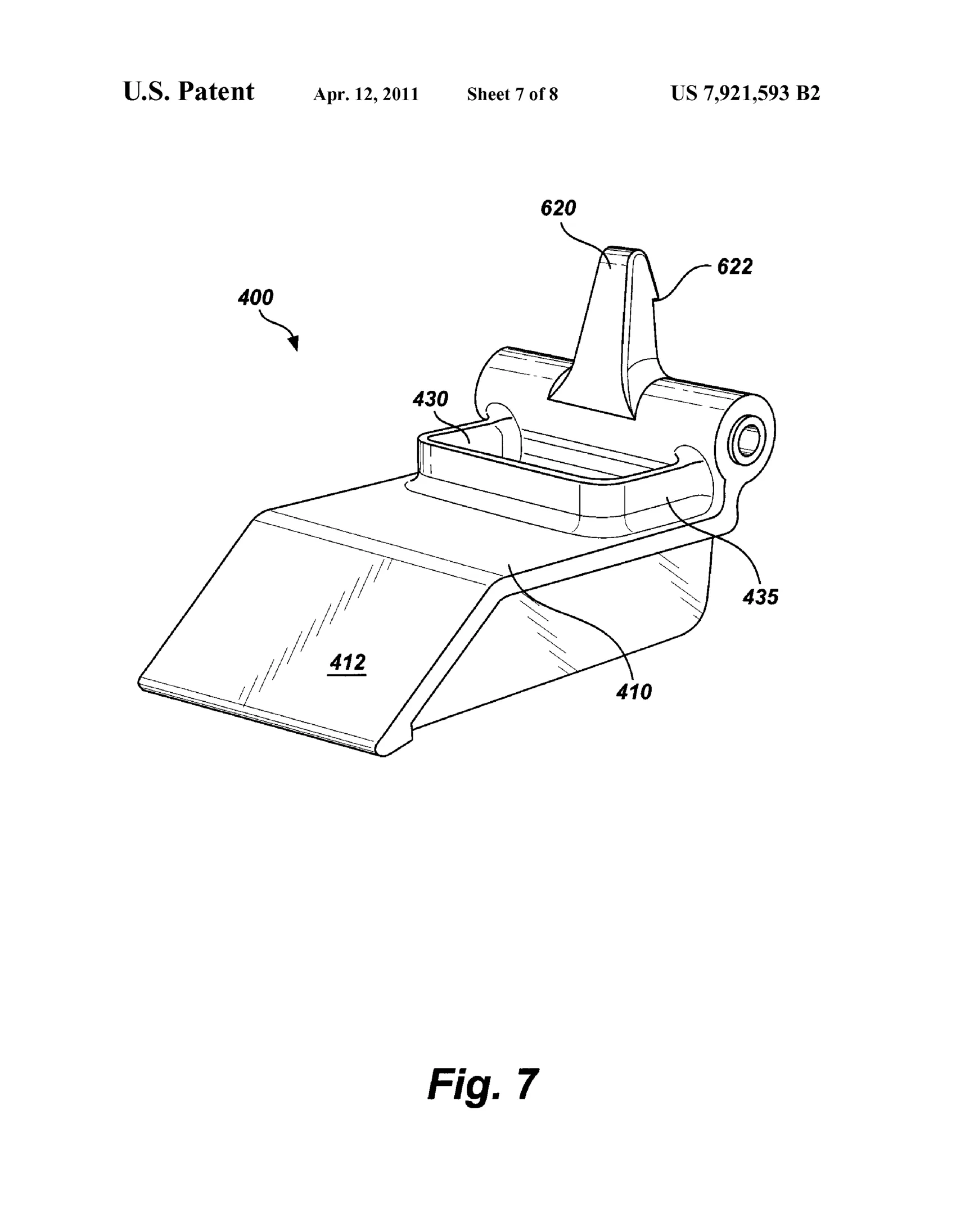

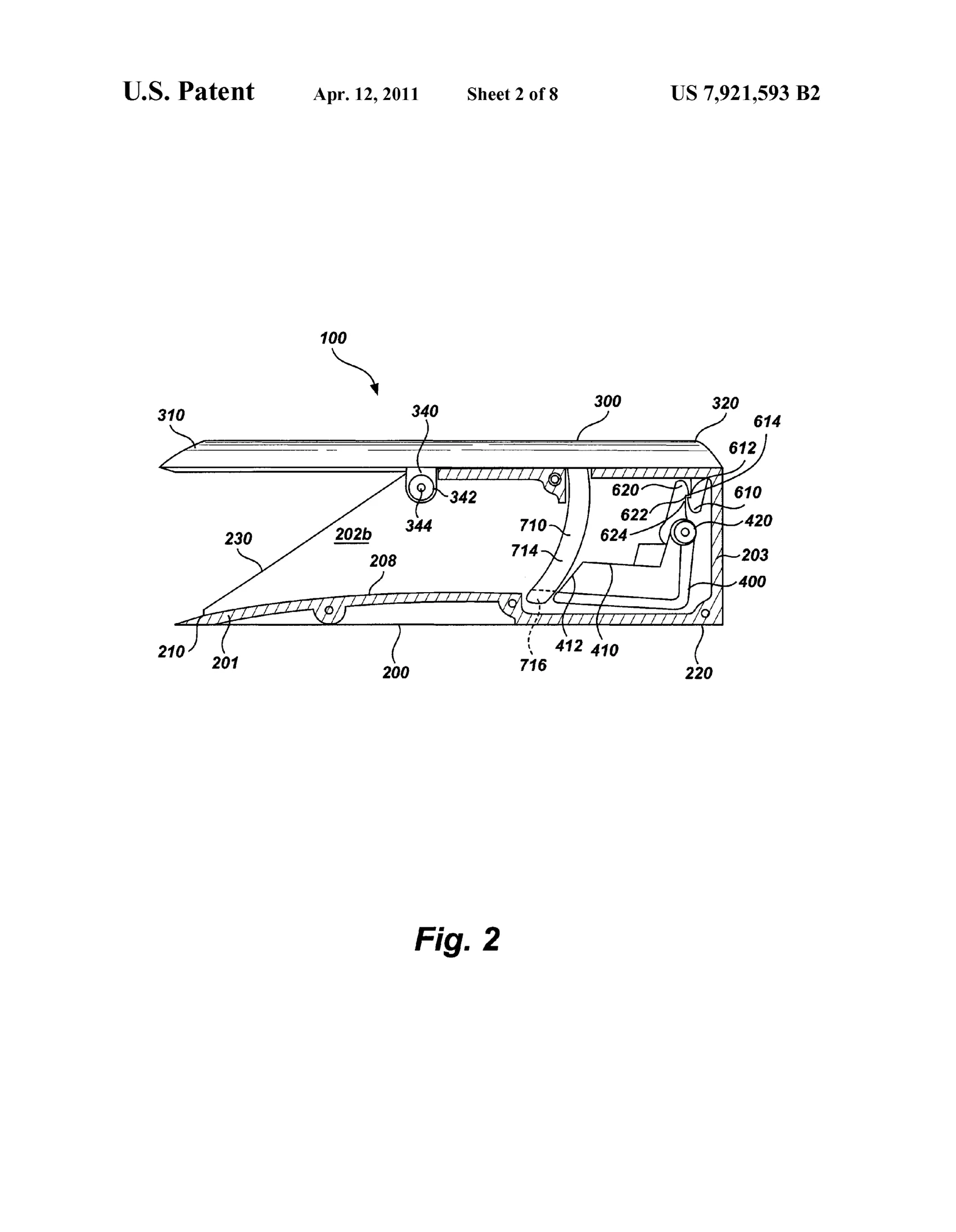

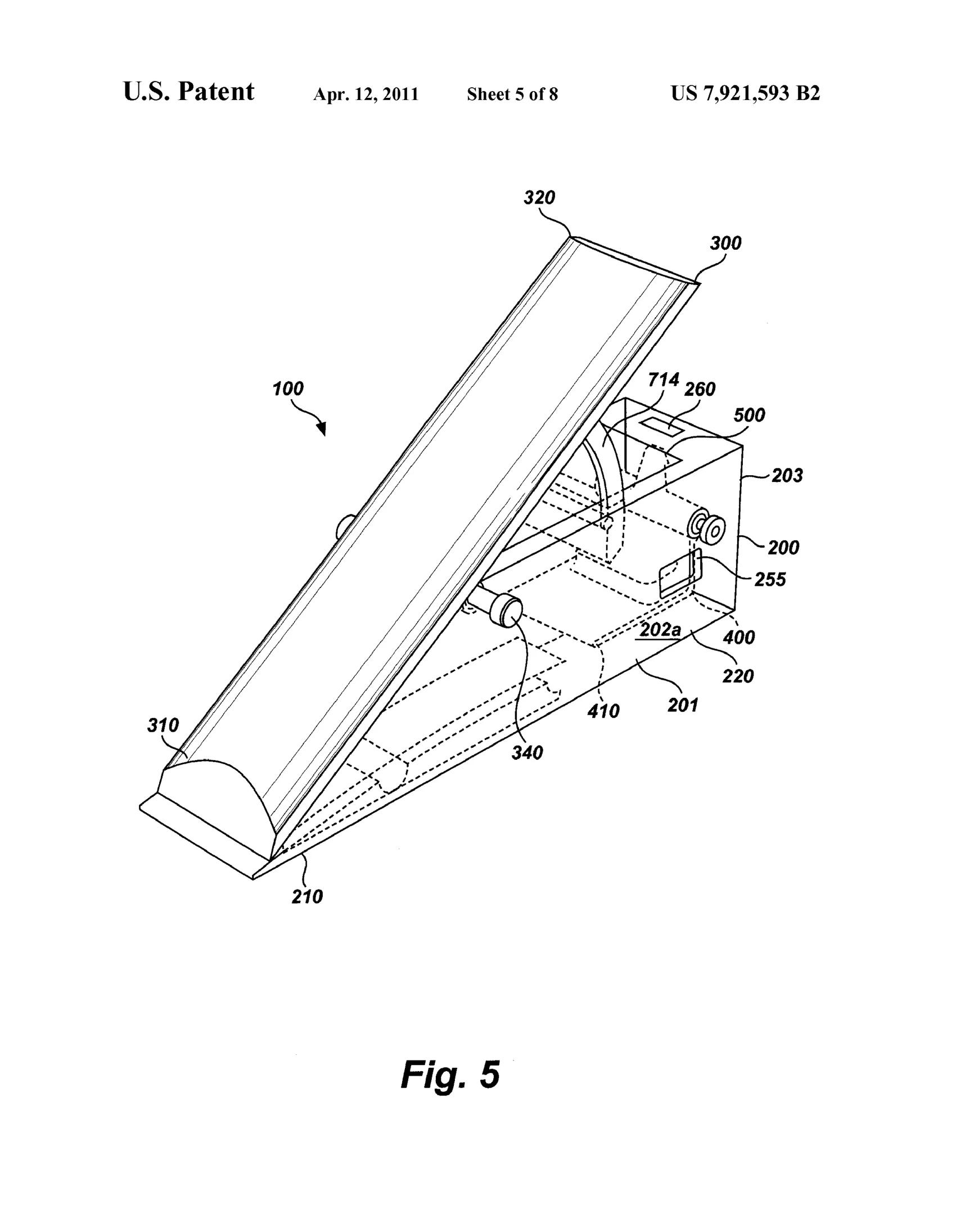

The mouse enters a wedge-shaped housing through an opening at the low end. It advances until it stands at least partially within an open snare loop and contacts a trigger at the rear of the housing. The trigger releases a spring, and the snare pivots from its open position to its closed position. The loop swings down around the mouse and pins it against the housing.

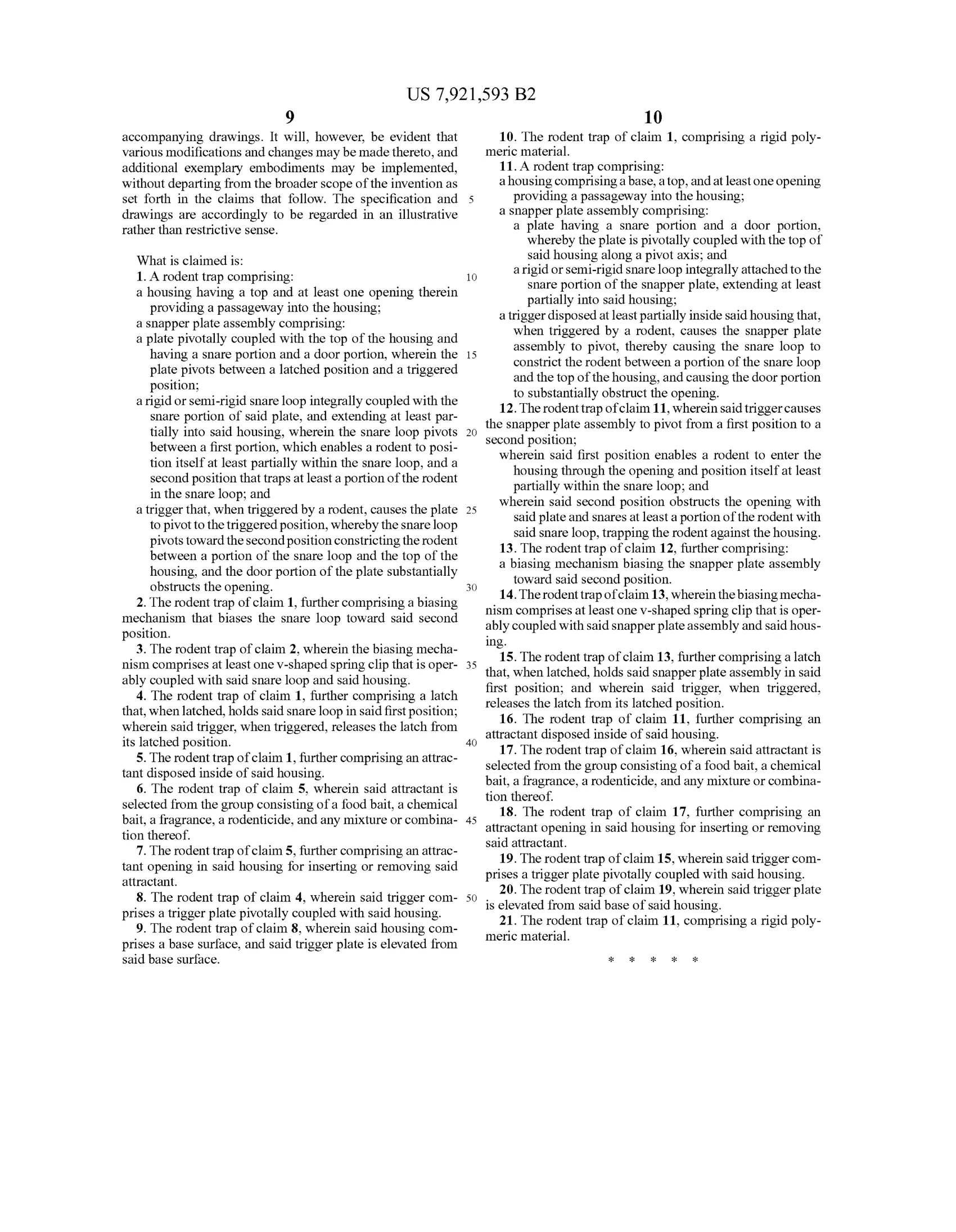

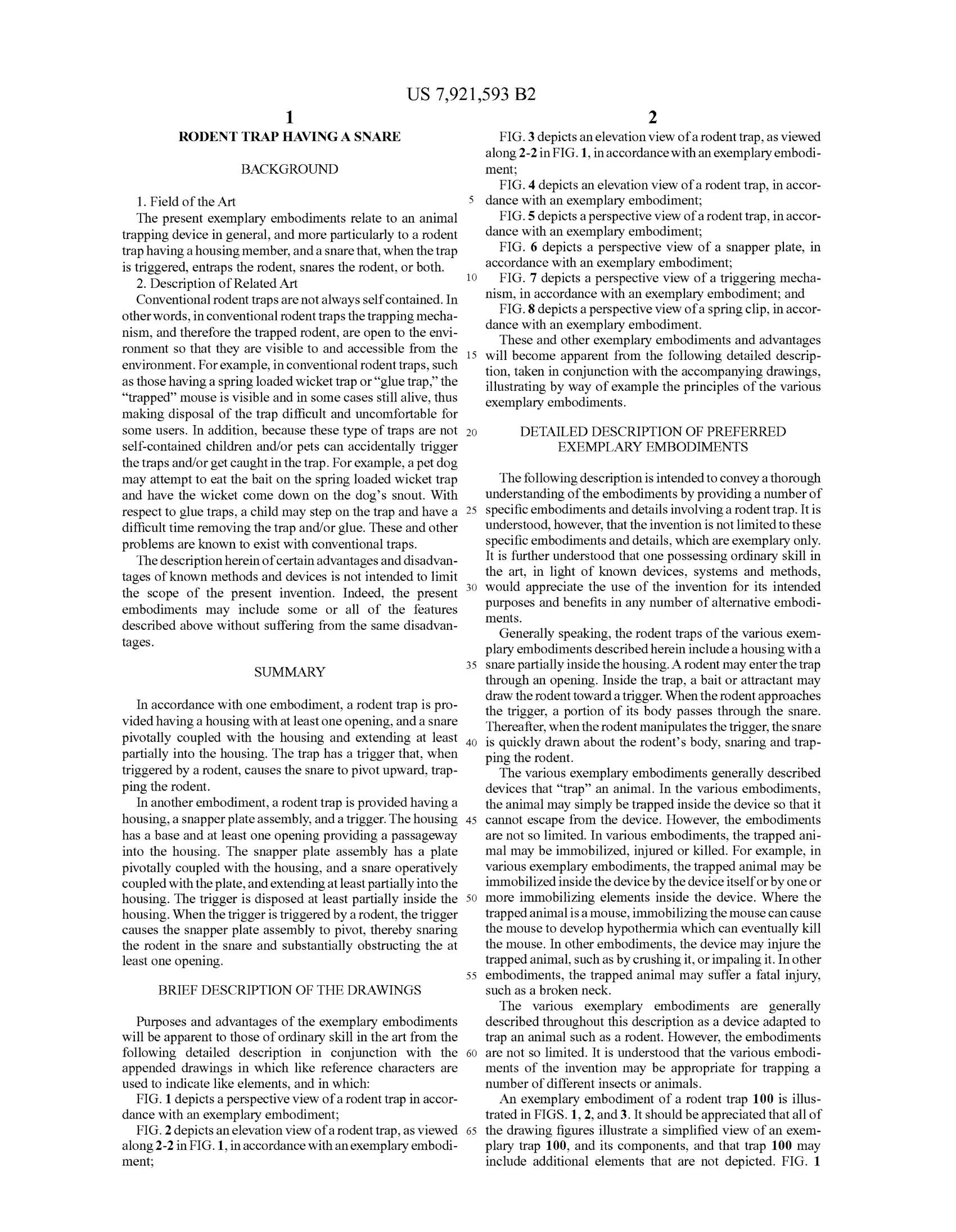

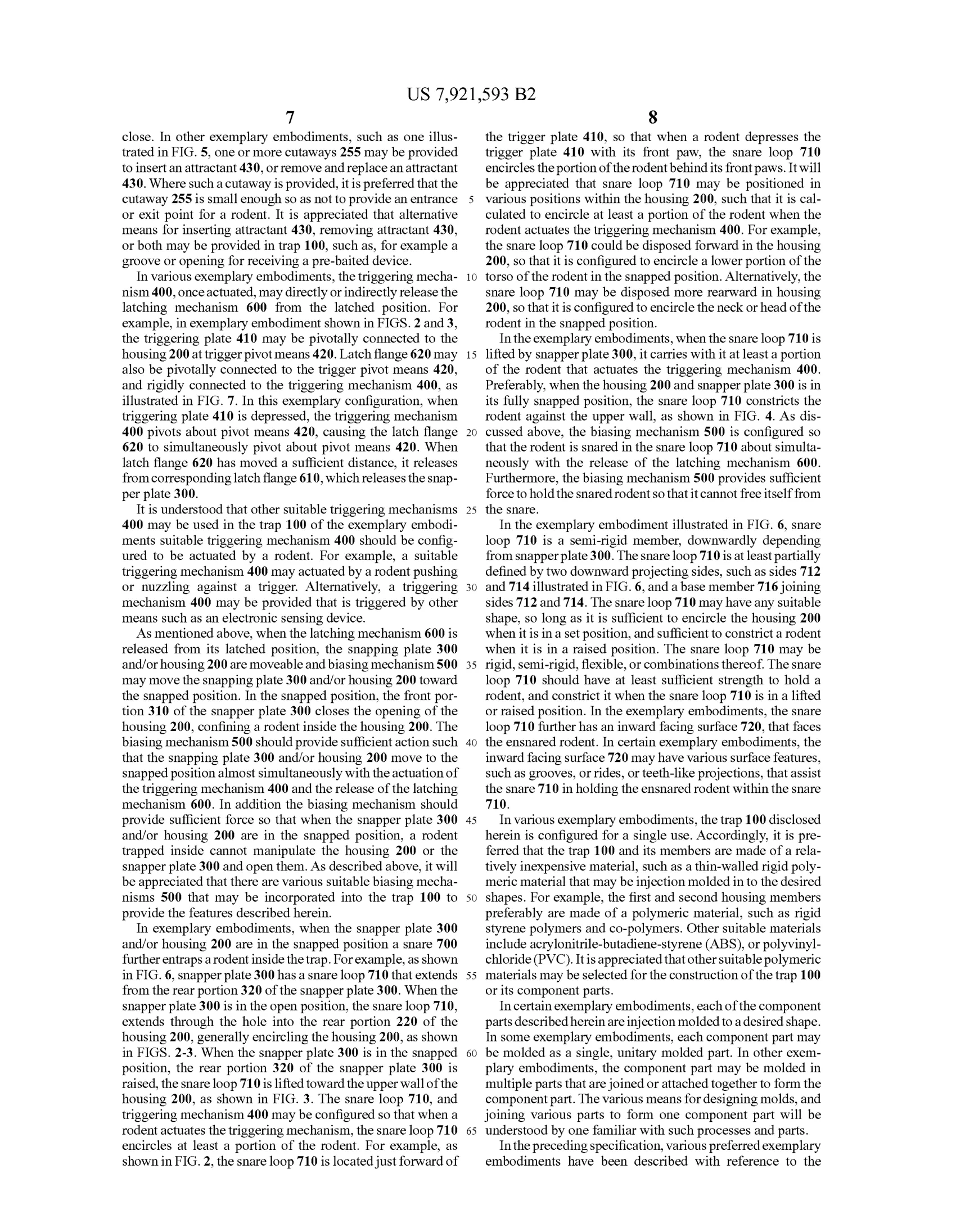

“A trigger is located inside the housing, so that when the trigger is triggered by a rodent, the snare pivots to its second position, snaring at least a portion of the rodent in the snare, and trapping the rodent against the housing.”— Peter J. Everett, from the specification

And the world did not beat a path to his door.
