SPRING PIN LOCK FOR ANIMAL TRAP

Two jaws, four coil springs, one spring pin lock.

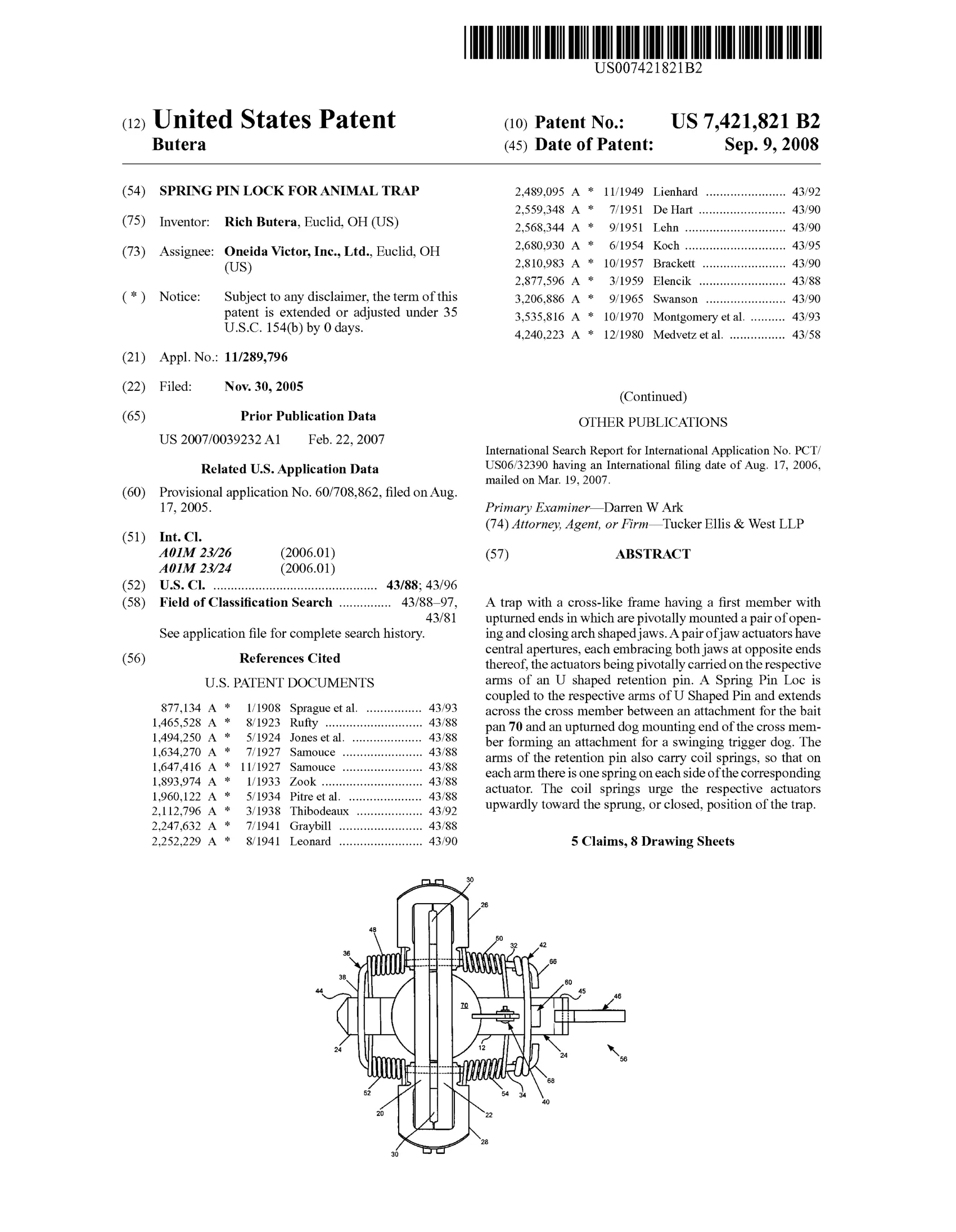

PatentUS 7,421,821
PatentedSeptember 9, 2008
InventorRich Butera
OfEuclid, OH

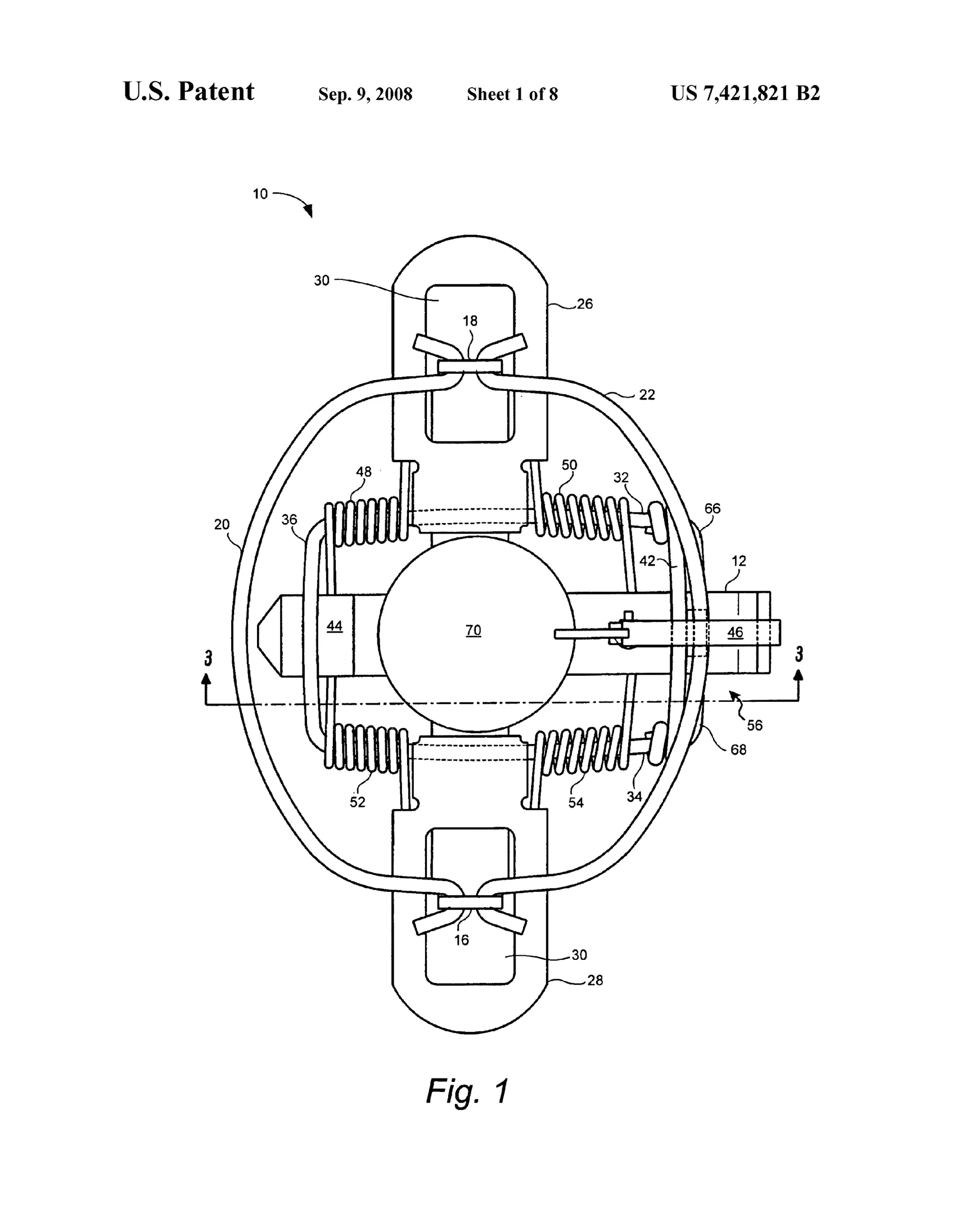

Top-down technical drawing of a cross-shaped animal trap frame showing two arch-shaped jaws at top and bottom, coil springs on each side, a central circular pan labeled 70, and a U-shaped retention pin with a spring pin lock extending across the frame to a trigger mechanism.
click to zoom

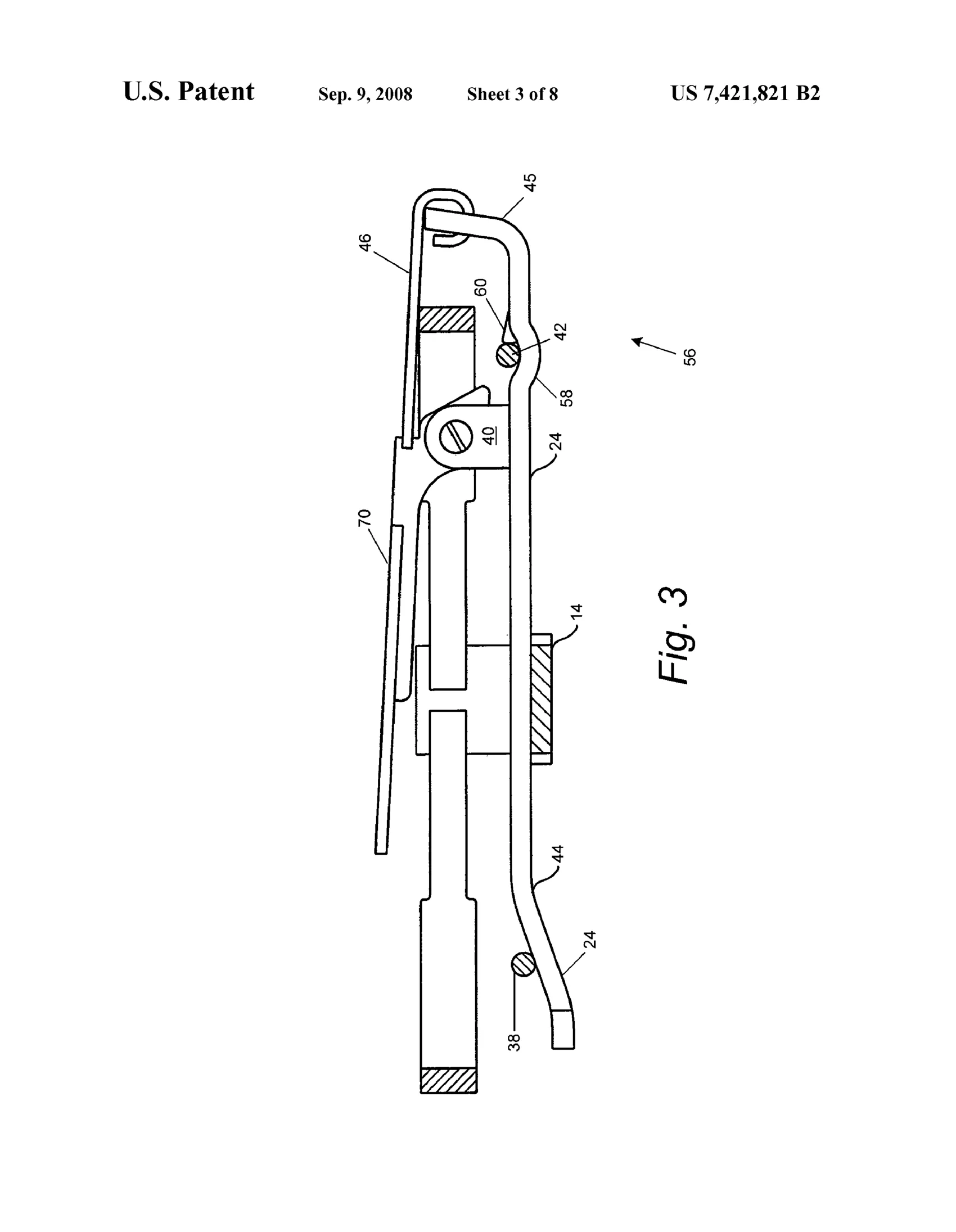

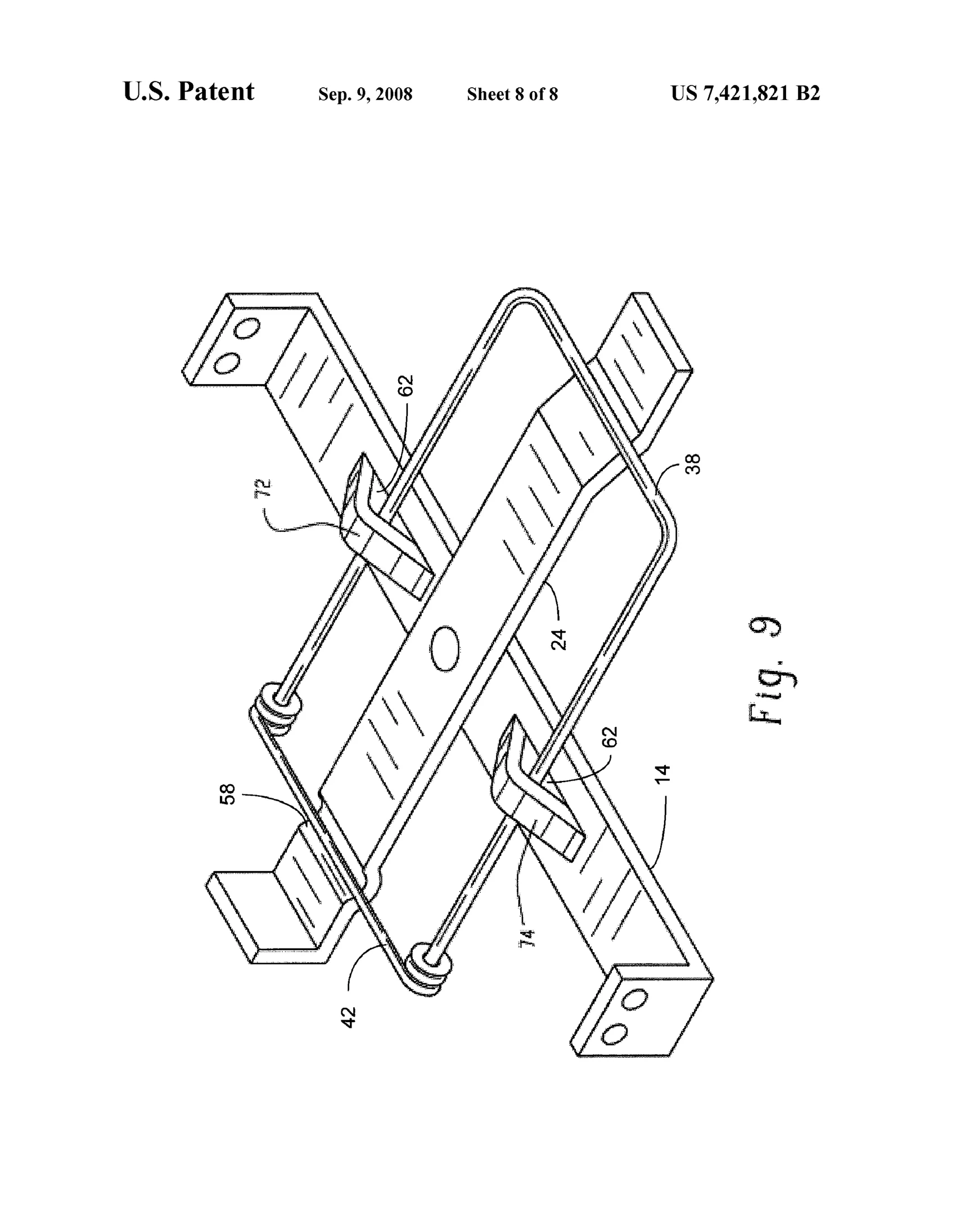

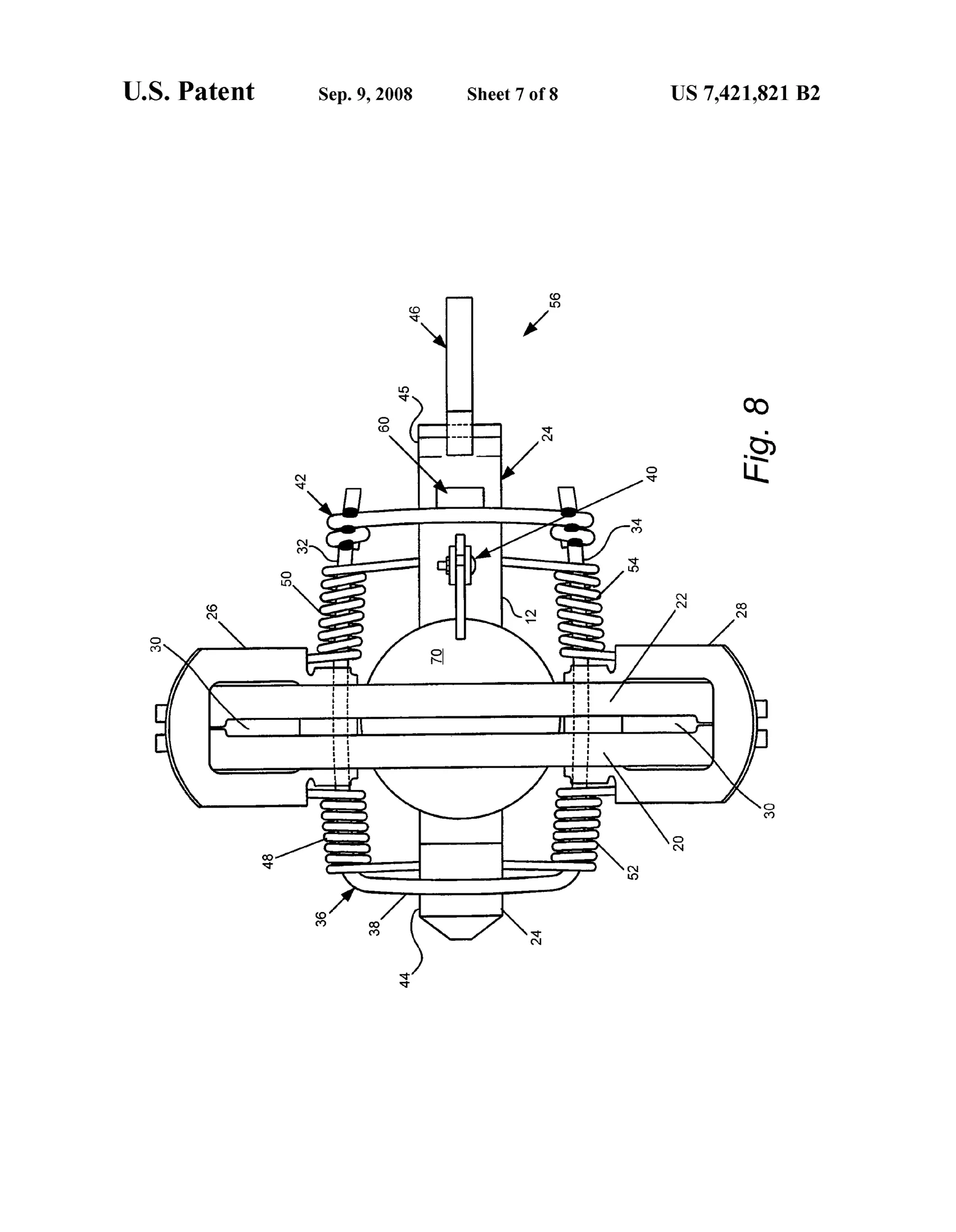

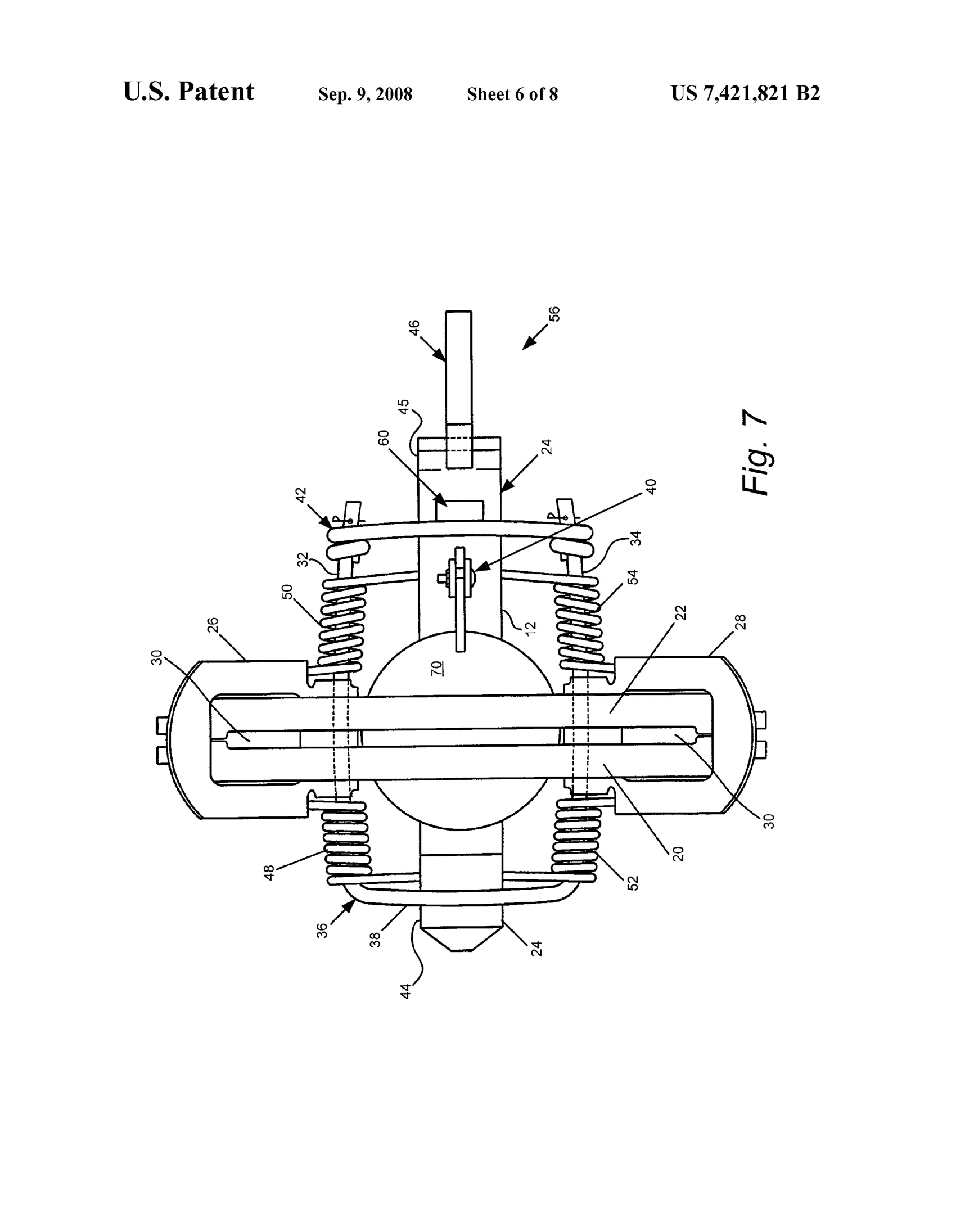

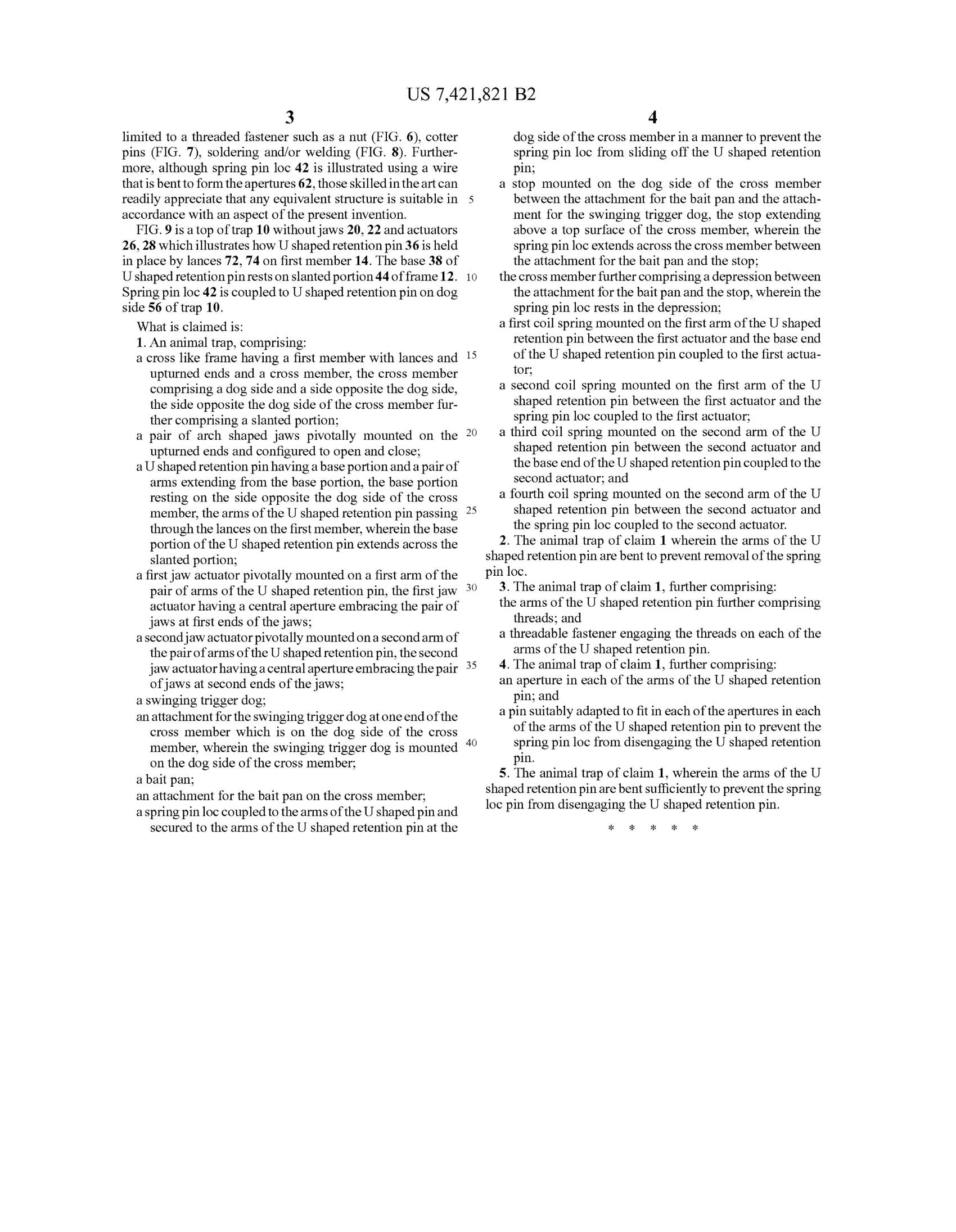

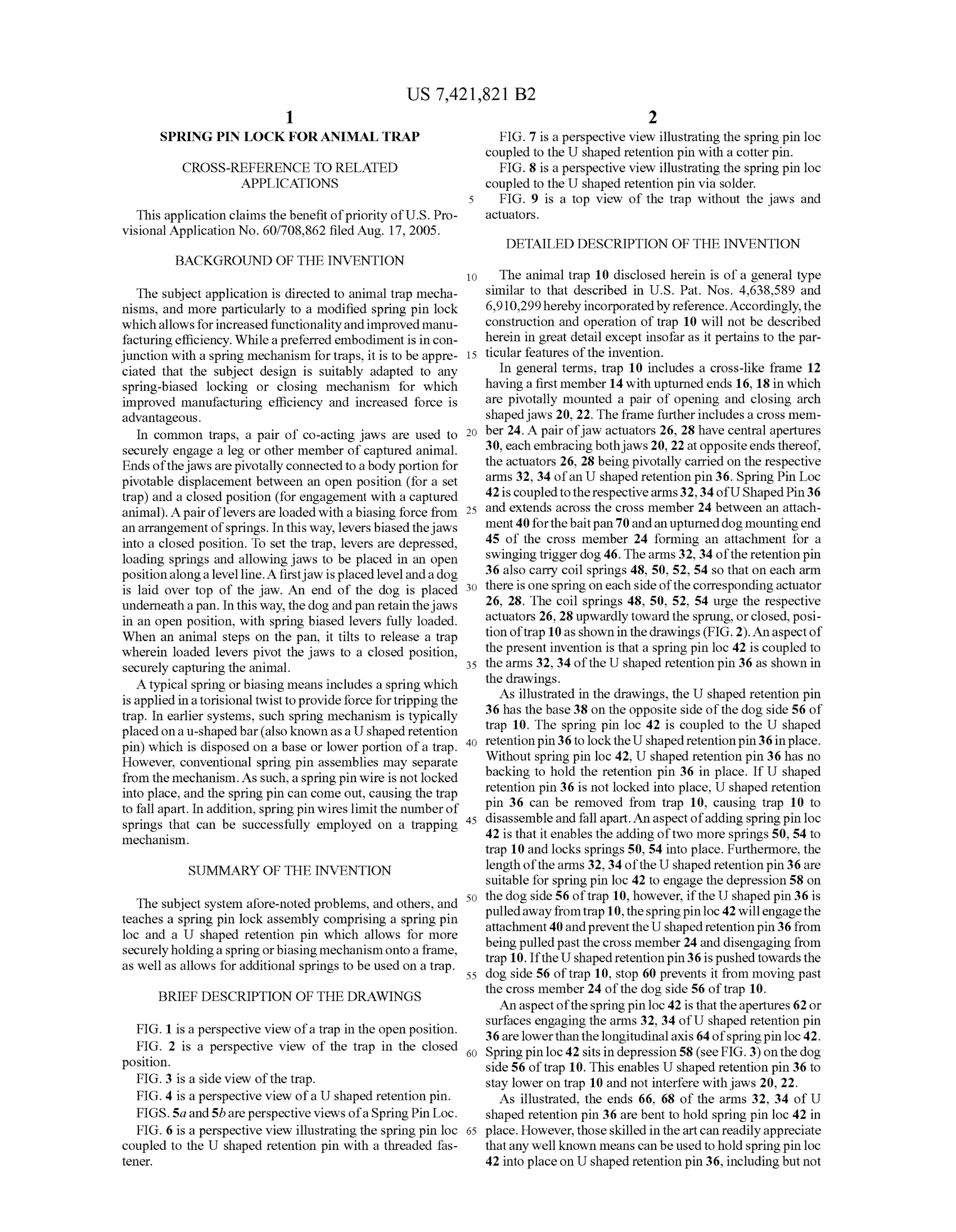

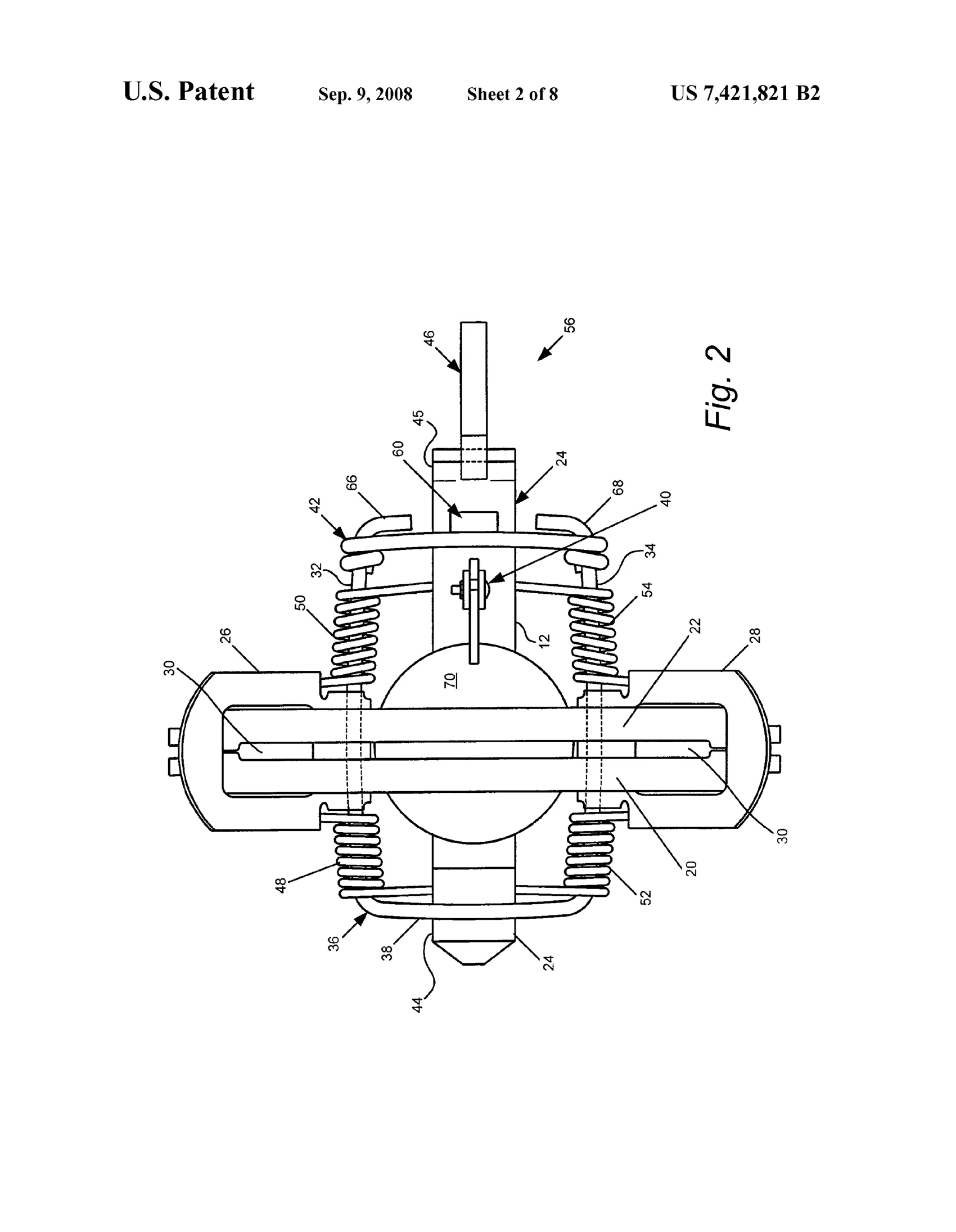

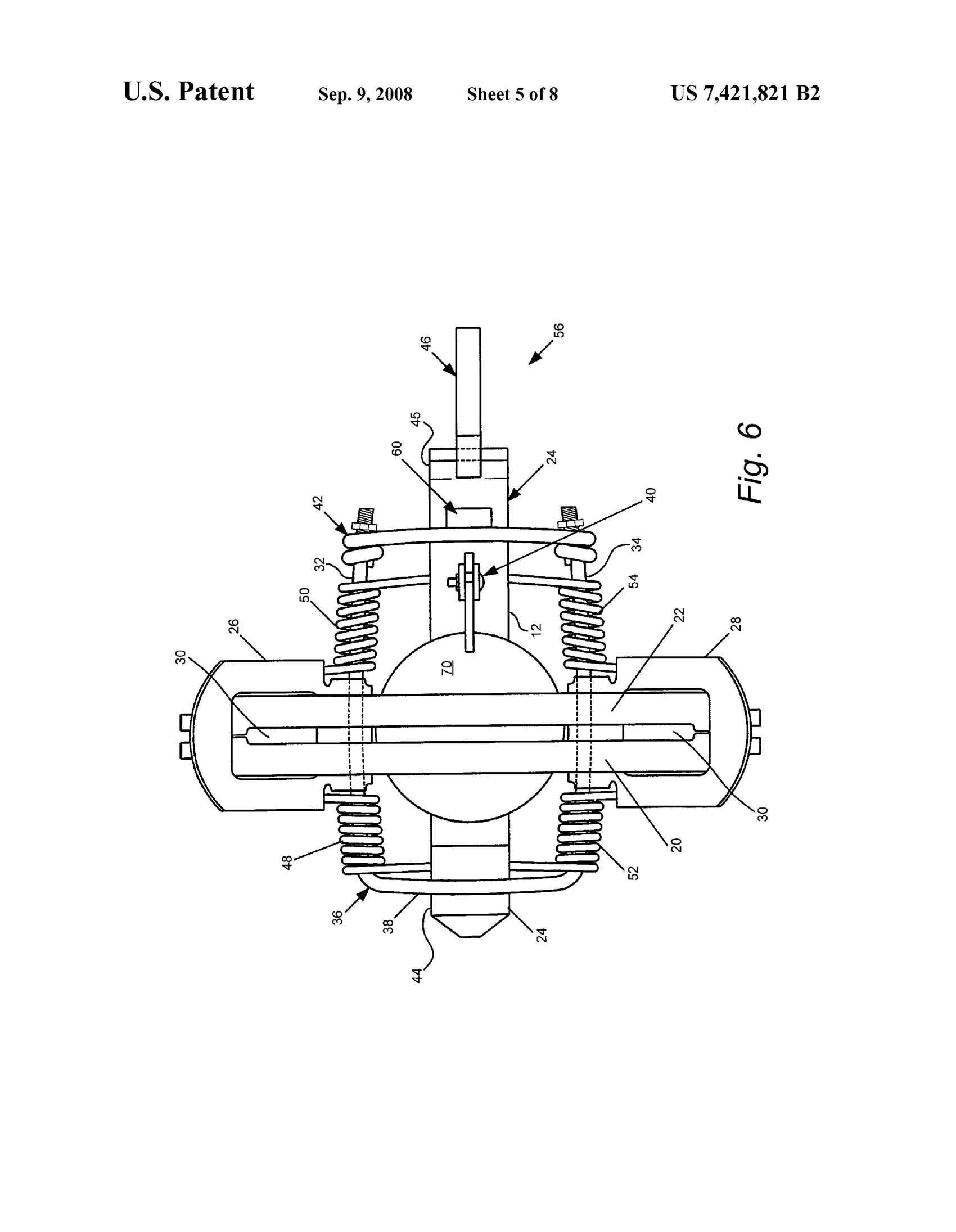

Sheet 1Sheet 2Sheet 3Sheet 4Sheet 5Sheet 6Sheet 7Sheet 8Sheet 9Sheet 10Sheet 11Sheet 12

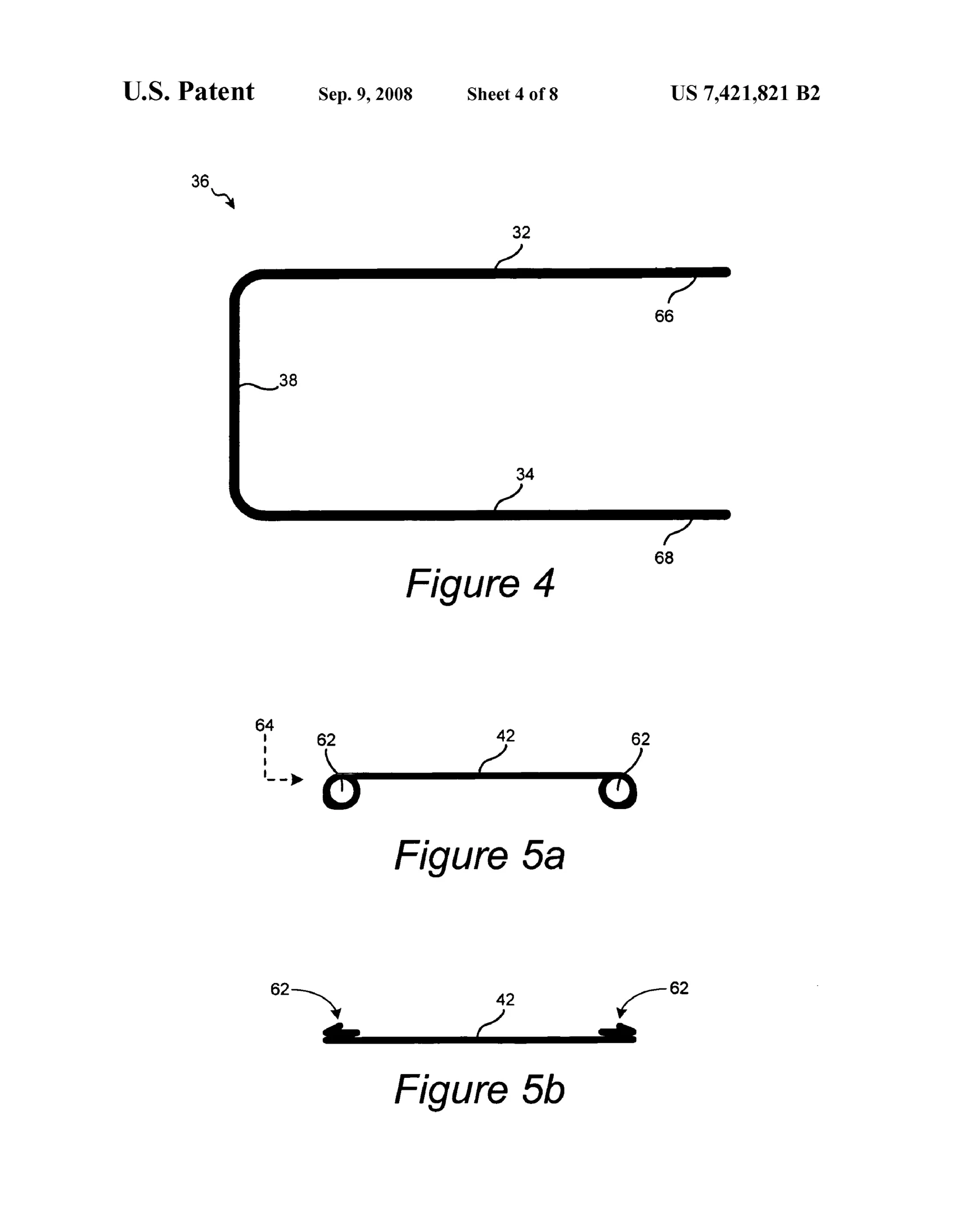

The animal steps on a central bait pan mounted on a cross-shaped frame. This releases a swinging trigger dog, freeing a pair of arch-shaped jaws pivotally mounted in the upturned ends of the frame. Four coil springs, seated on the arms of a U-shaped retention pin, drive a pair of jaw actuators upward. The actuators embrace both jaws and force them to the closed position, while the spring pin lock holds the retention pin in place across the frame throughout.

“The coil springs urge the respective actuators upwardly toward the sprung, or closed, position of the trap.”— Rich Butera, from the specification

And the world did not beat a path to his door.
