ADVANCED POWERED TRIGGER SYSTEM "SUPPORT MECHANISM" FOR CAGE AND OR CORRAL-TYPE ANIMAL TRAPS

A cage trap whose spring latch is an advanced powered trigger system.

PatentUS 20,110,061,288
PatentedMarch 17, 2011
InventorKirk Alan DeKalb
OfDoerun, GA

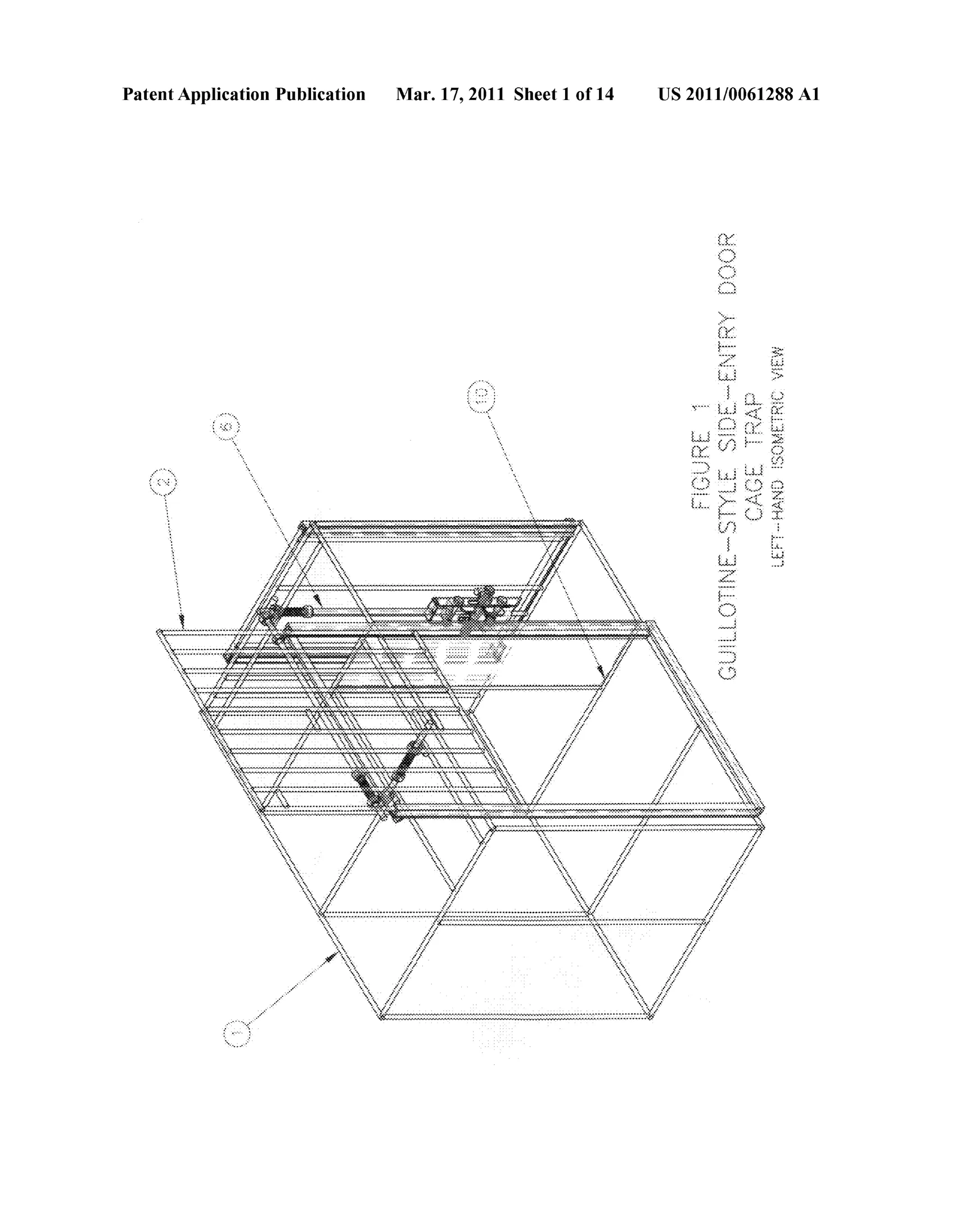

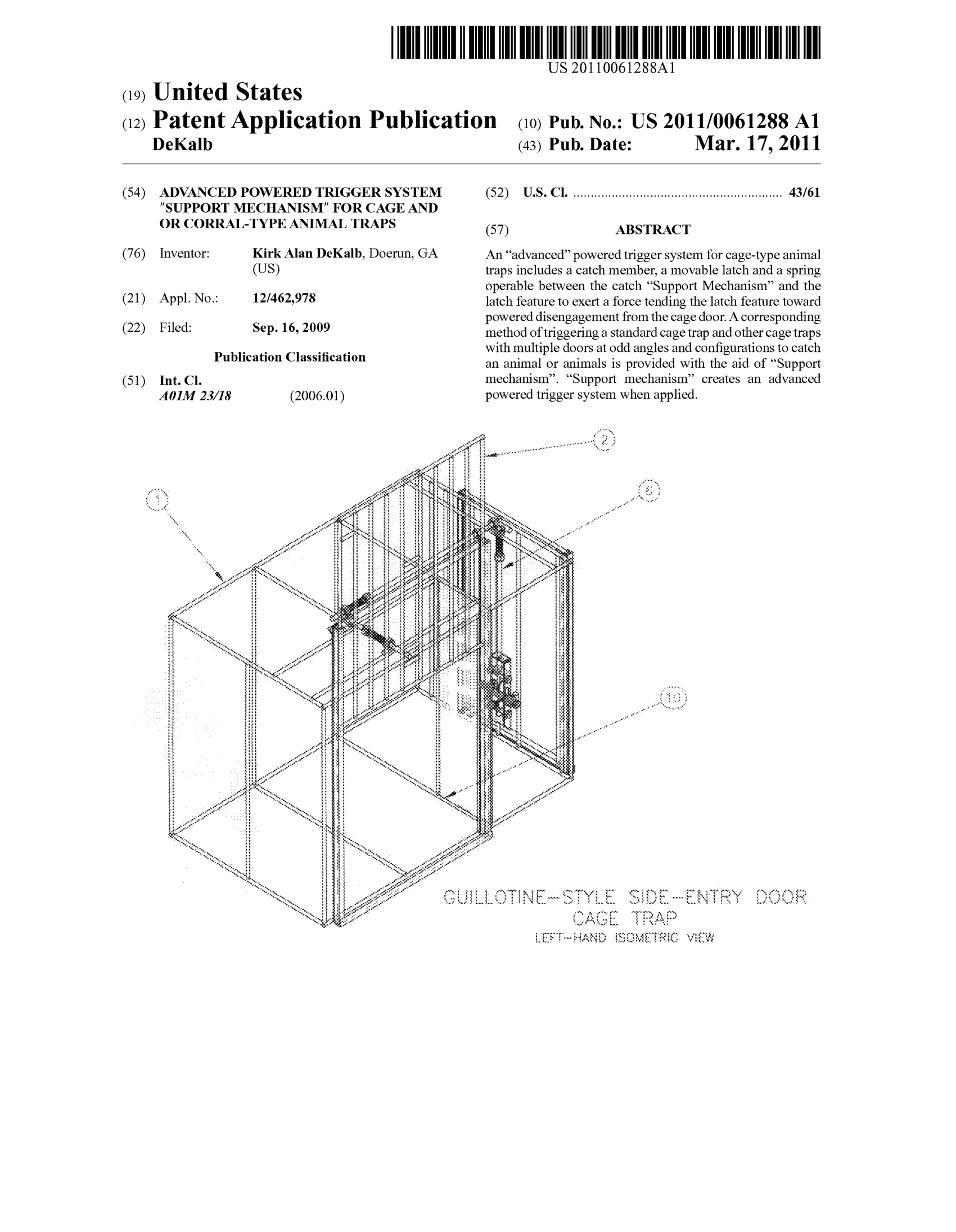

An isometric line drawing of a rectangular wire-frame cage trap with a guillotine-style sliding door on one side, showing a spring-loaded latch and support mechanism mounted at the top corner along with connecting release rods leading toward a bait pedal.
click to zoom

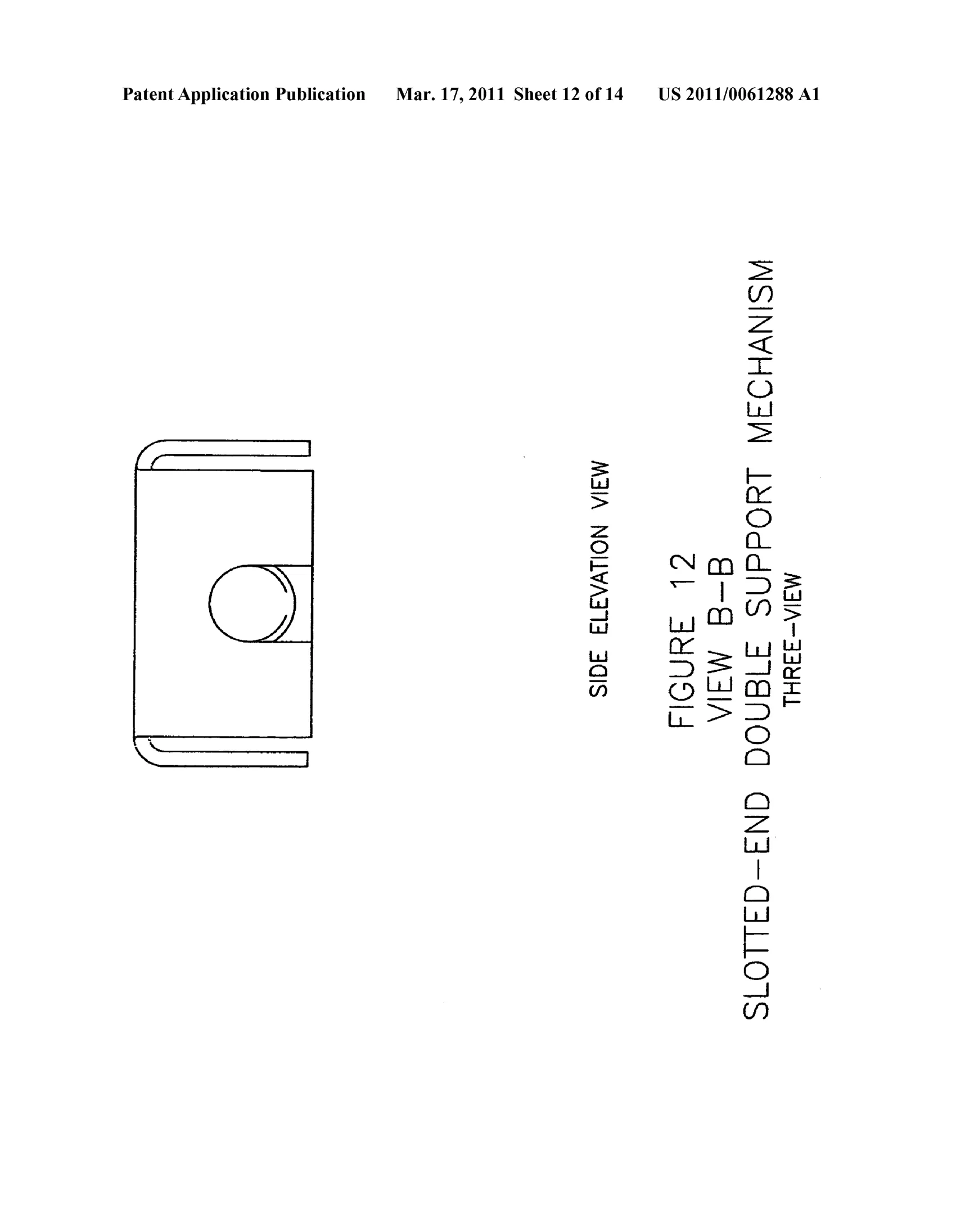

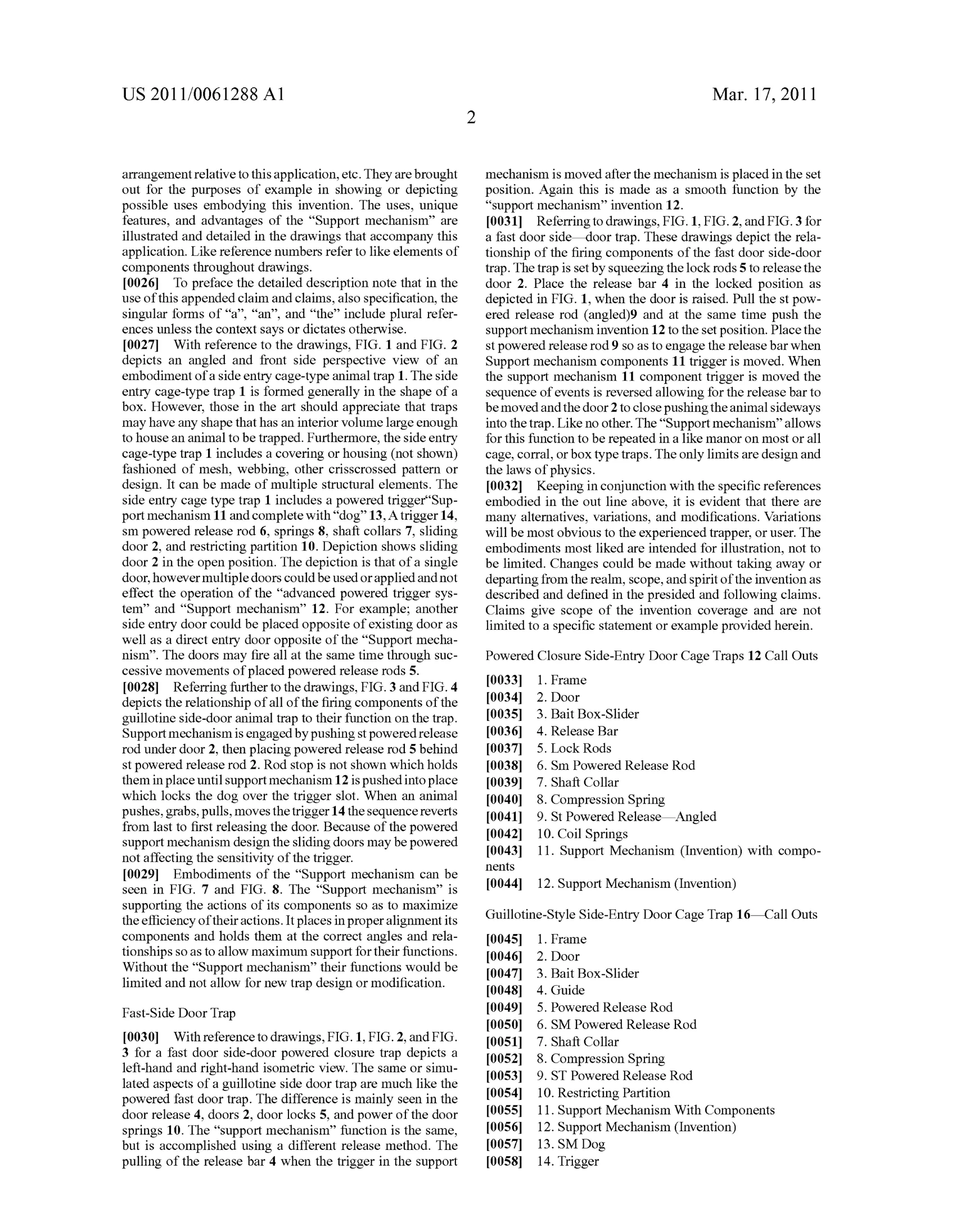

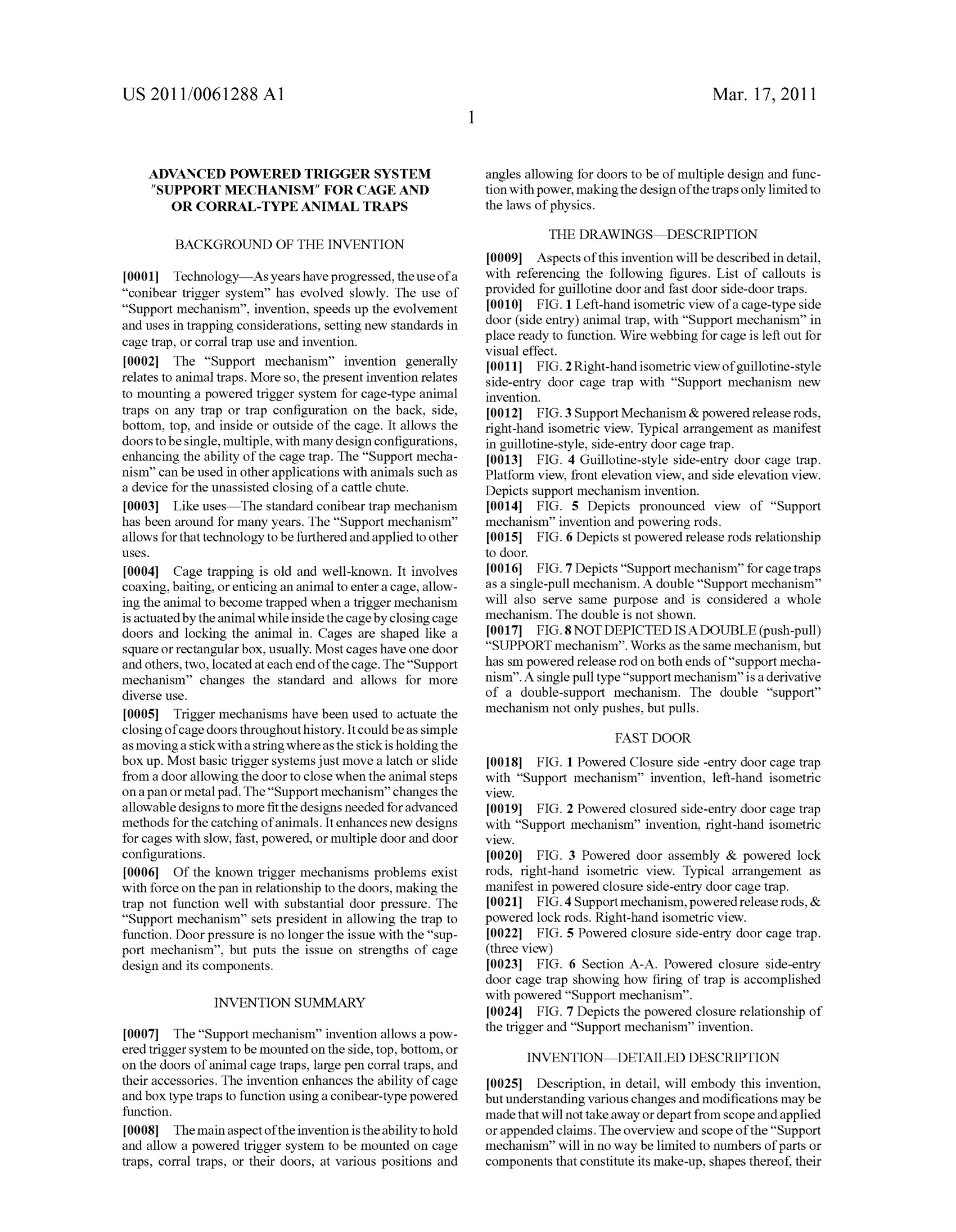

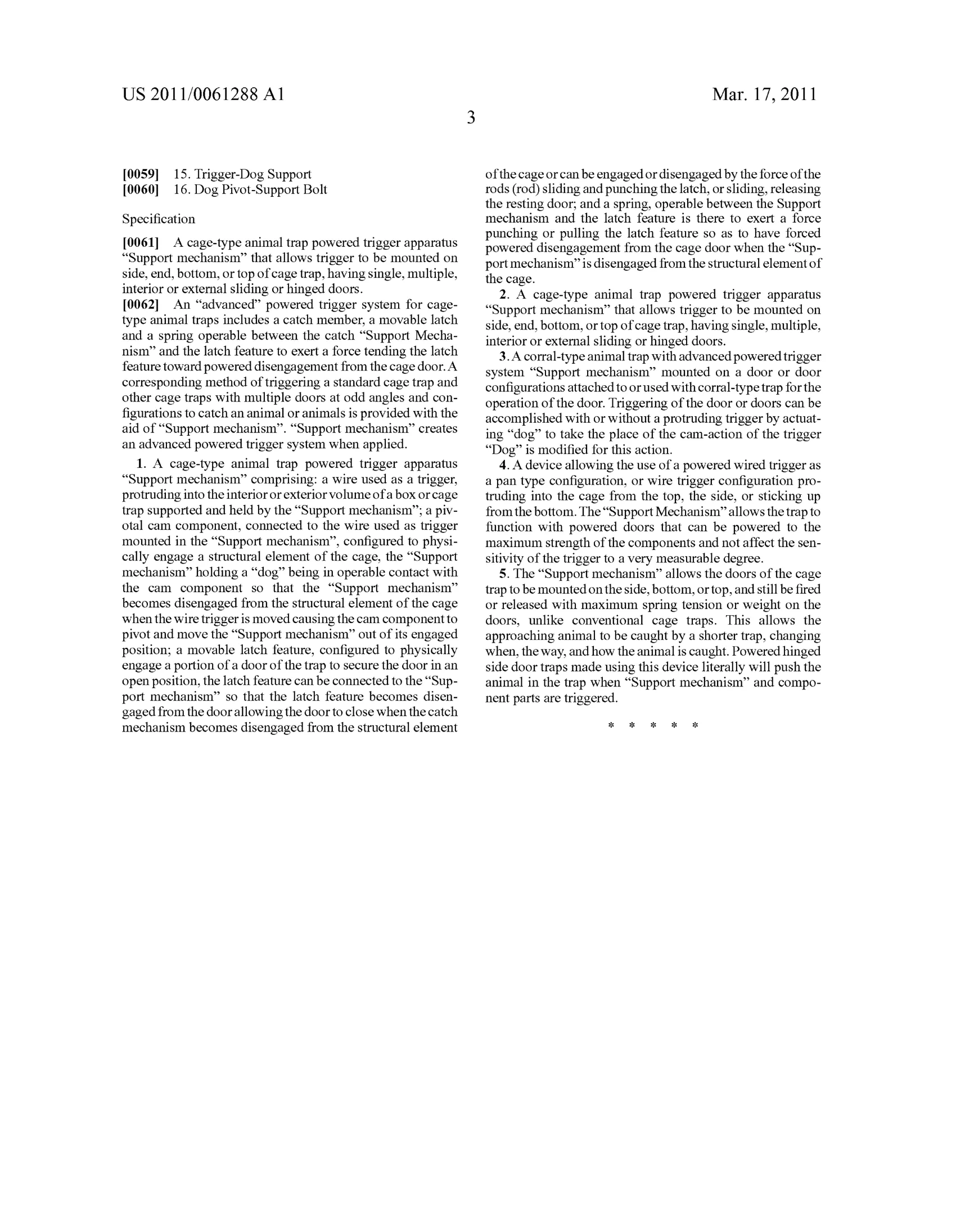

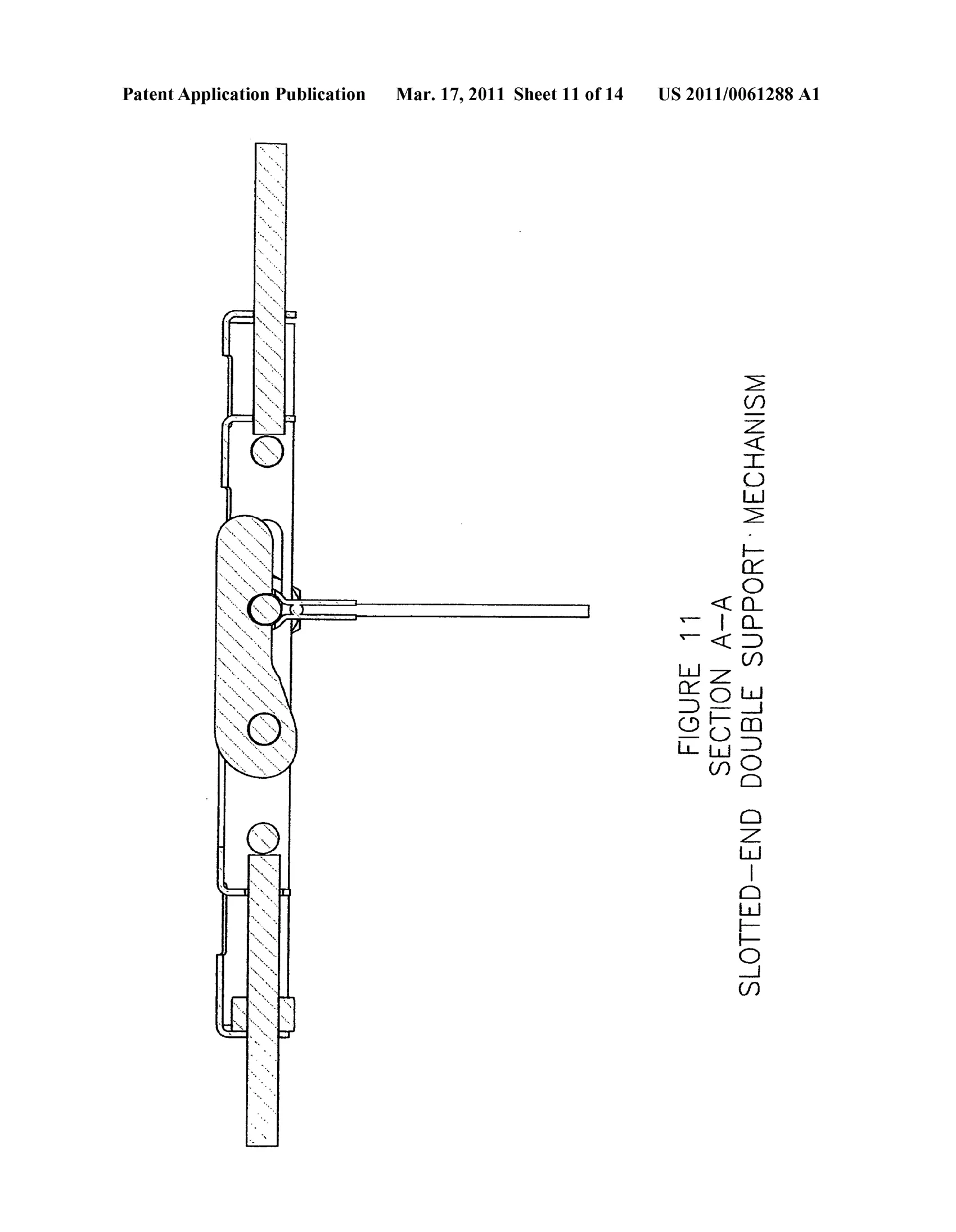

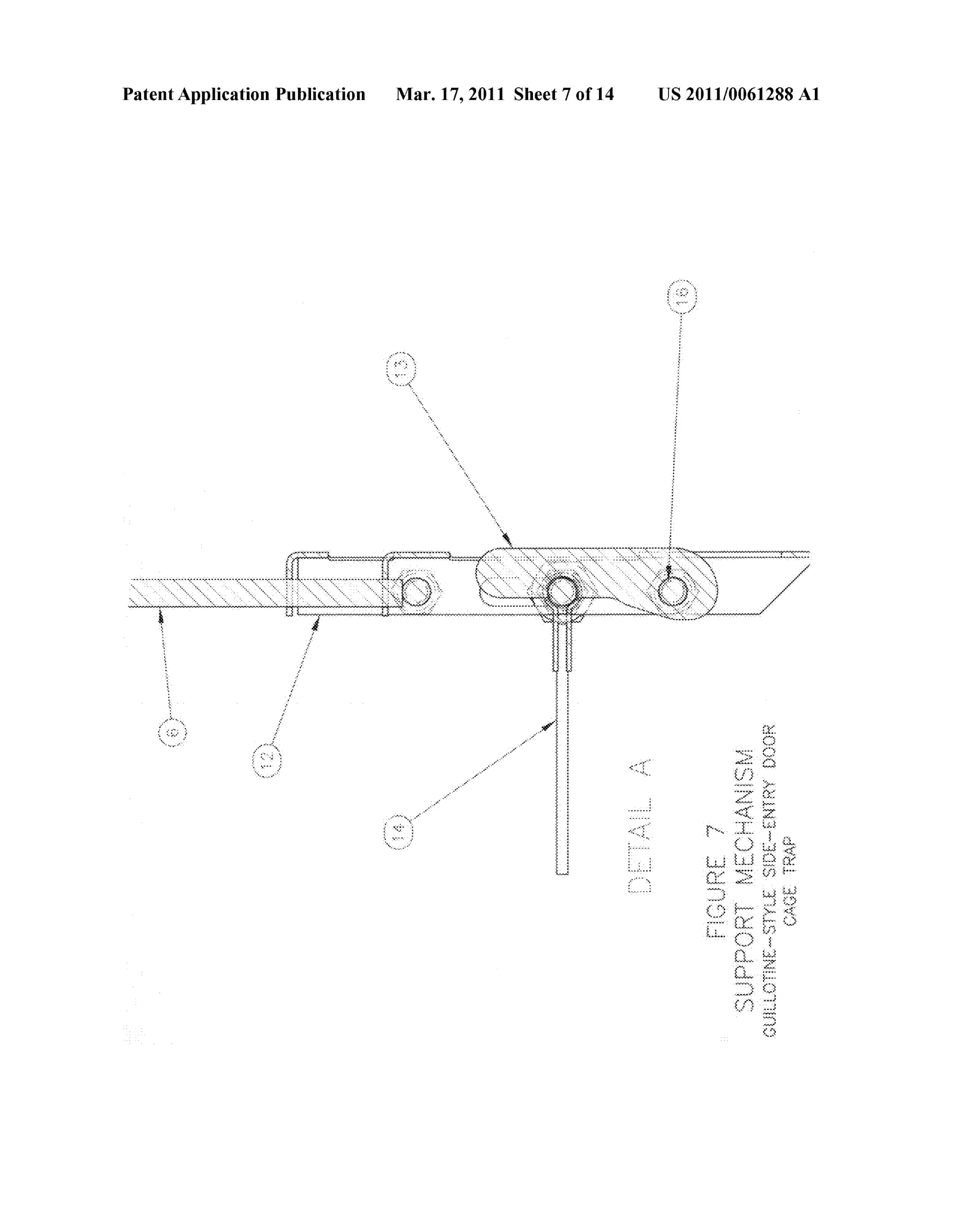

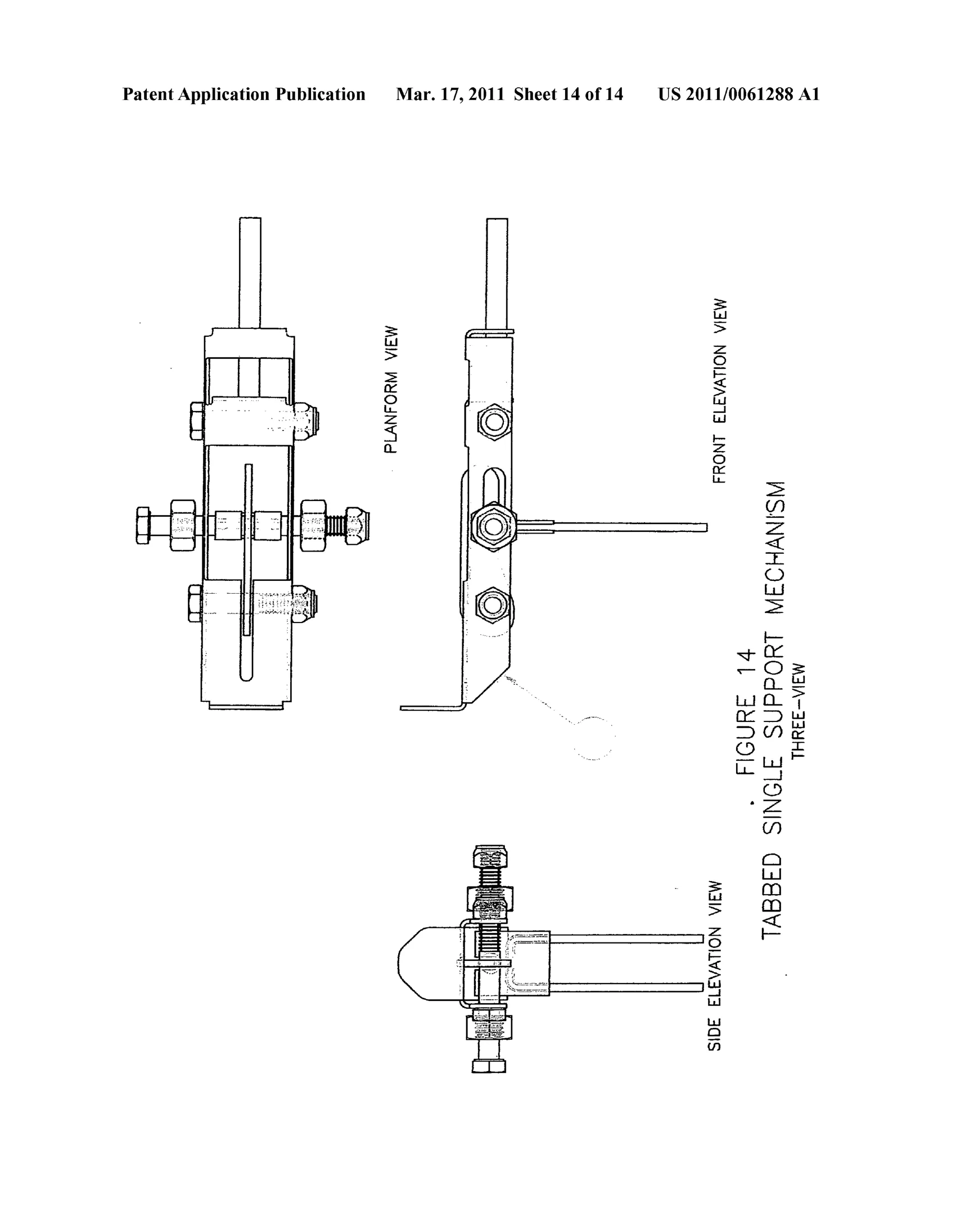

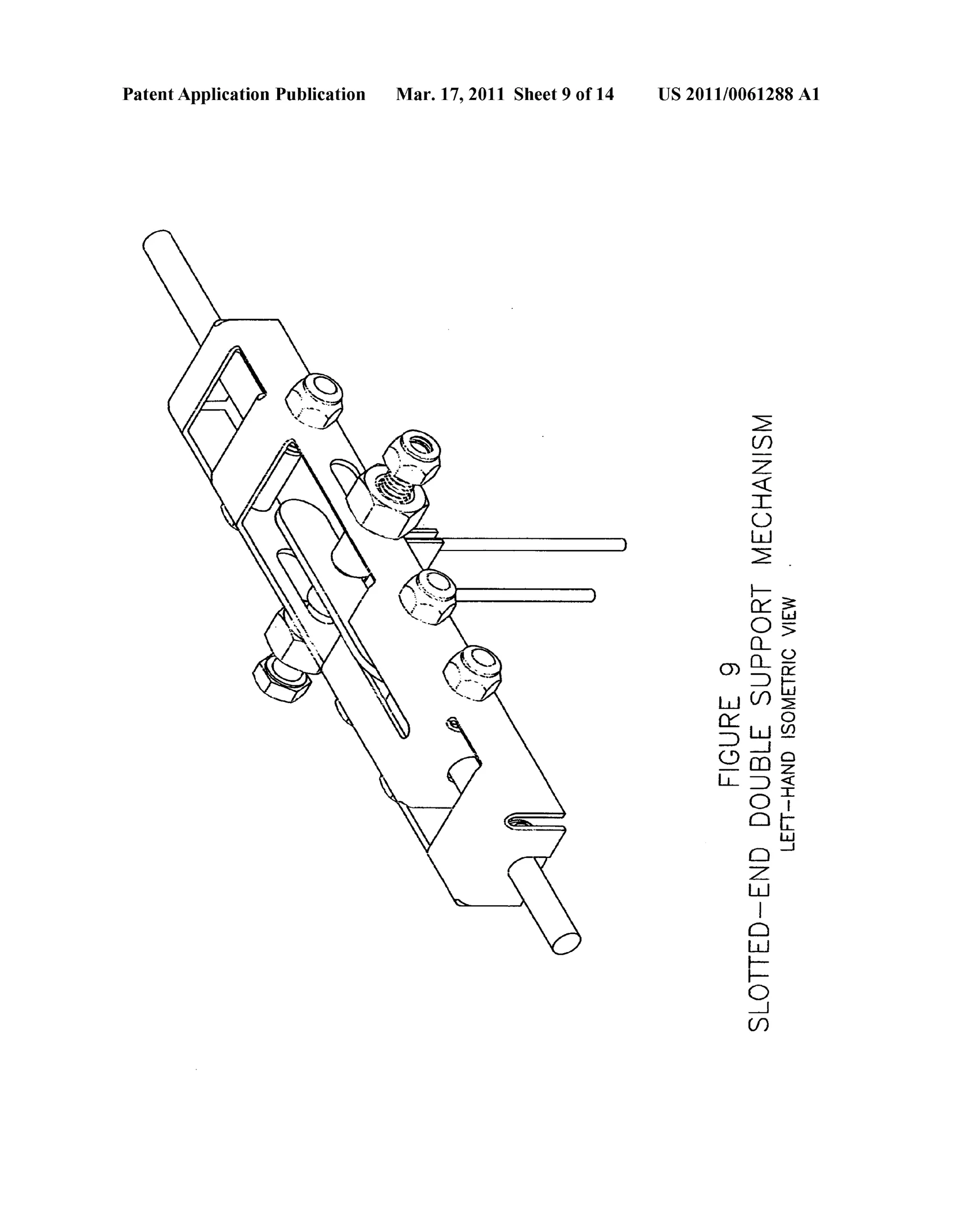

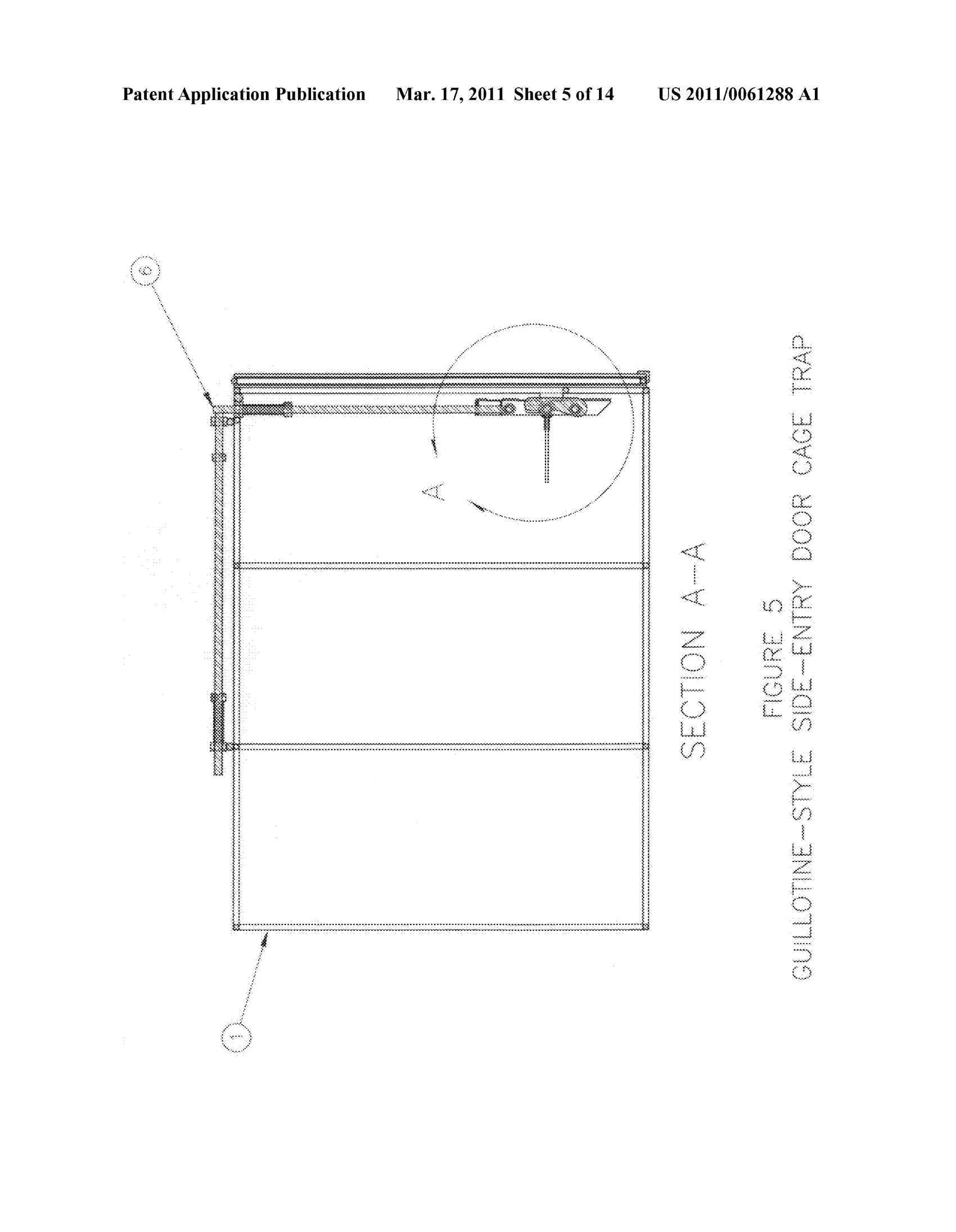

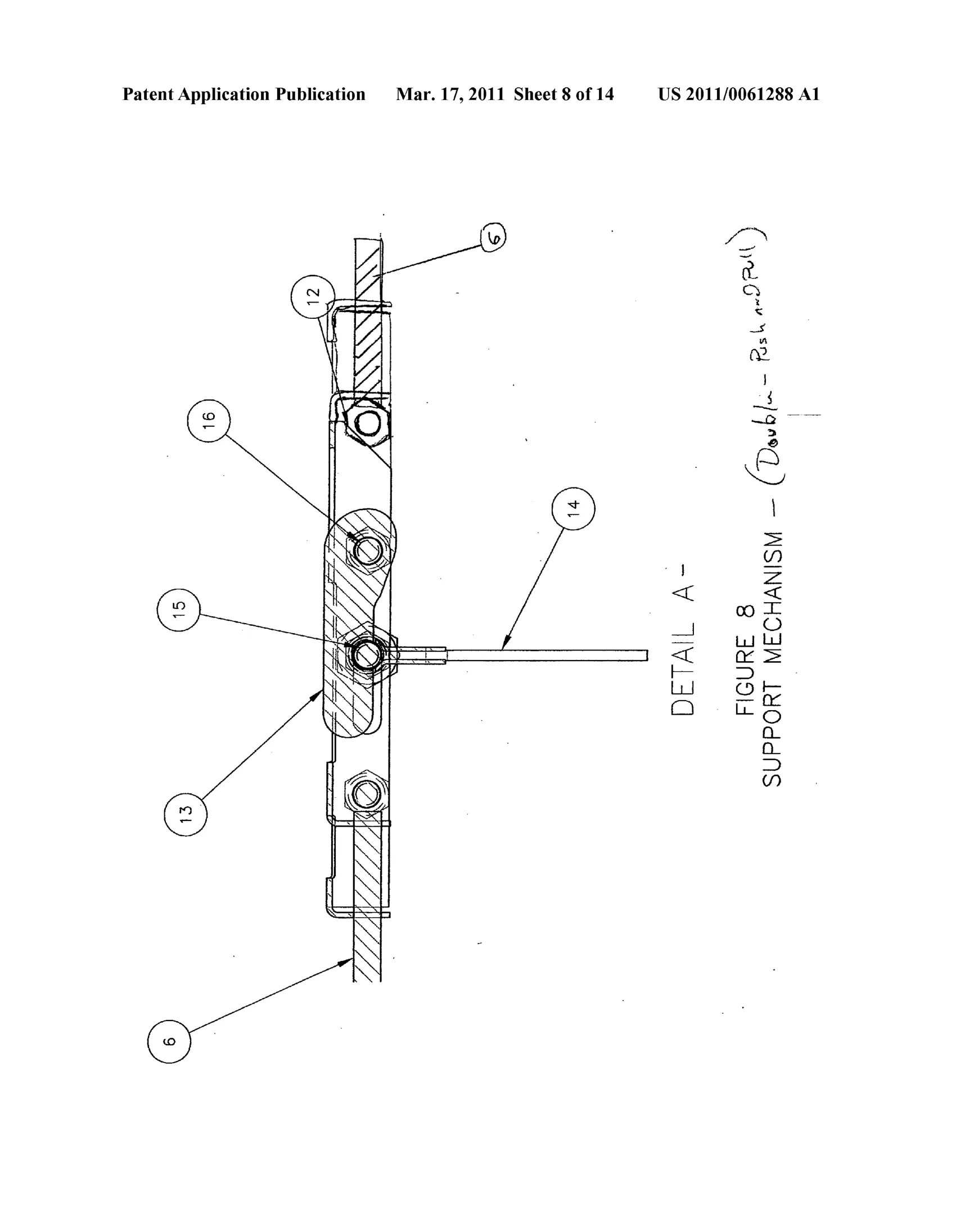

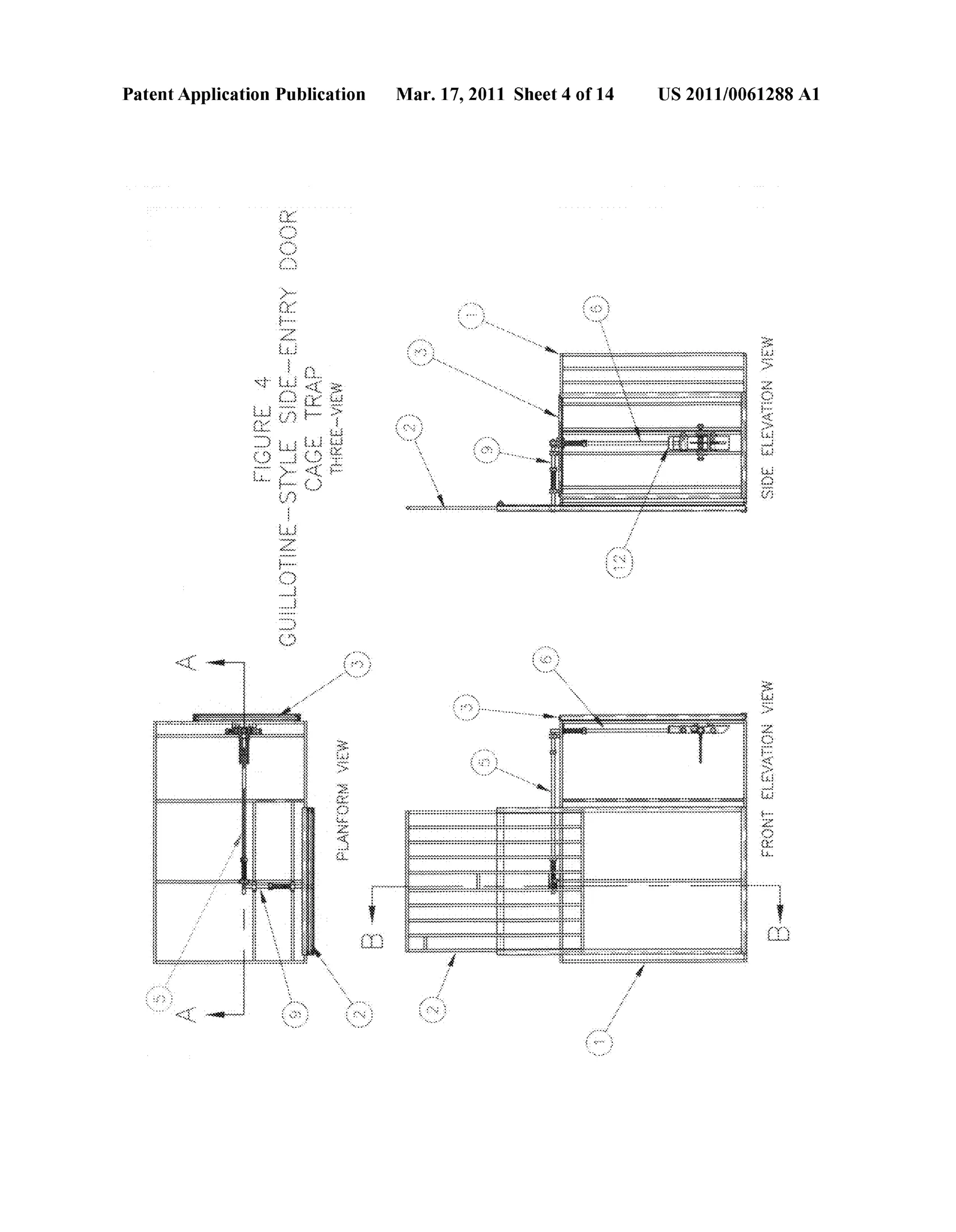

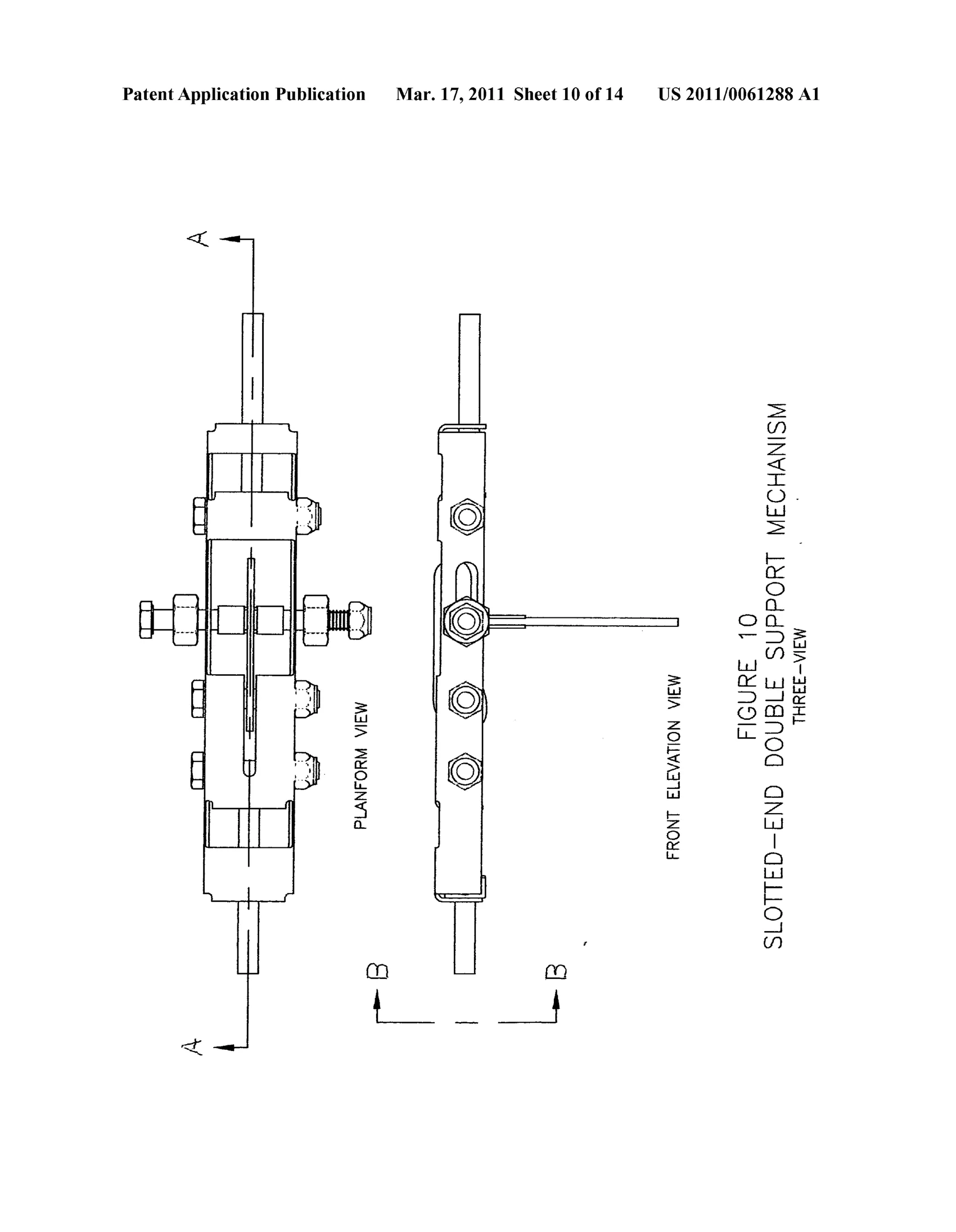

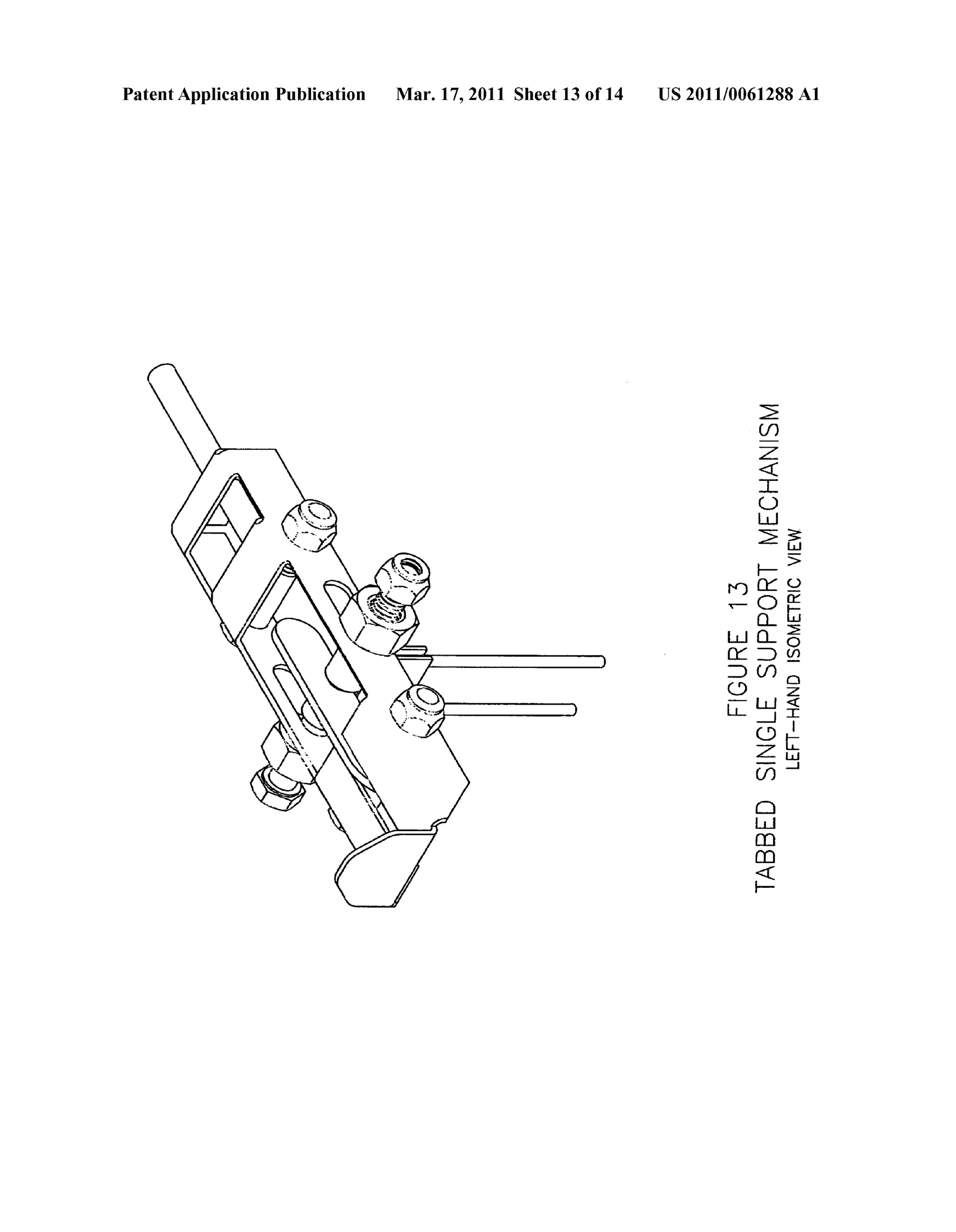

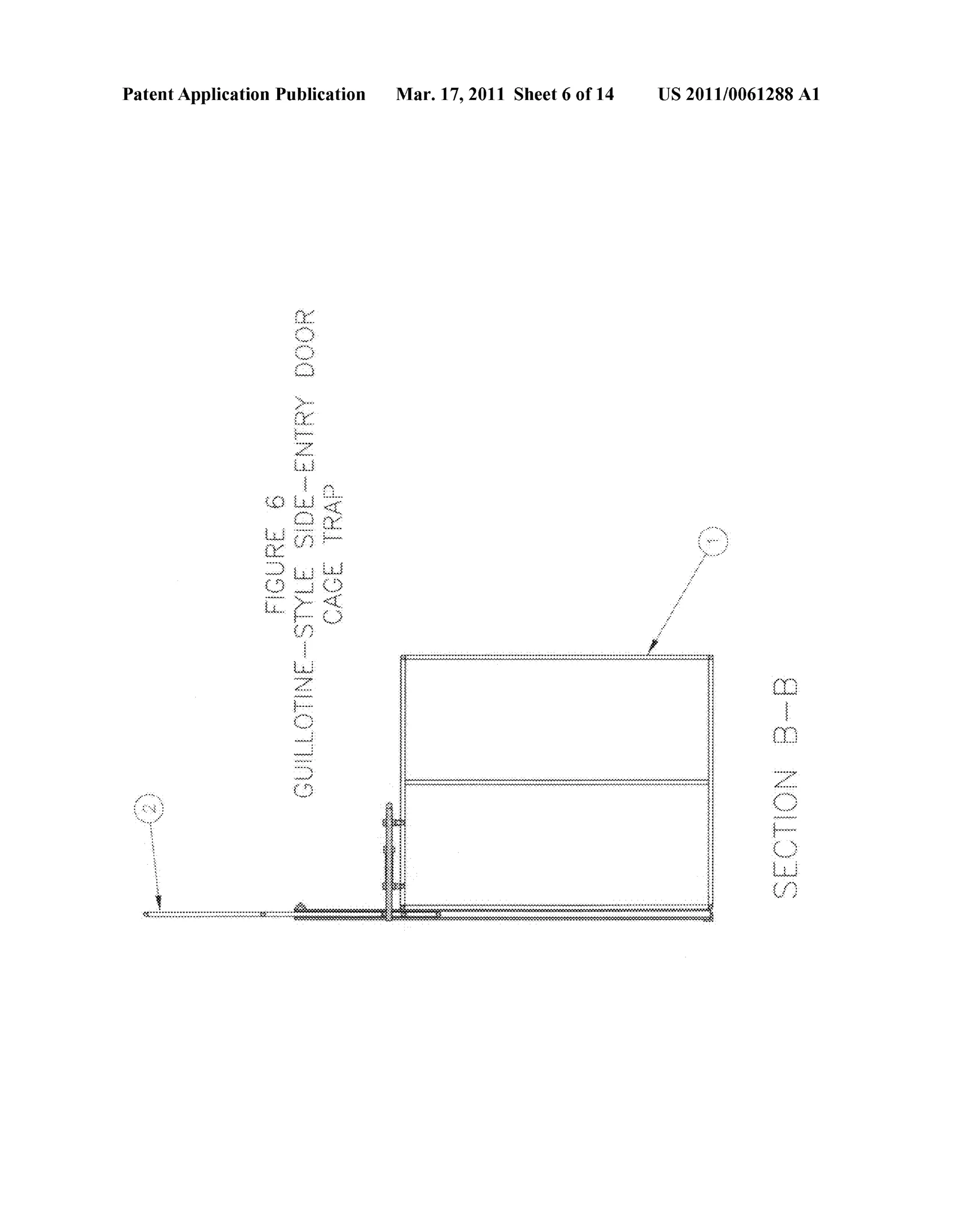

Sheet 1Sheet 2Sheet 3Sheet 4Sheet 5Sheet 6Sheet 7Sheet 8Sheet 9Sheet 10Sheet 11Sheet 12Sheet 13Sheet 14Sheet 15Sheet 16Sheet 17Sheet 18

The animal enters the cage and steps on a bait treadle at the far end. The treadle transmits force through a linkage of pivoting release rods to a latch assembly at the door. A spring holds the latch under continuous force toward disengagement, so the tripped latch releases immediately. The guillotine-style door falls shut and the animal is confined inside the cage.

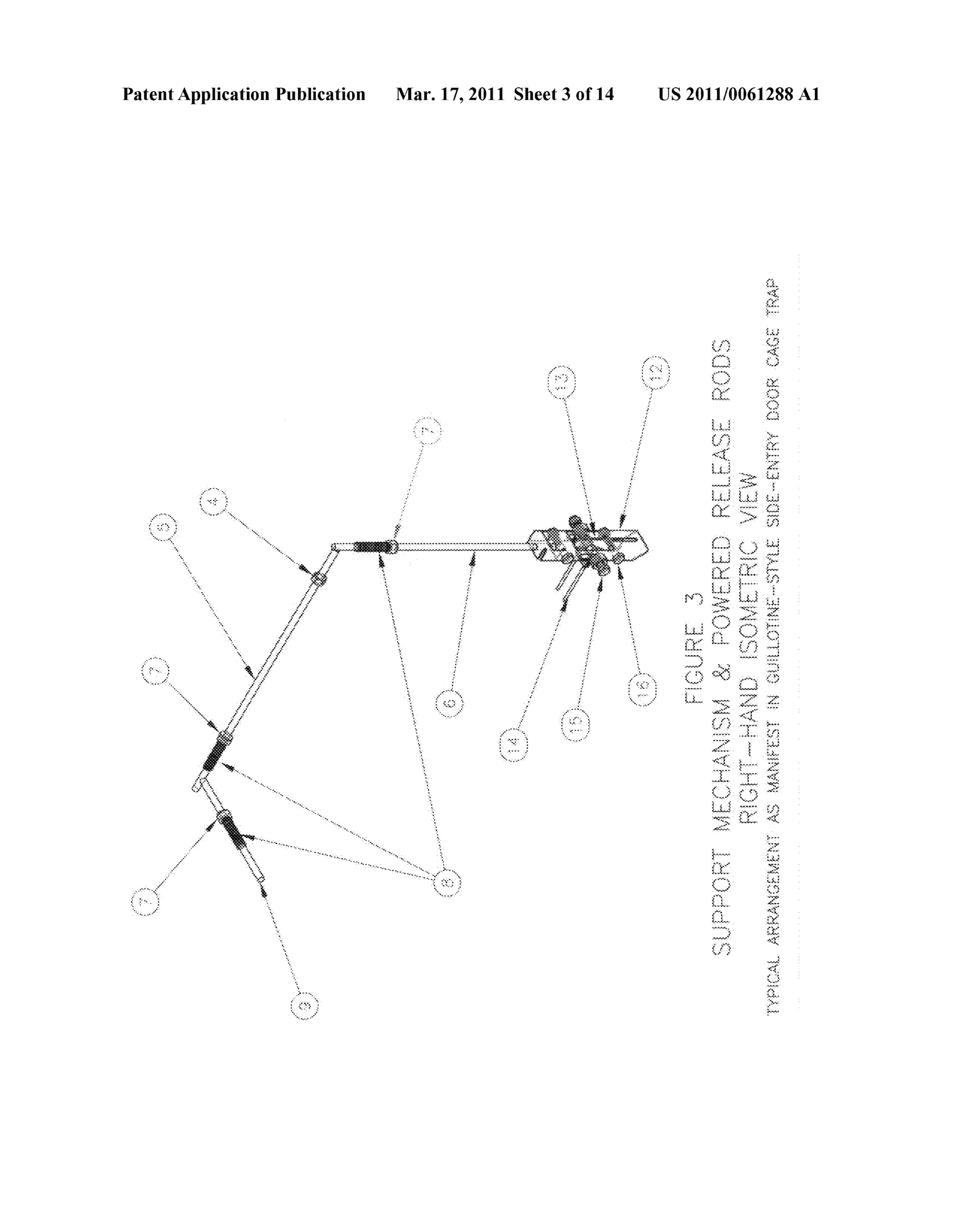

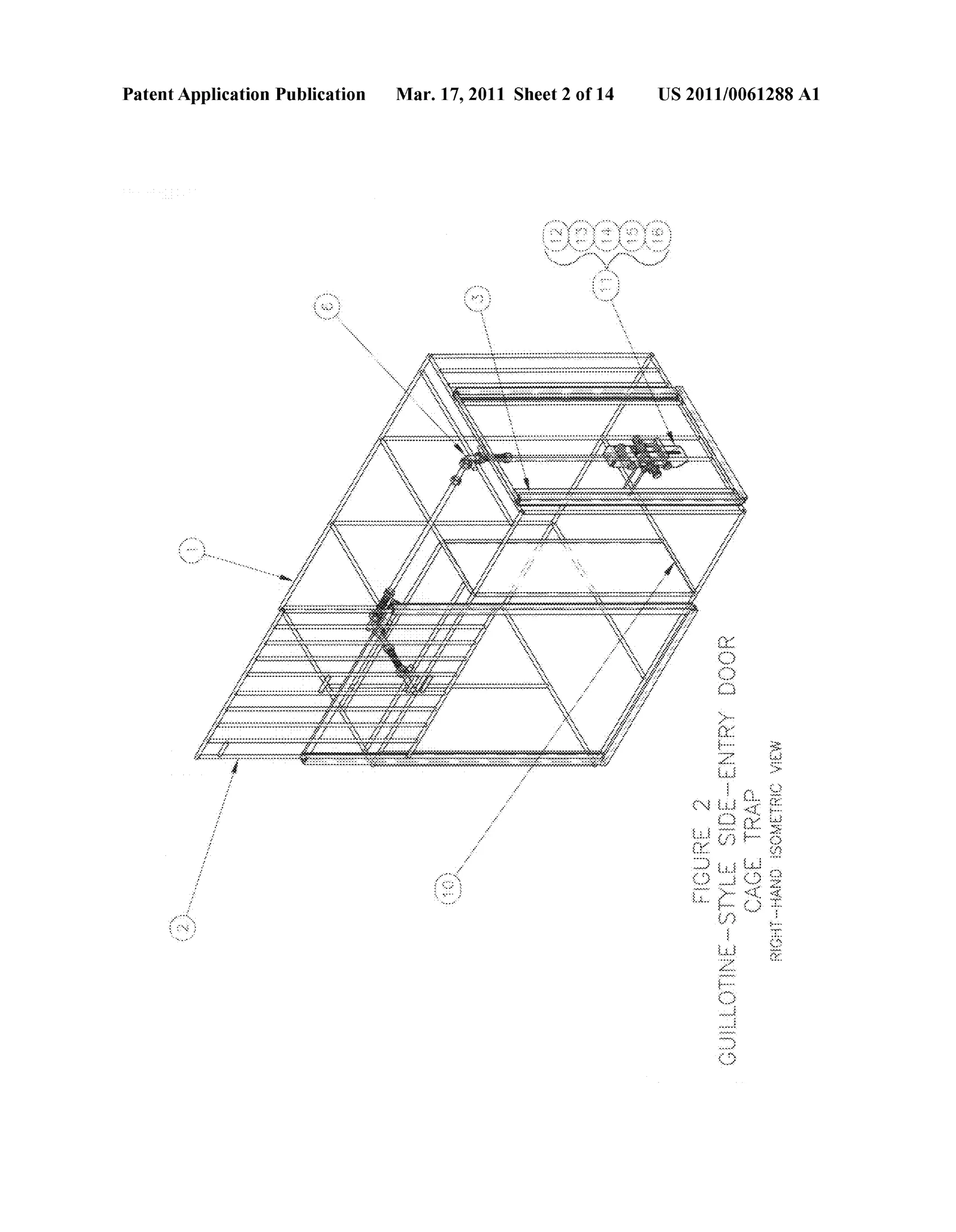

“SUPPORT MECHANISM & POWERED RELEASE RODS, RIGHT-HAND ISOMETRIC VIEW. TYPICAL ARRANGEMENT AS MANIFEST IN GUILLOTINE-STYLE SIDE-ENTRY DOOR CAGE TRAP.”— Kirk Alan DeKalb, from the specification
