And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

PEST CONTROL DEVICE

Two glue boards shipped as a sandwich, sliced apart with a knife.

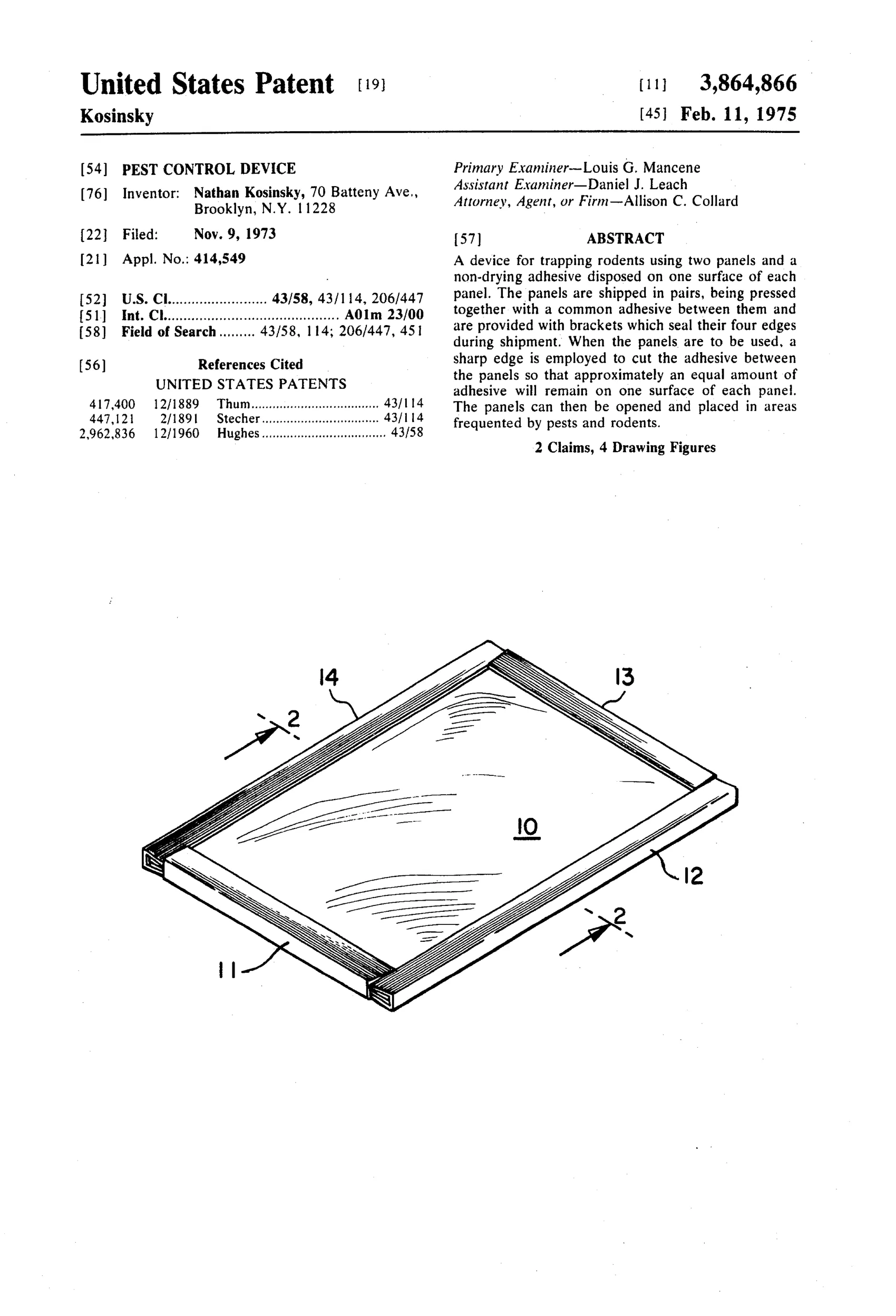

PatentUS 3,864,866
PatentedFebruary 11, 1975
InventorNathan Kosinsky
OfBrooklyn, New York

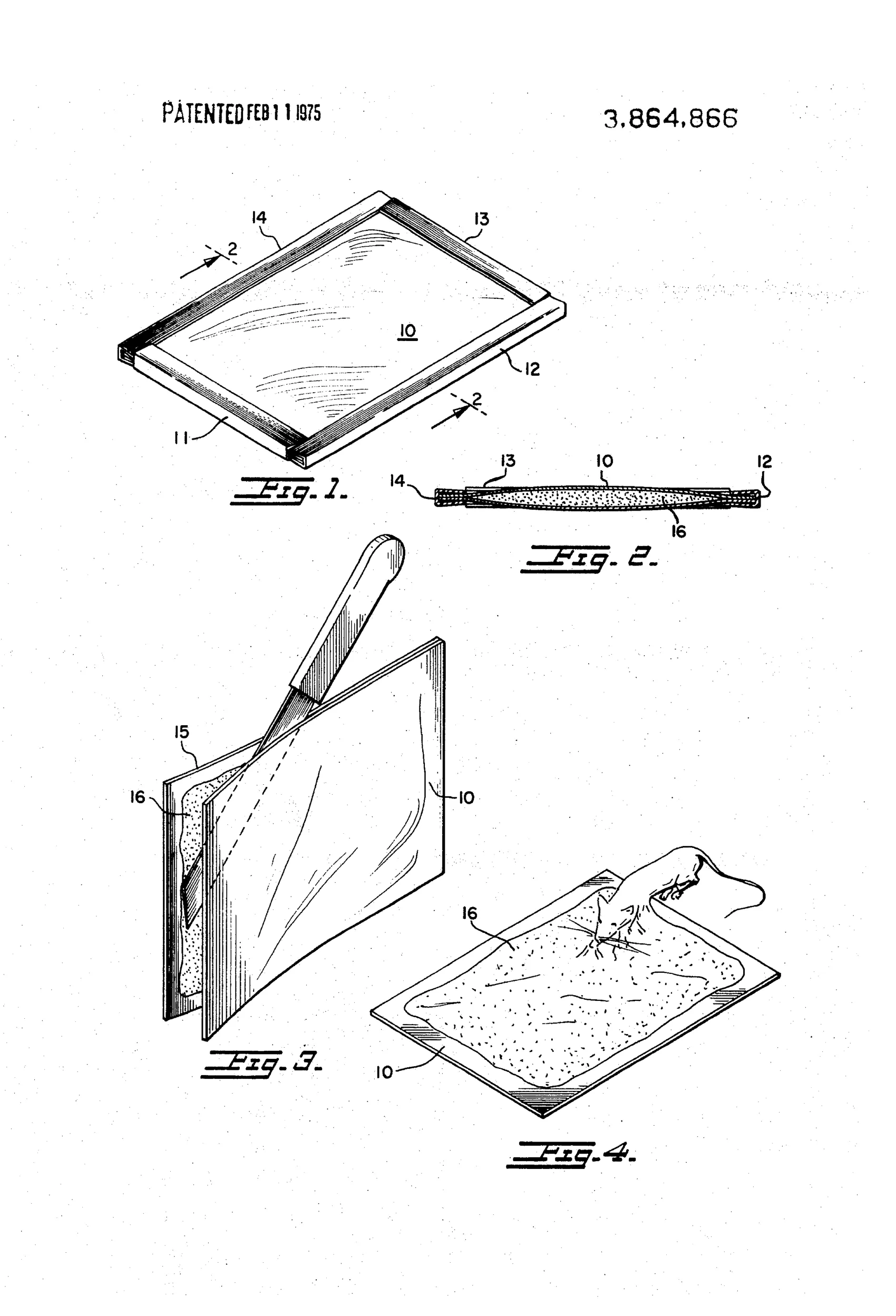

An exploded-style perspective drawing of a rectangular two-panel board trap with U-shaped edge brackets labeled 11-14, a center adhesive layer, a hand slicing the panels apart with a knife, and a final drawing showing a mouse stuck on the exposed adhesive-coated board.
click to zoom
Sheet 1Sheet 2Sheet 3Sheet 4

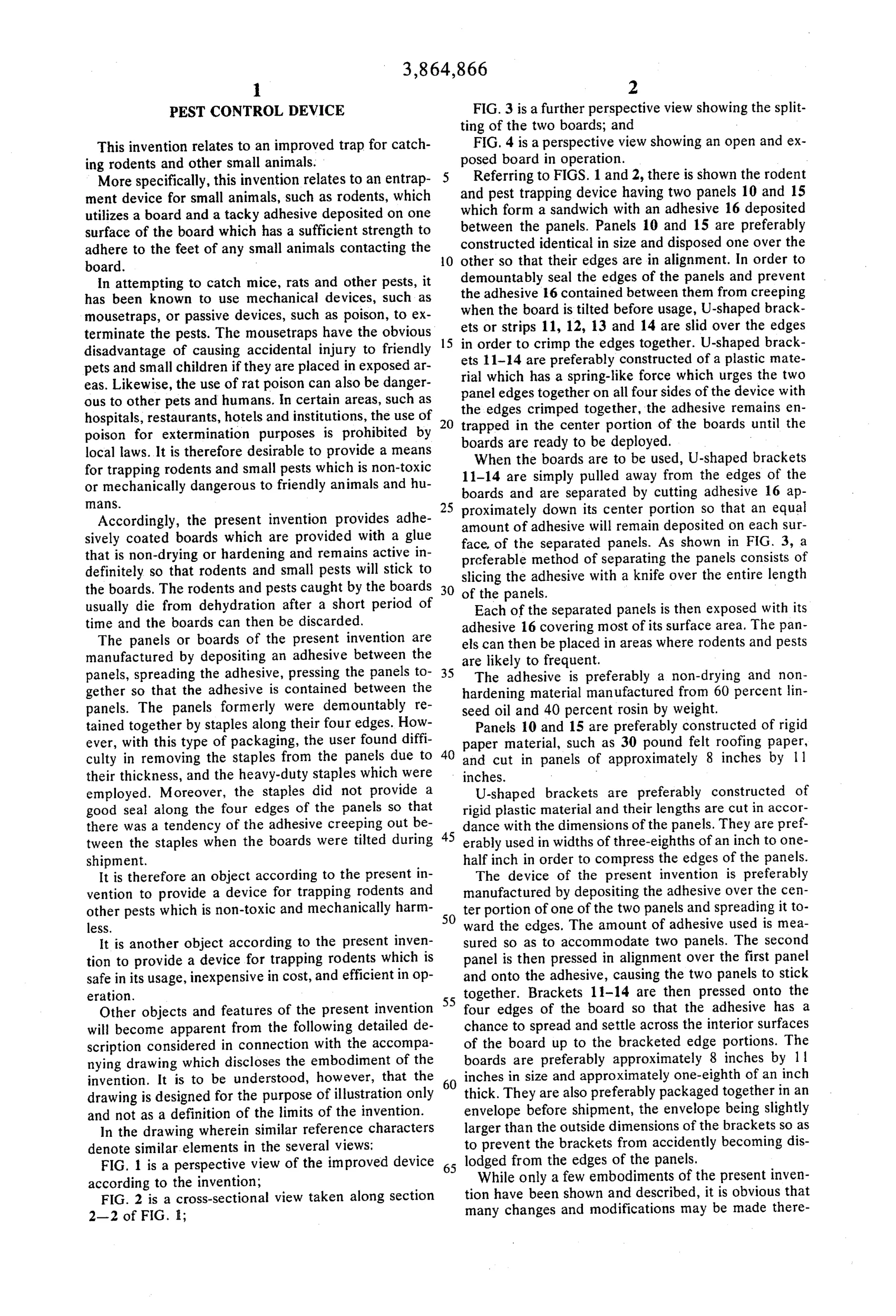

Two rigid panels are pressed together with a non-drying adhesive between them, and U-shaped plastic brackets crimp the four edges to keep the adhesive from creeping out during shipment. The user pulls off the brackets and runs a knife through the adhesive layer, splitting the sandwich so each panel keeps half the glue. The exposed panels are placed where rodents frequent. A rodent stepping onto a panel adheres to it and remains there.

“The rodents and pests caught by the boards usually die from dehydration after a short period of time and the boards can then be discarded.”— Nathan Kosinsky, from the specification

And the world did not beat a path to his door.
