And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

ANIMAL TRAP

A mirror is provided to arouse the animal's fighting spirit.

PatentUS 1,555,966
PatentedOctober 6, 1925
InventorAkos J. Hall
OfCleveland, Ohio

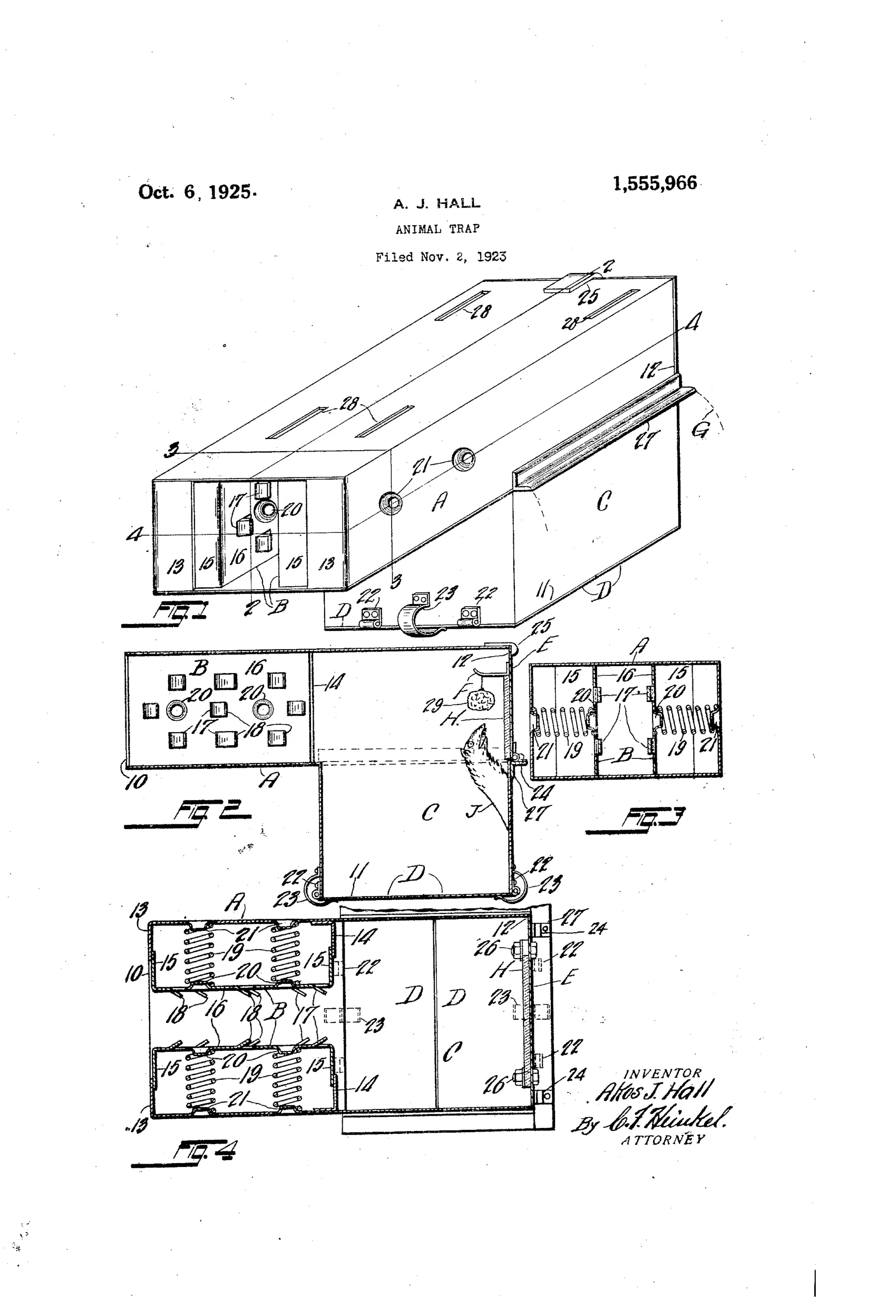

Exploded perspective and sectional drawings of a rectangular sheet-metal animal trap showing an entrance chamber with spring-loaded toothed walls, a central bait passage, hinged trap doors at the bottom, and a rear door fitted with a mirror, all labeled with numbered reference parts.
click to zoom

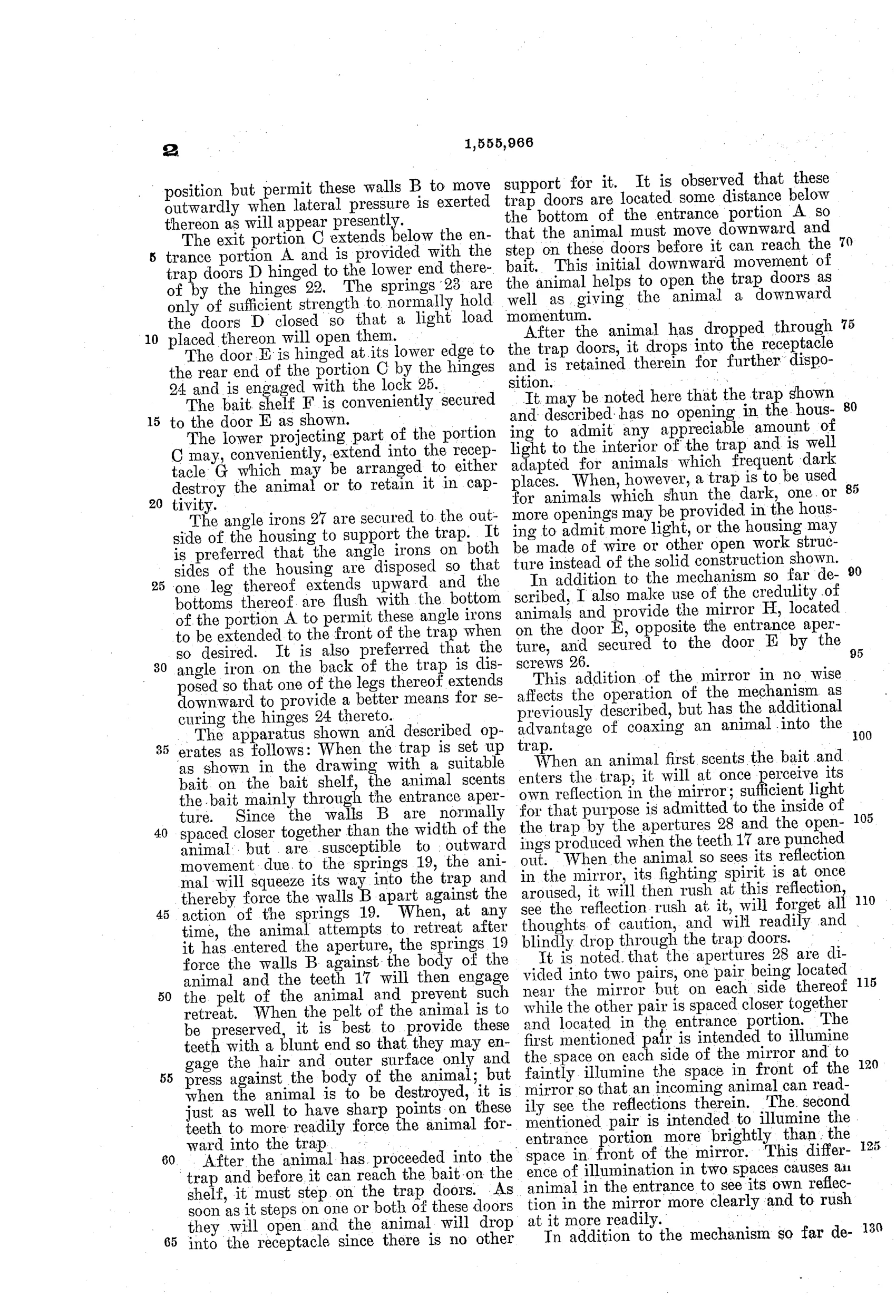

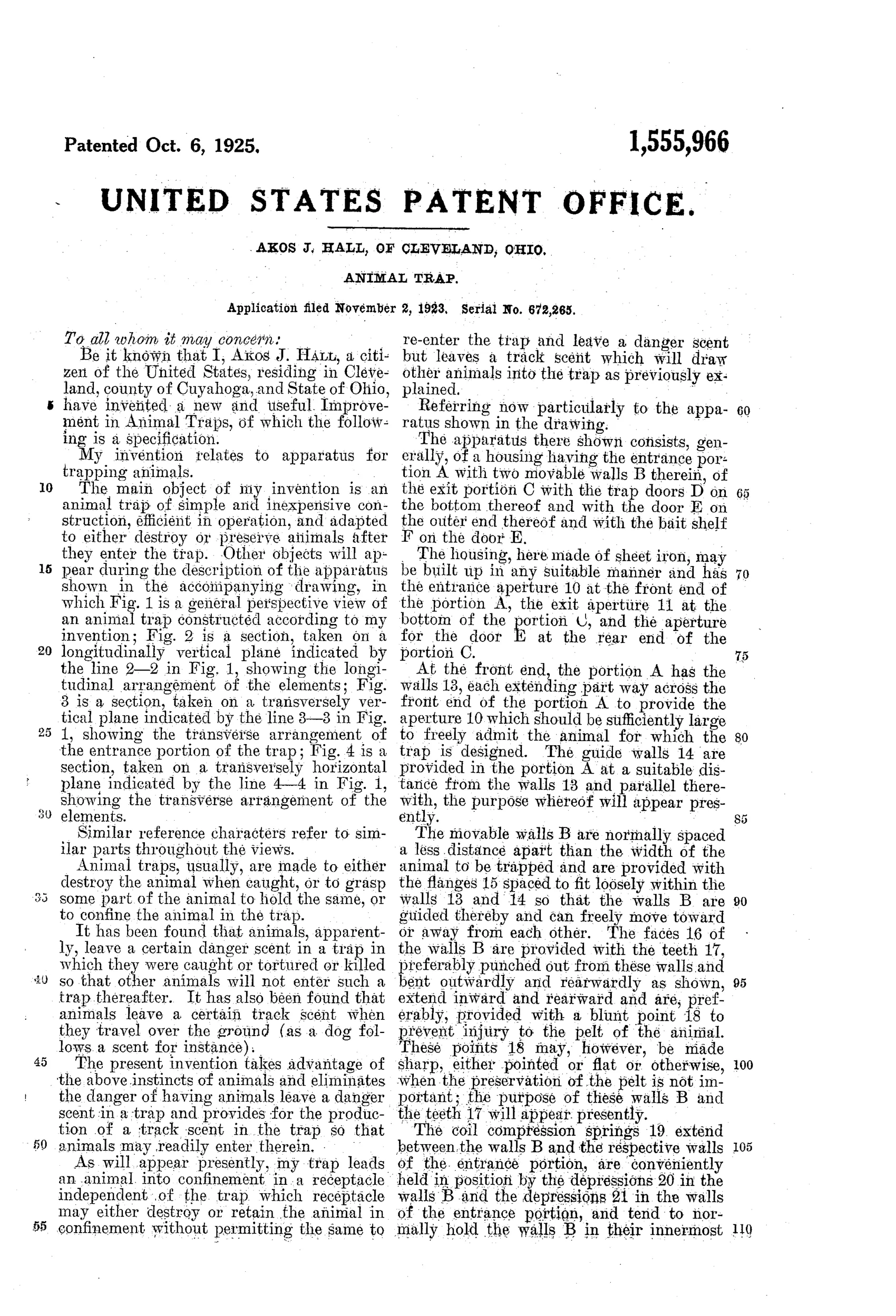

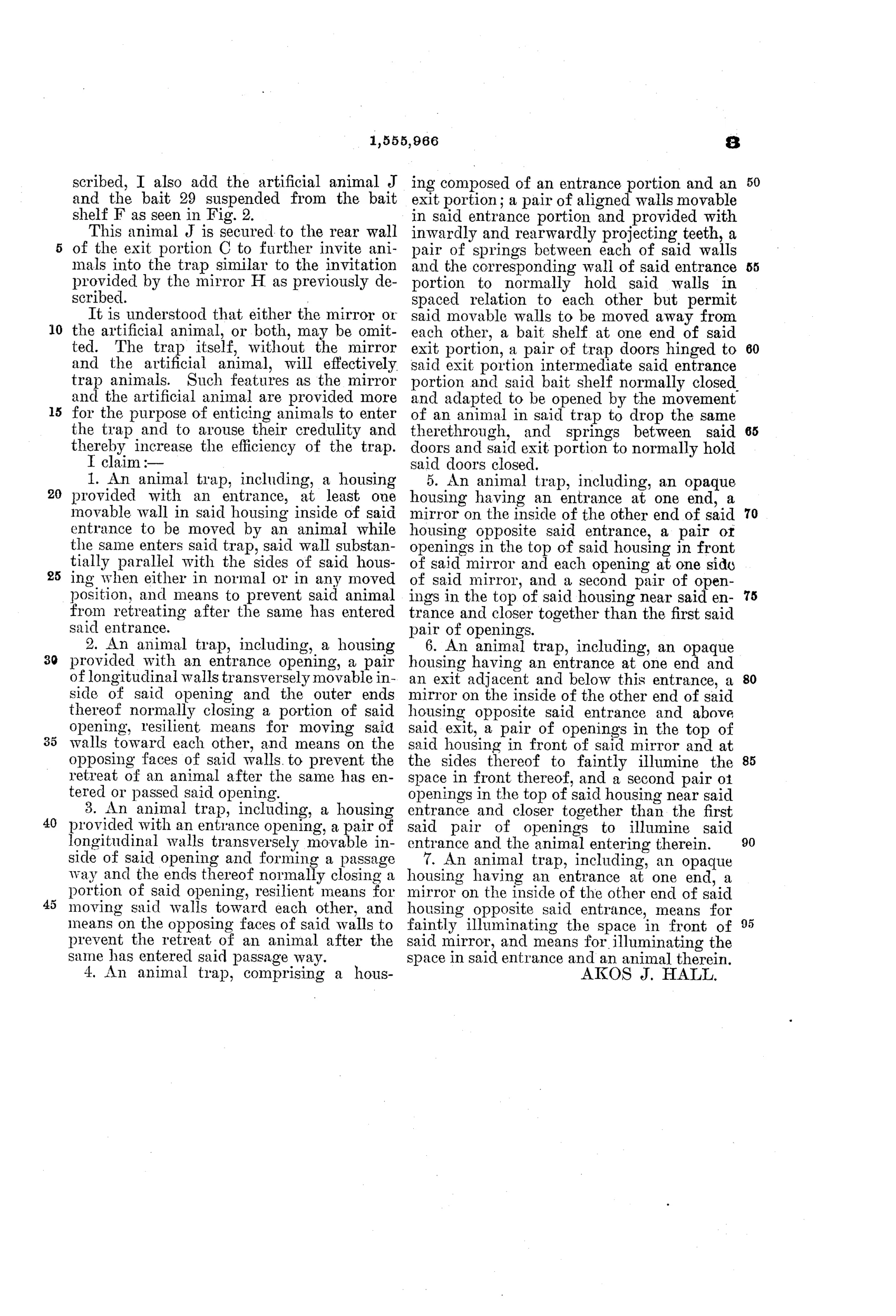

Sheet 1Sheet 2Sheet 3Sheet 4

The animal squeezes between two spring-loaded walls fitted with rearward-angled teeth, which permit entry but grip its pelt if it attempts to retreat. Opposite the entrance, a mirror mounted on the rear door is faintly illuminated by openings in the roof, while a second pair of openings lights the incoming animal so it sees its own reflection. The animal rushes at the reflection, steps on hinged trap doors in the floor, and drops through into a receptacle below. An artificial animal may also be secured to the rear wall as a further inducement.

“When the animal so sees its reflection in the mirror, its fighting spirit is at once aroused, it will then rush at this reflection, see the reflection rush at it, will forget all thoughts of caution, and will readily and blindly drop through the trap doors.”— Akos J. Hall, from the specification

And the world did not beat a path to his door.
