And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

ANIMAL-TRAP

A falling door with teeth to strike the retreating animal.

PatentUS 1,044,350
PatentedNovember 12, 1912
InventorTheodore Vanderbilt Clapp
OfSpringfield, Massachusetts

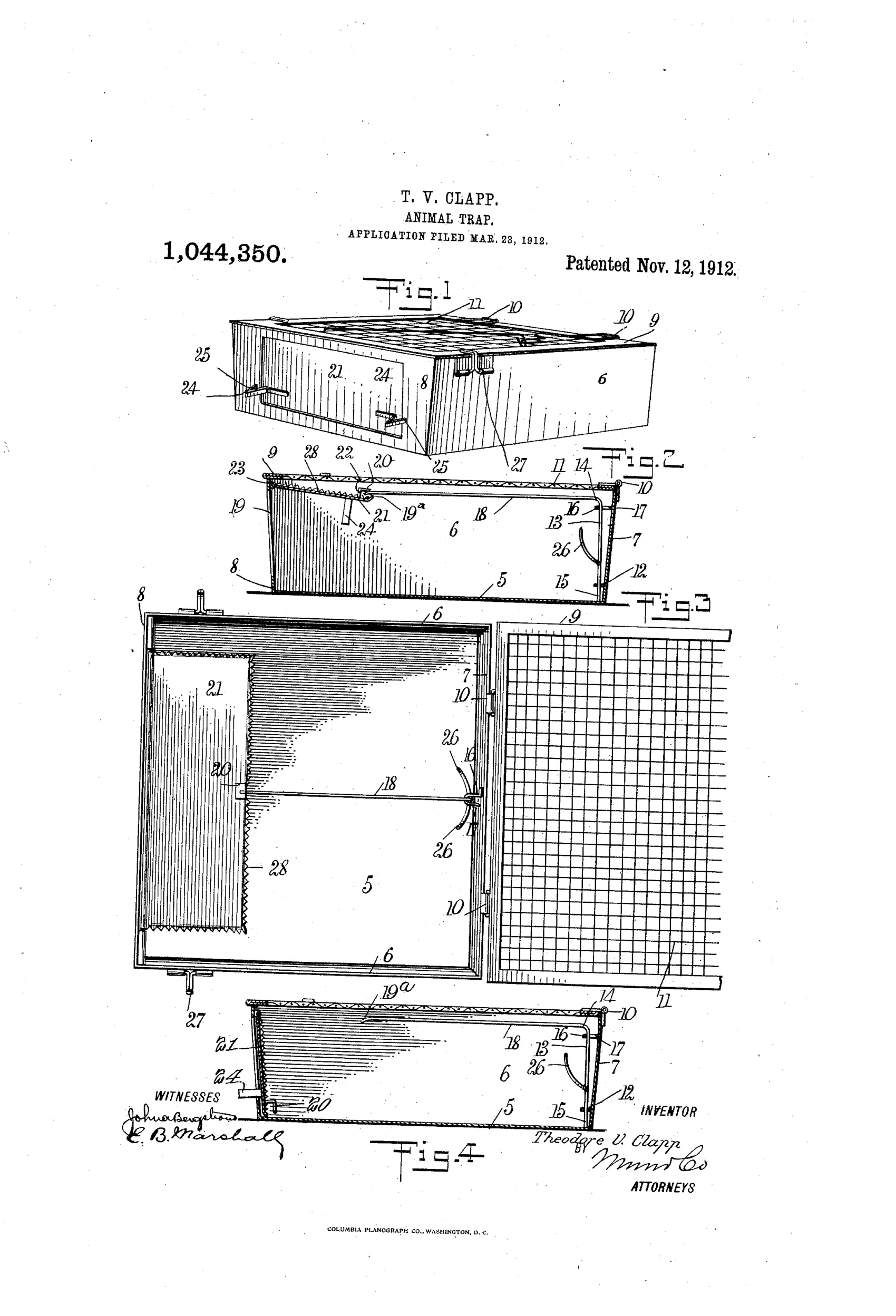

Patent drawing of a rectangular wire-mesh cage trap showing a perspective view, two side sectional elevations with the hinged front door open and closed, and a plan view revealing the internal bait rod, guideway, spring catches, and toothed door mechanism.
click to zoom
Sheet 1Sheet 2Sheet 3

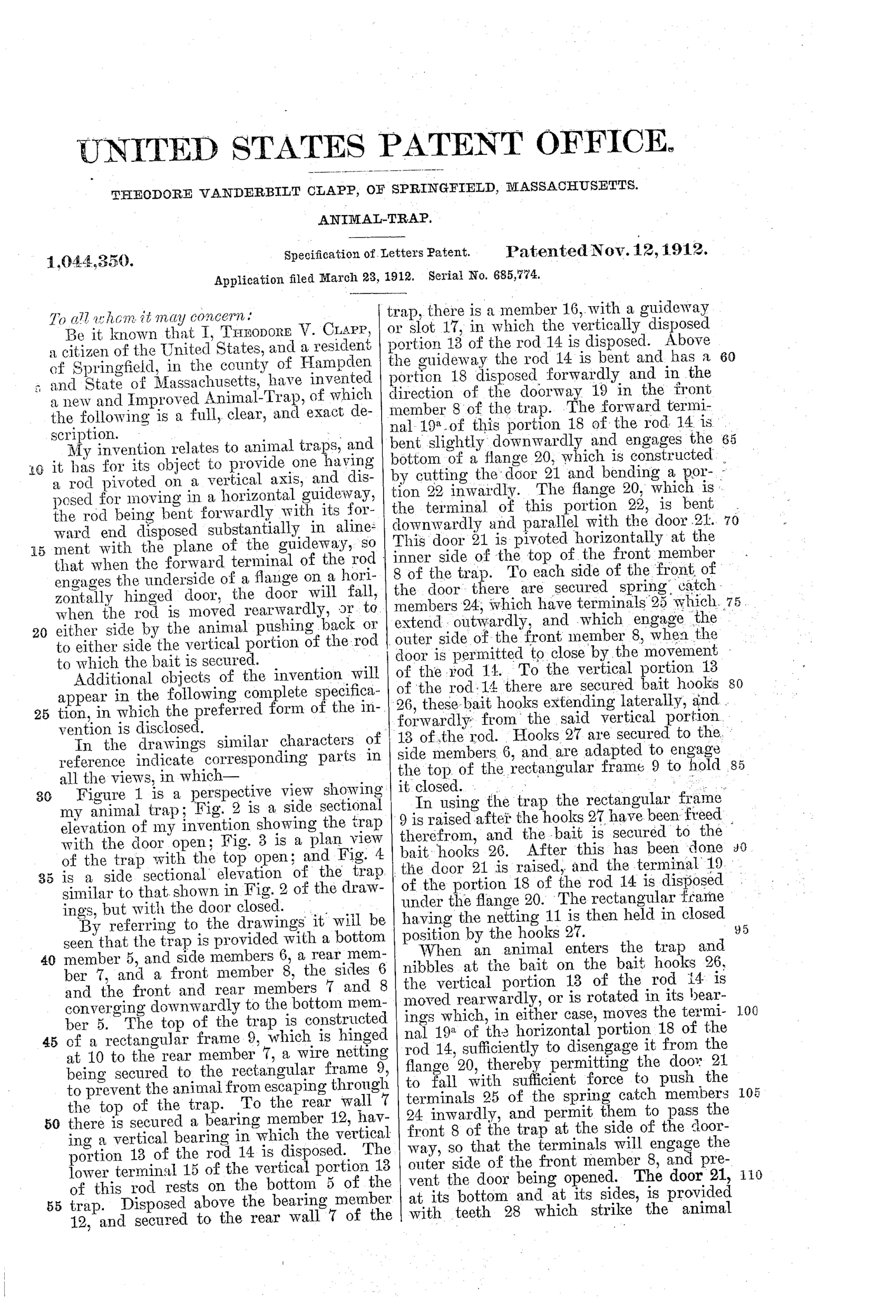

The animal enters the cage and nibbles bait held on hooks fixed to a vertical rod. Moving or rotating the rod withdraws its horizontal terminal from a flange on the hinged front door, and the door falls. Spring catch members on the door pass the front of the trap and lock against its outer side. Teeth on the bottom and sides of the door strike any animal still in the doorway, preventing it from backing out.

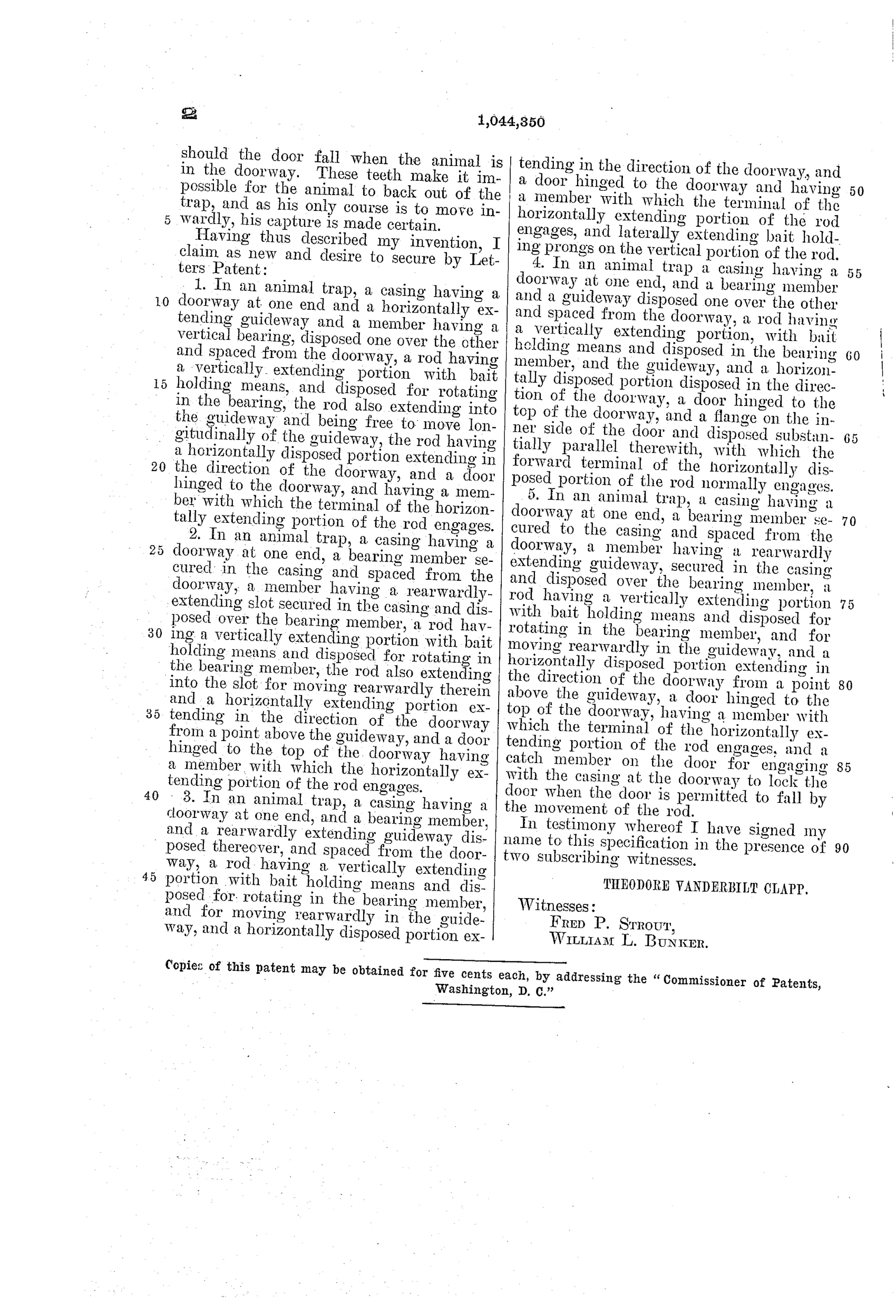

“These teeth make it impossible for the animal to back out of the trap, and as his only course is to move inwardly, his capture is made certain.”— Theodore Vanderbilt Clapp, from the specification

And the world did not beat a path to his door.
