And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

TRAP.

One trap, adjustable to impale either mice or rats.

PatentUS 801,923
PatentedOctober 17, 1905
InventorJohn Shepherd
OfChicago, Illinois

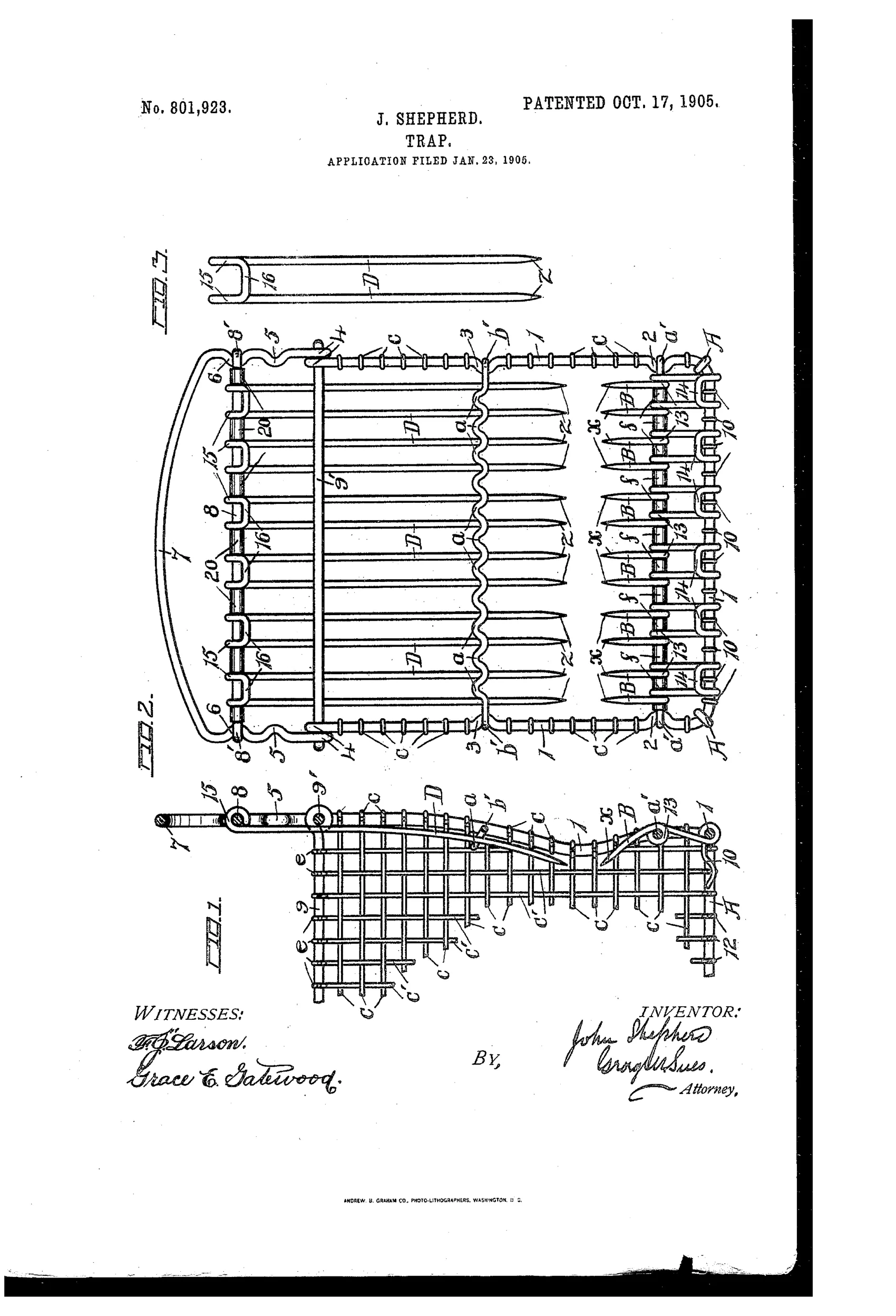

Patent drawing of a rectangular wire cage trap showing an end view with rows of curved hooks and hanging pointed spear-hangers held by an adjustable bar, plus a detail of a single hanger and a side-section view of the trap end.
click to zoom

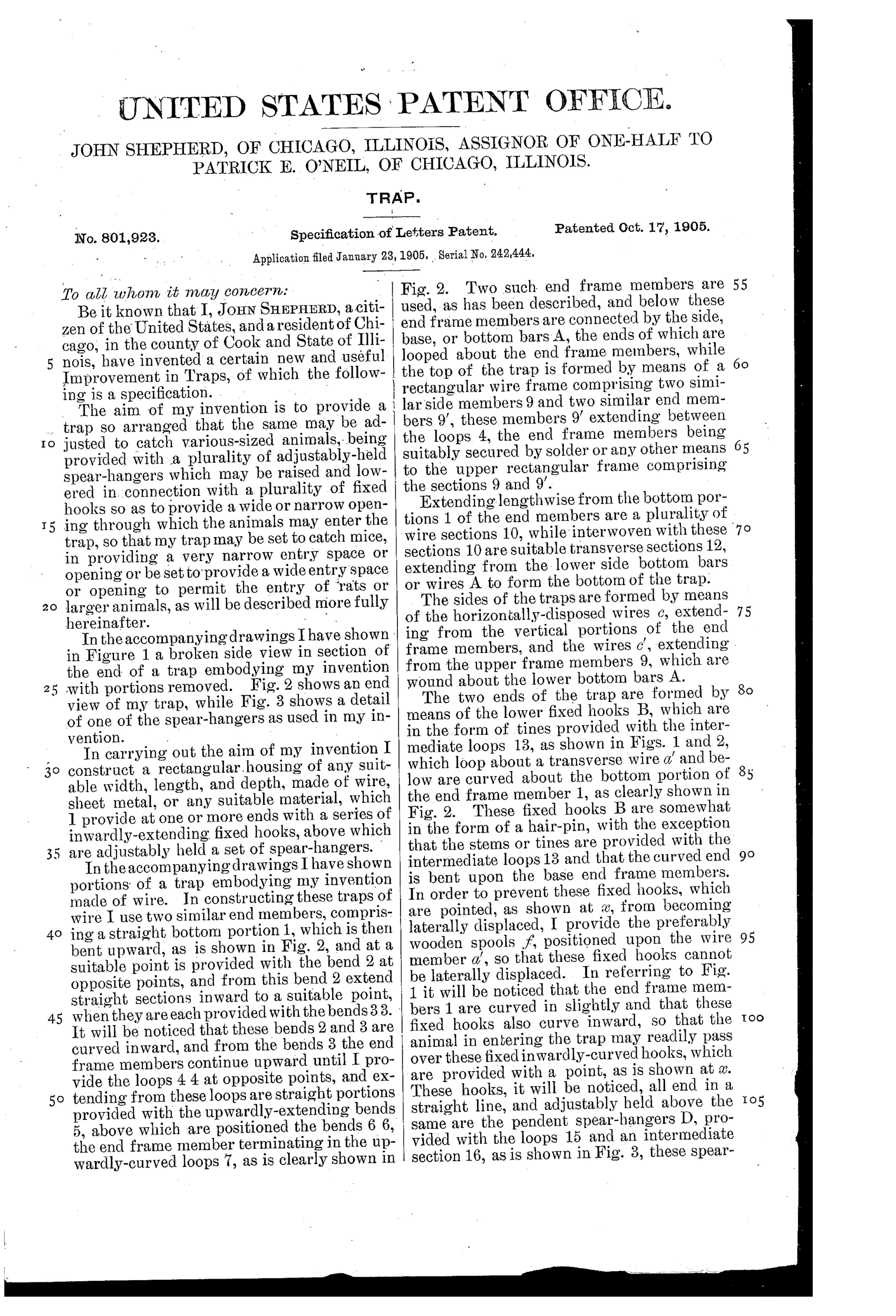

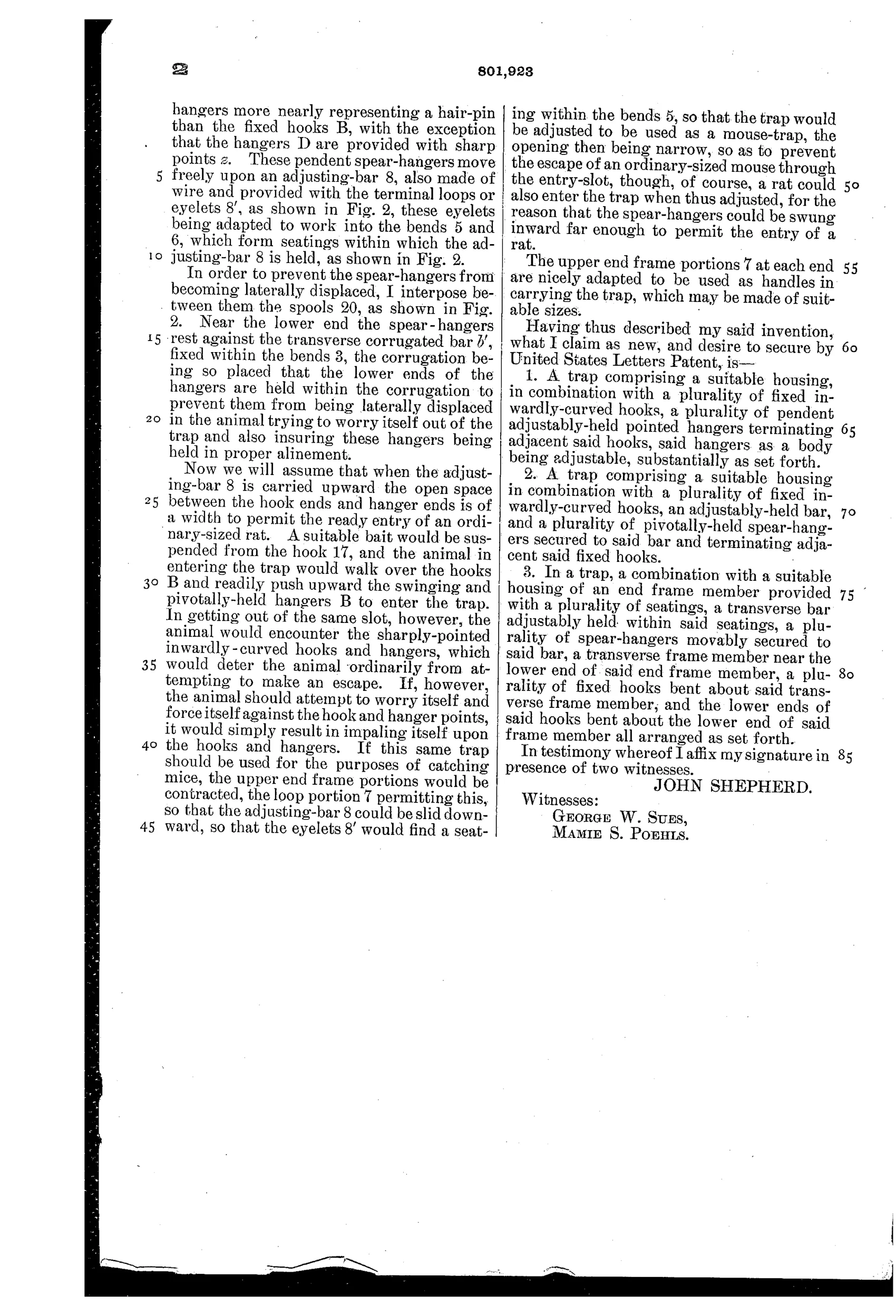

Sheet 1Sheet 2Sheet 3

A wire cage carries a row of fixed, inwardly curved pointed hooks at its entrance, with a set of pointed spear-hangers suspended on an adjustable bar above them. Raising or lowering the bar widens or narrows the entry slot, setting the trap for rats or for mice. The animal pushes past the swinging hangers to reach bait suspended inside. On attempting to leave through the same slot, it meets the points of the hooks and hangers; if it presses against them, it is impaled.

“If, however, the animal should attempt to worry itself and force itself against the hook and hanger points, it would simply result in impaling itself upon the hooks and hangers.”— John Shepherd, from the specification

And the world did not beat a path to his door.
