HUMANE ANIMAL TRAP

A box with a door that swings one way.

PatentUS 7,841,130
PatentedNovember 30, 2010
InventorIrwin Blau
OfNew Castle, NH

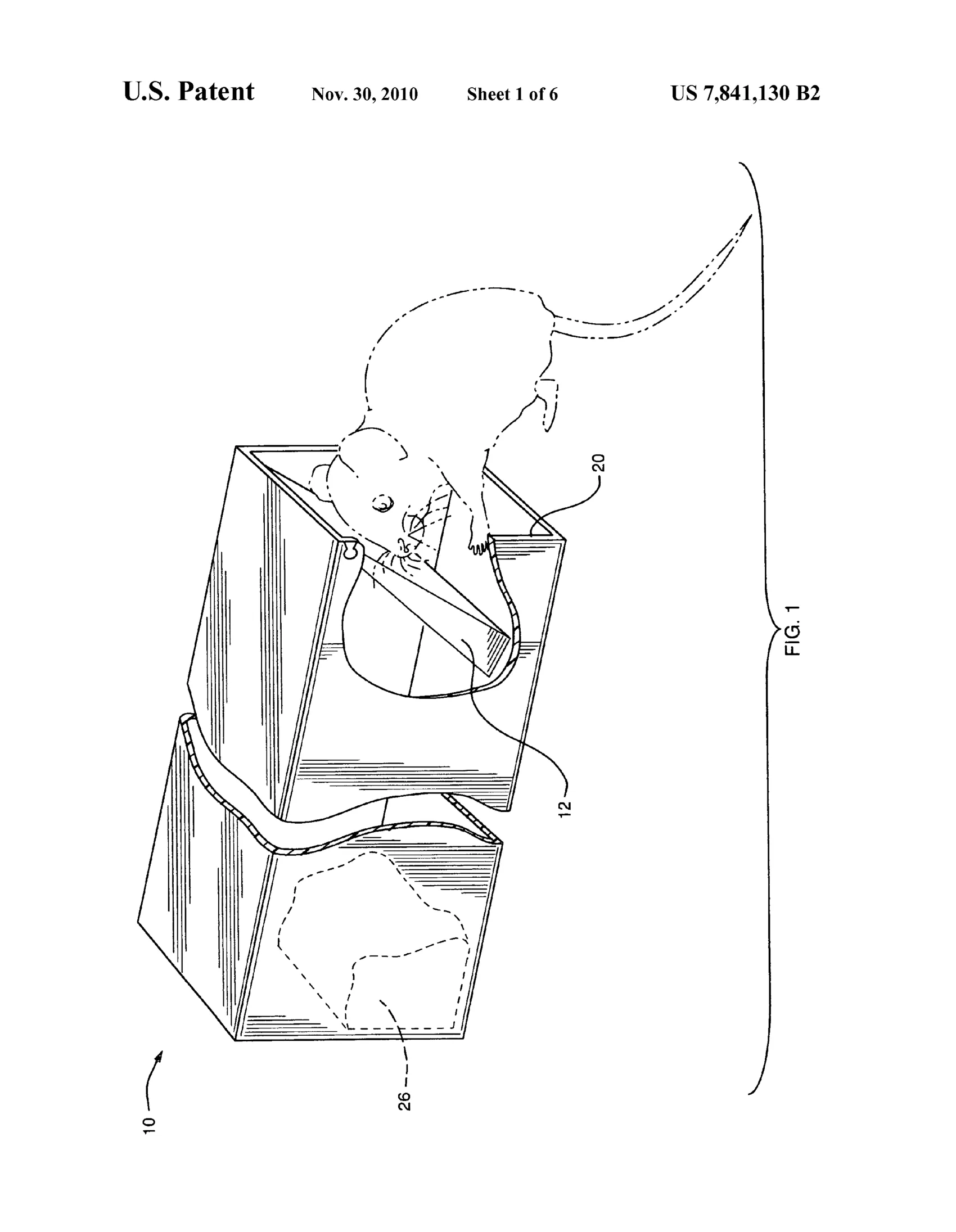

An isometric line drawing of a rectangular box-shaped rodent trap with a hinged, weighted one-way door swinging open at the top of the entry opening, with a mouse depicted climbing over the door into the enclosure.
click to zoom

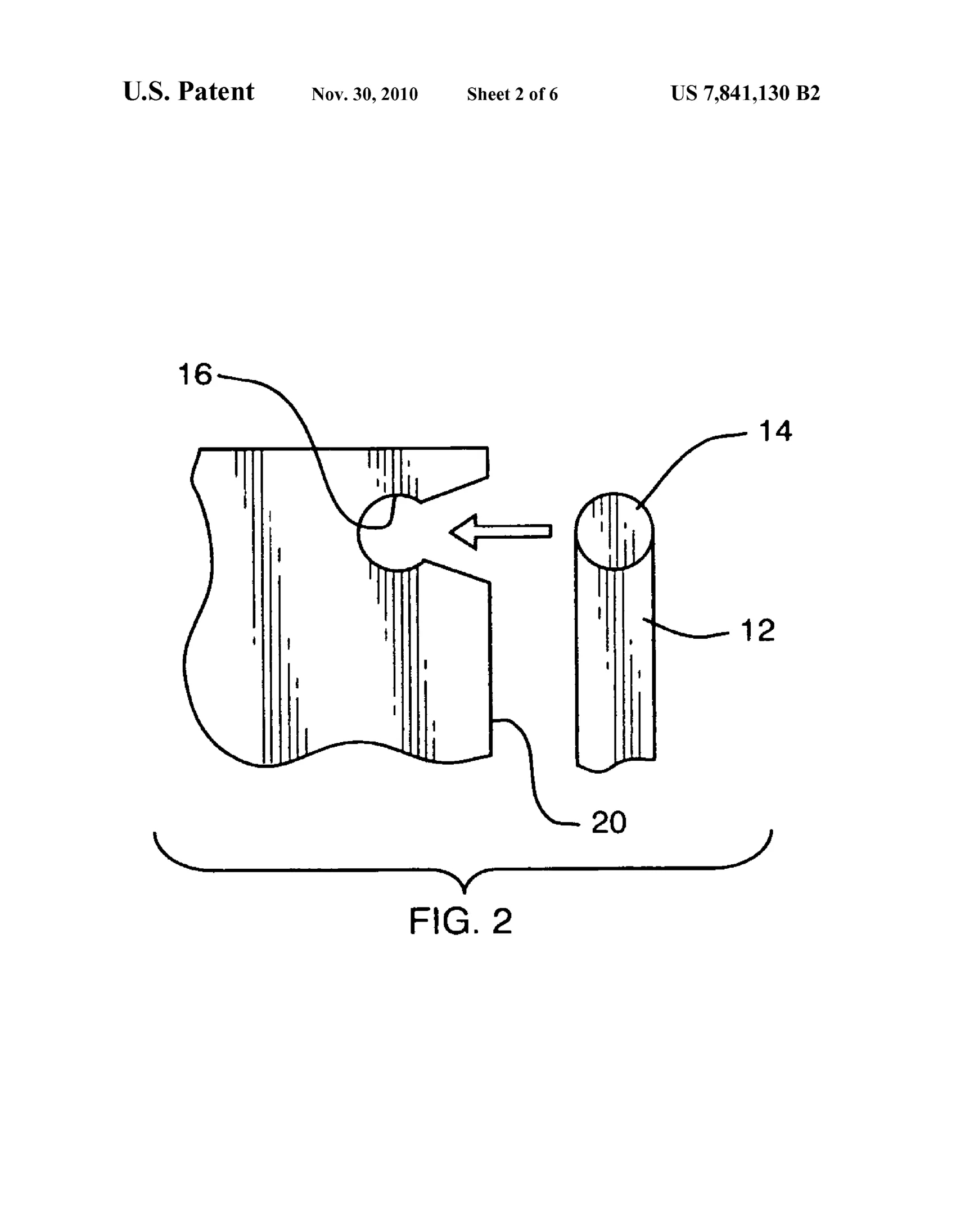

Sheet 1Sheet 2Sheet 3Sheet 4Sheet 5Sheet 6Sheet 7Sheet 8Sheet 9Sheet 10

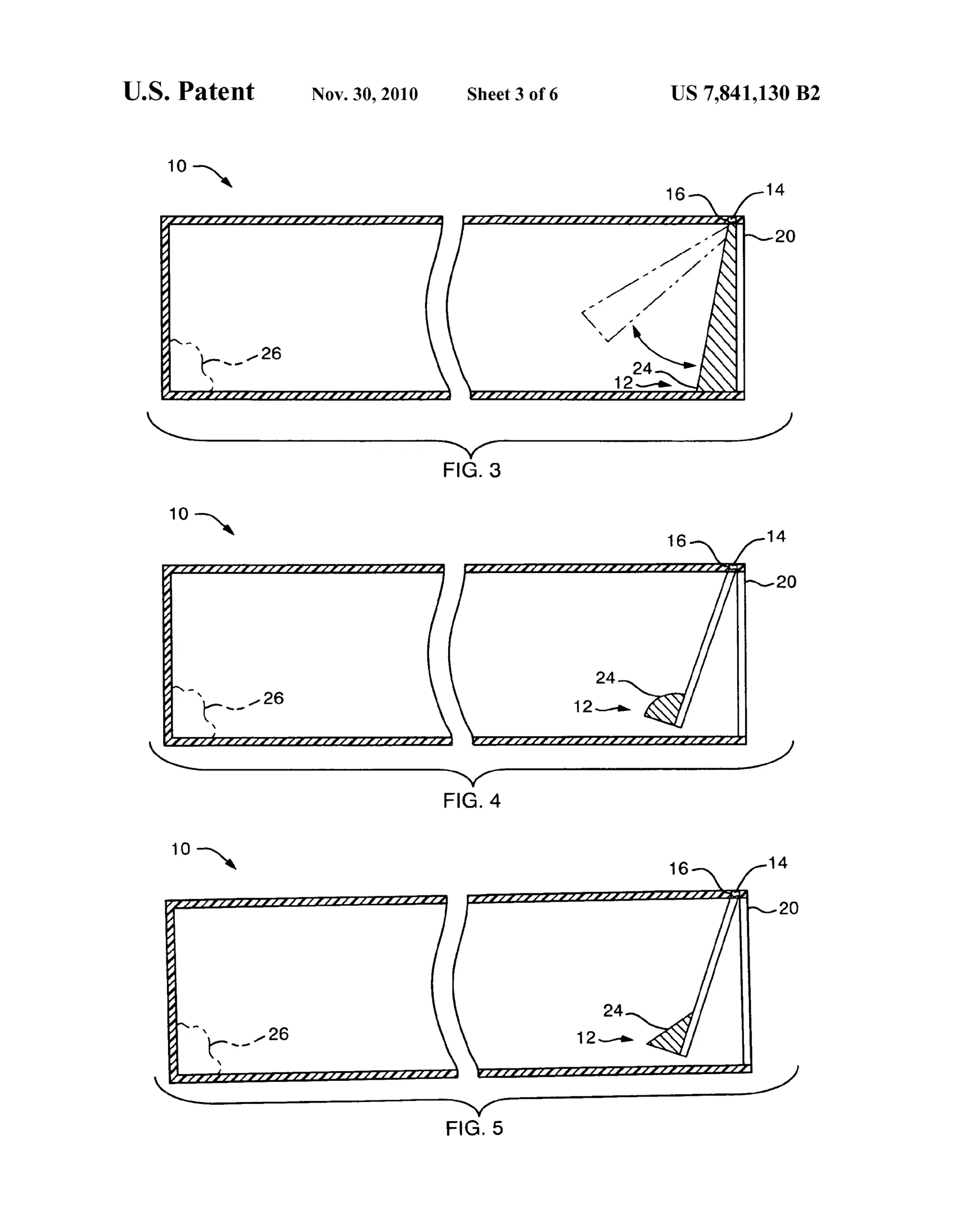

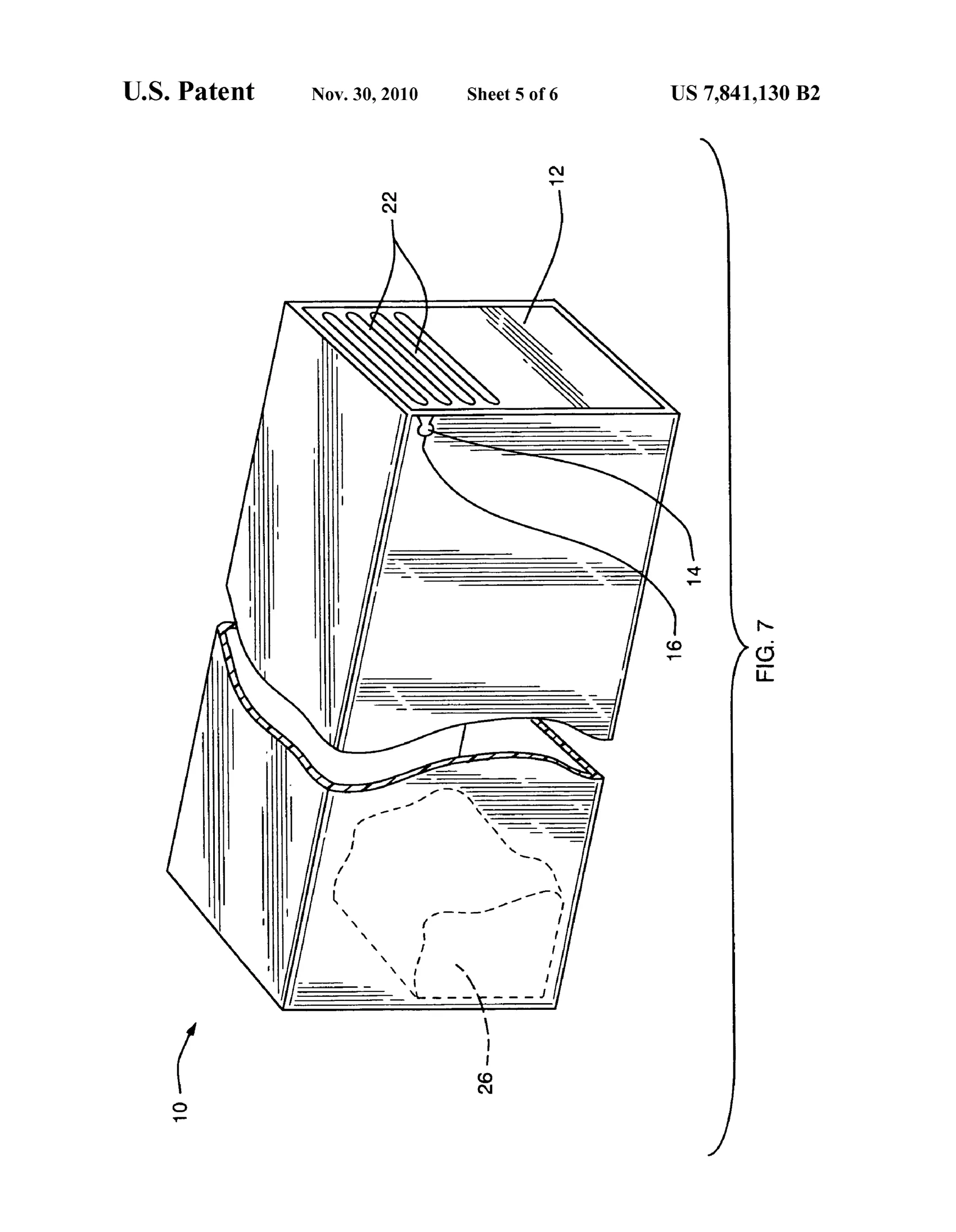

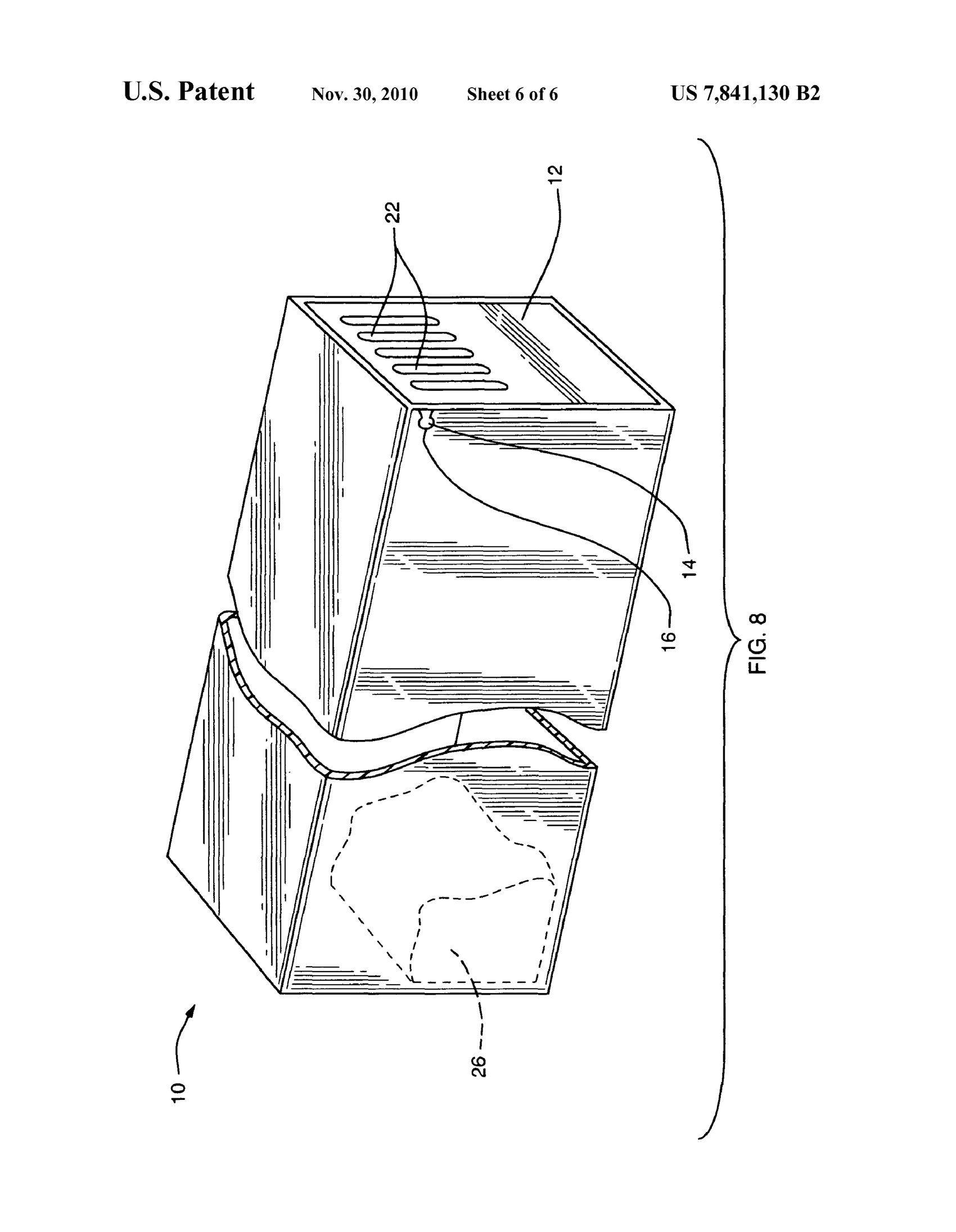

The mouse pushes through a hinged door at the opening of a molded plastic box. The door swings freely inward, then falls closed under gravity behind the mouse. A weighted lower portion speeds the door's descent and lowers the trap's center of gravity so the trapped animal cannot overturn the box or push the door open. Apertures in the upper portion of the door admit air.

“The metal and/or hard plastic composition of the door ensures that the animal will not gnaw a hole in the door to facilitate its escape.”— Irwin Blau, from the specification

And the world did not beat a path to his door.
