COMPOSABLE INSERTS FOR DIY TRAPS

A snap-together spike funnel that converts a storage tote into a trap.

PatentUS 12,527,311
PatentedJanuary 20, 2026
InventorNick Suteerawanit
OfLaguna Woods, CA

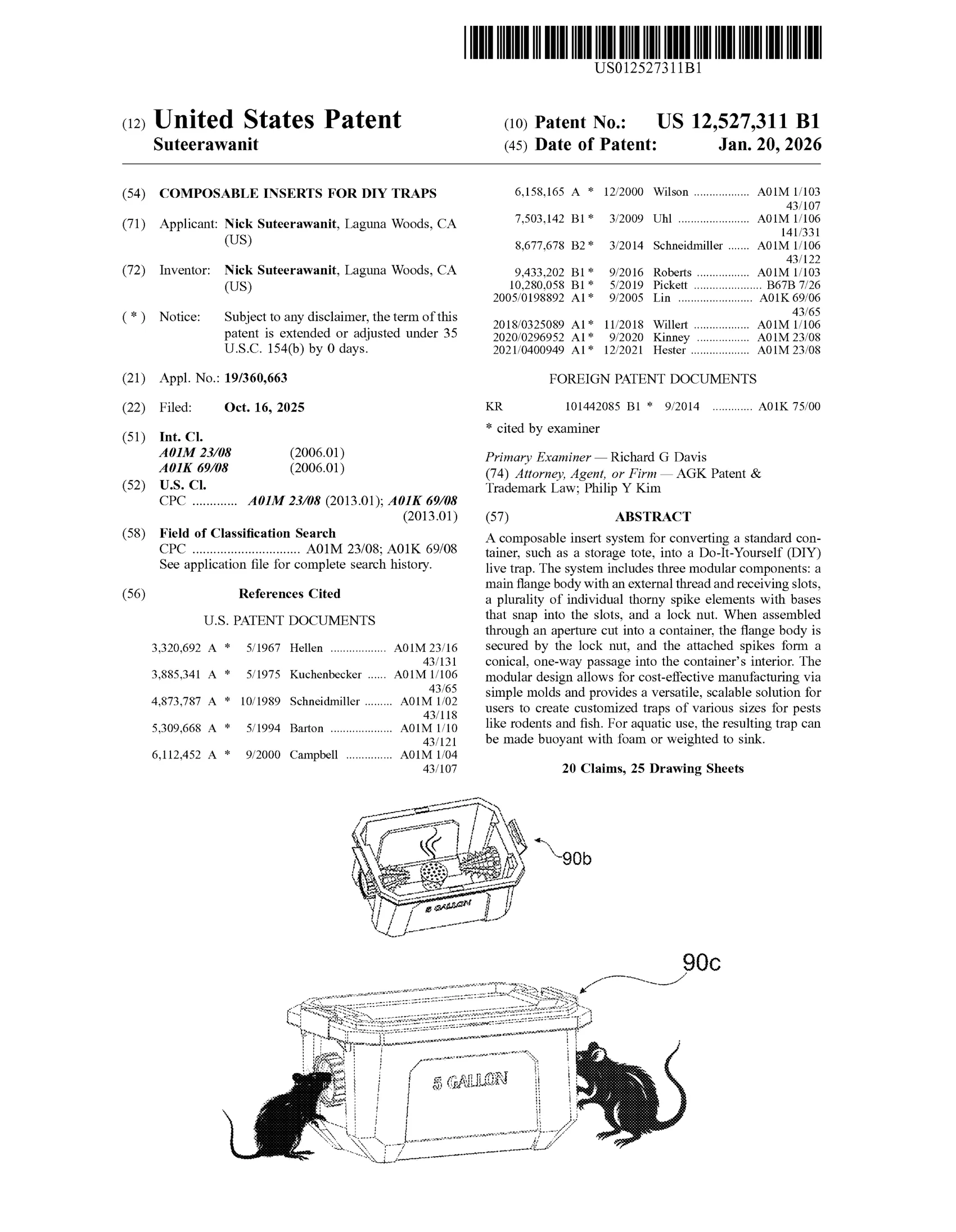

An exploded and assembled view of a spiked, cone-shaped plastic insert that threads into the lid of a five-gallon storage tote, shown on the cover page with two rats approaching the modified container from opposite sides.
click to zoom
Sheet 1Sheet 2Sheet 3Sheet 4Sheet 5Sheet 6Sheet 7Sheet 8Sheet 9Sheet 10Sheet 11Sheet 12Sheet 13Sheet 14Sheet 15Sheet 16Sheet 17Sheet 18Sheet 19Sheet 20Sheet 21Sheet 22Sheet 23Sheet 24Sheet 25Sheet 26Sheet 27Sheet 28Sheet 29Sheet 30Sheet 31

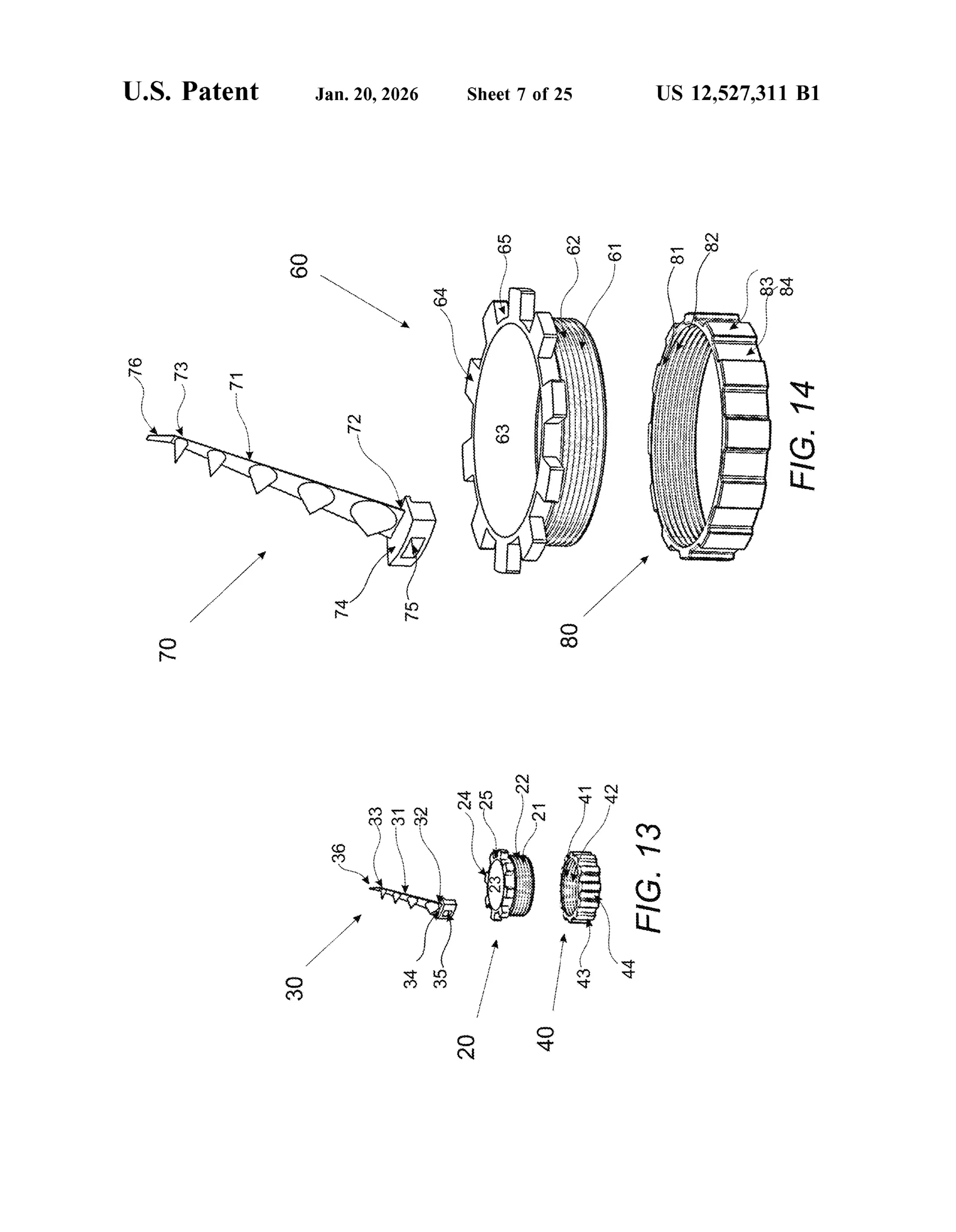

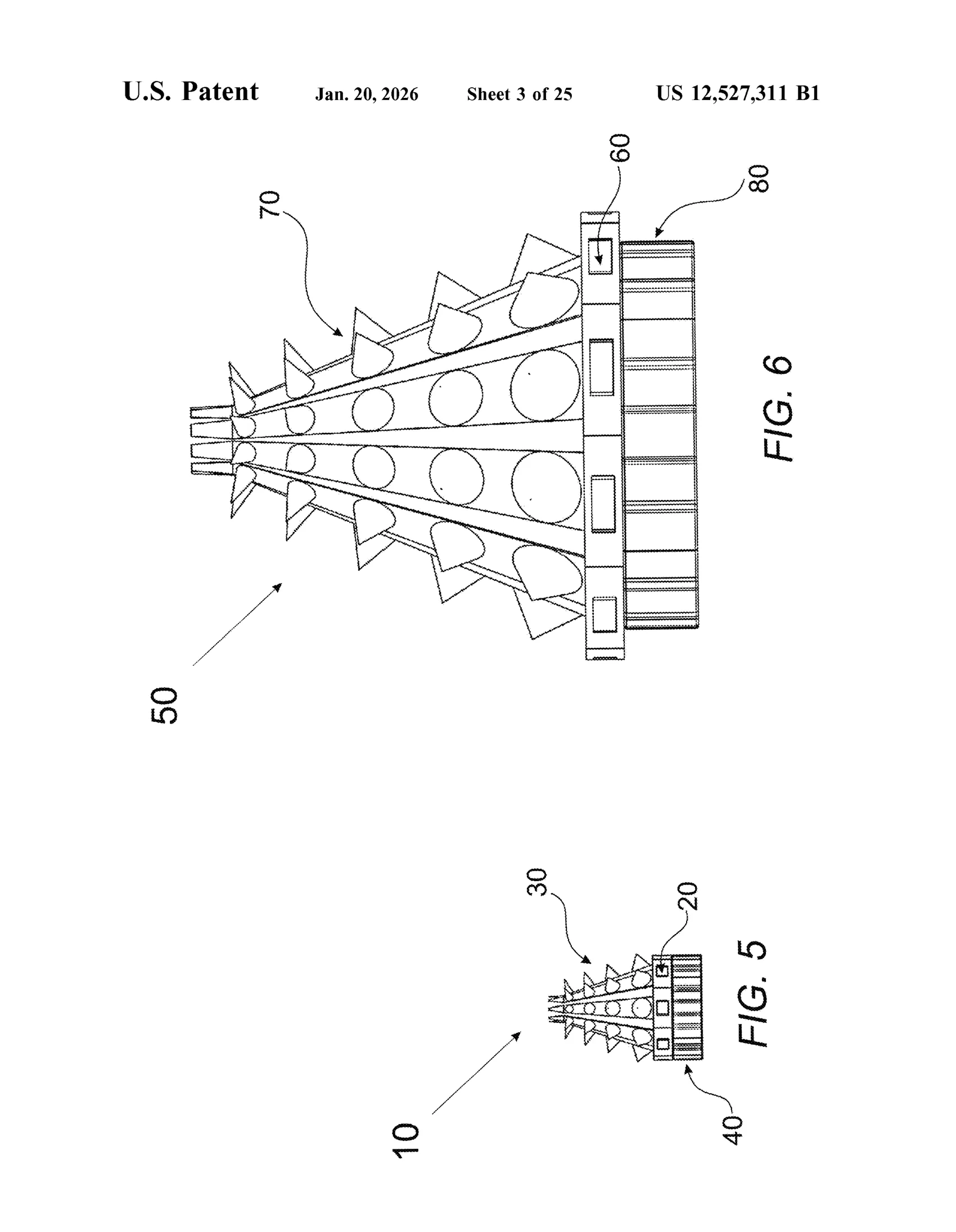

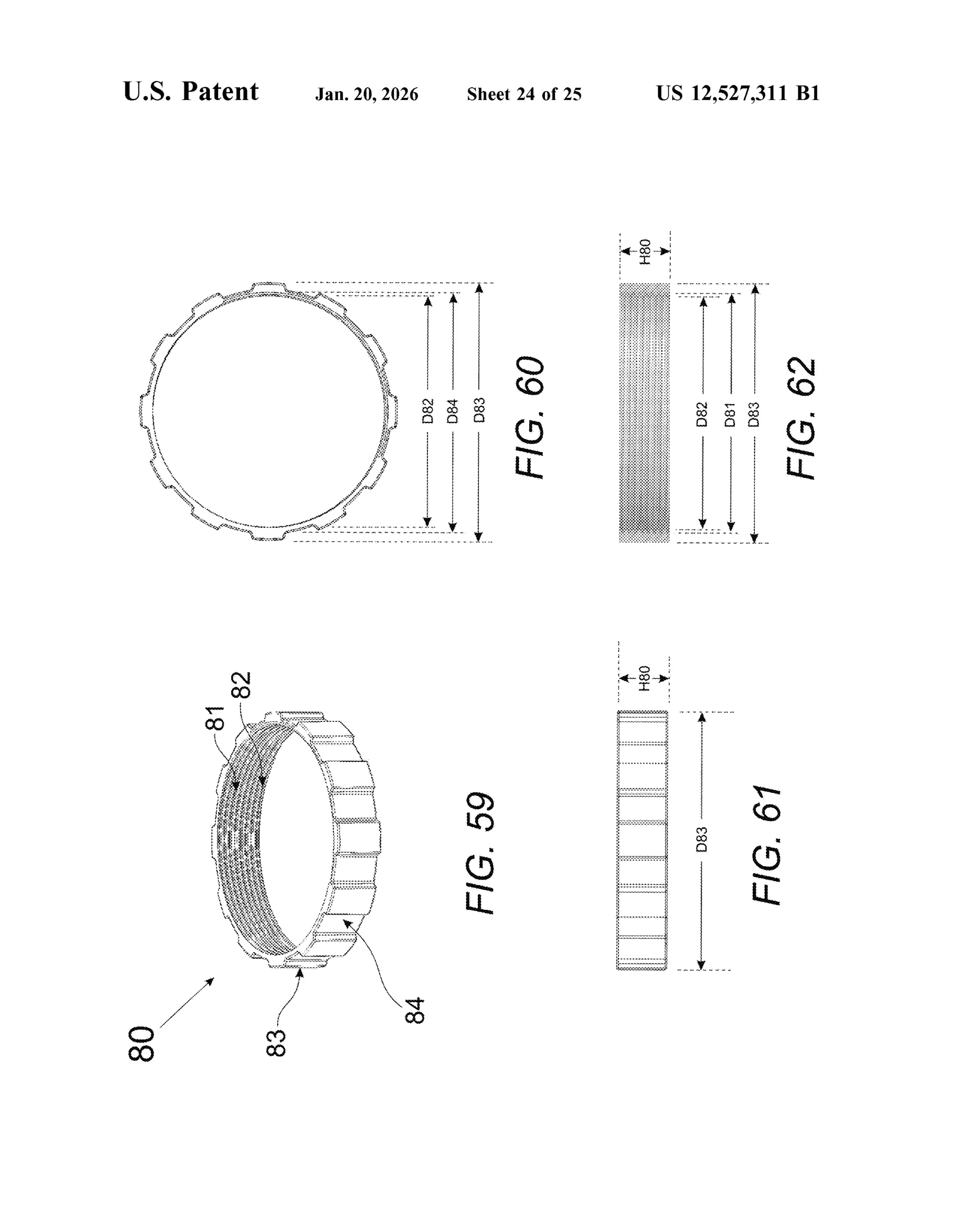

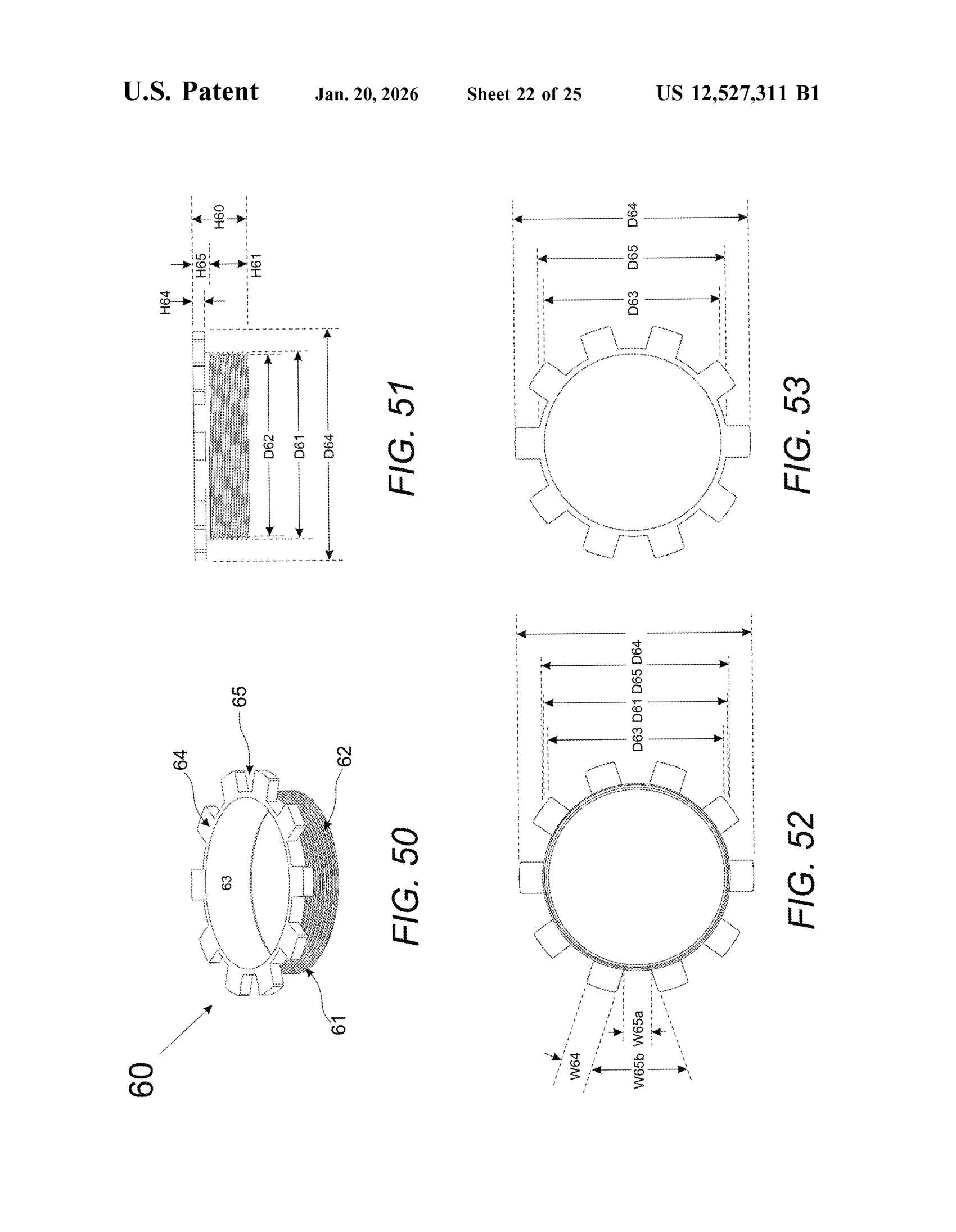

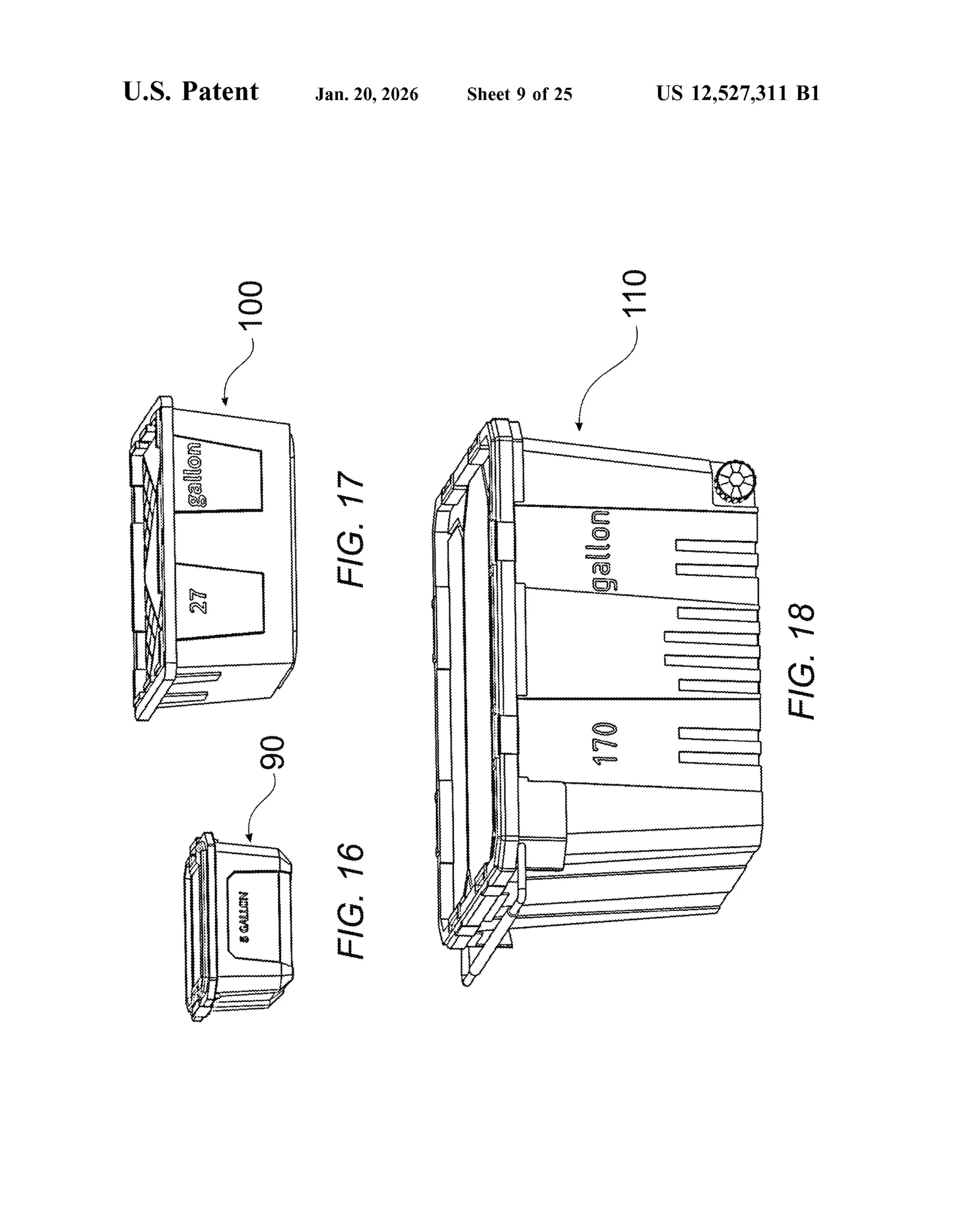

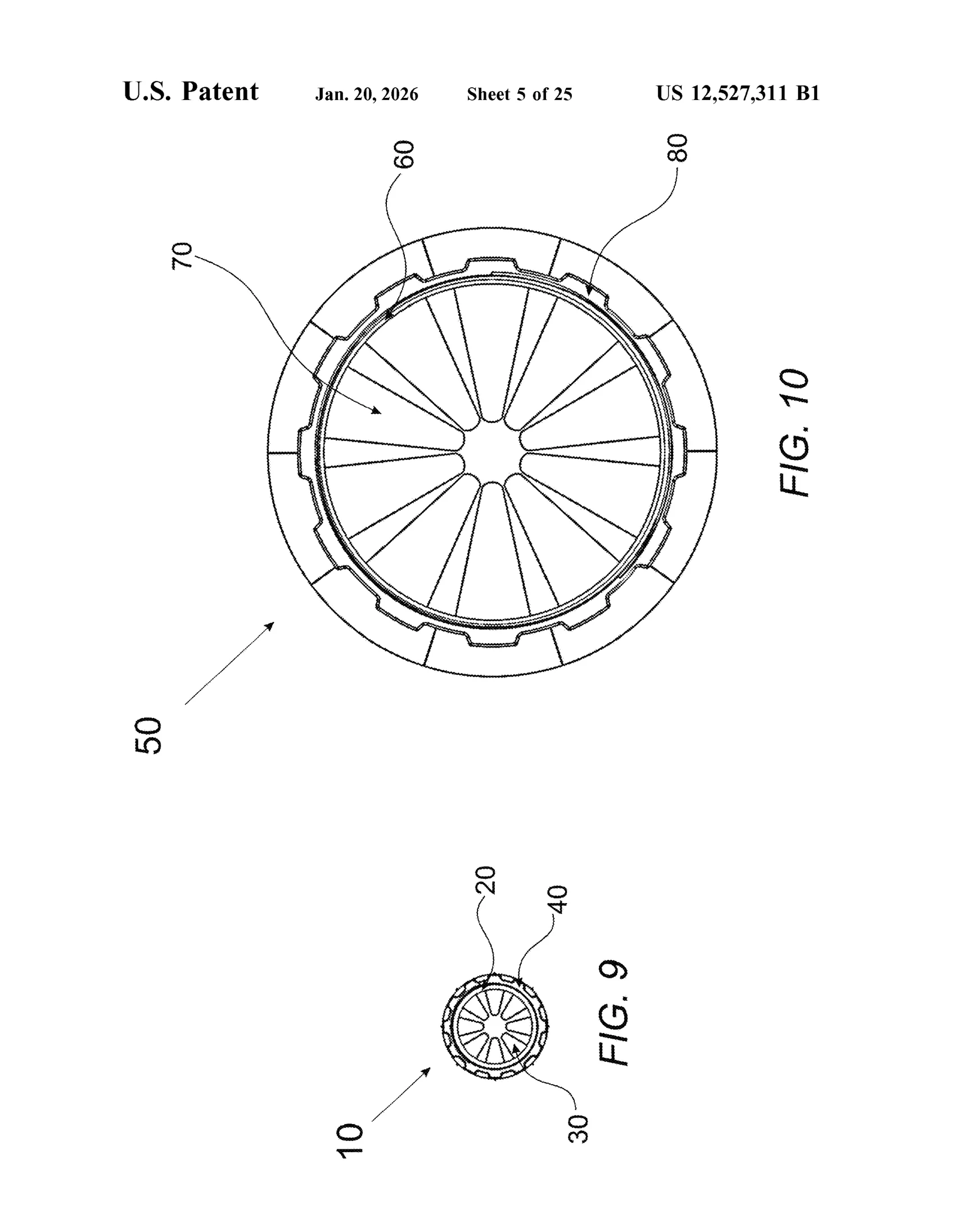

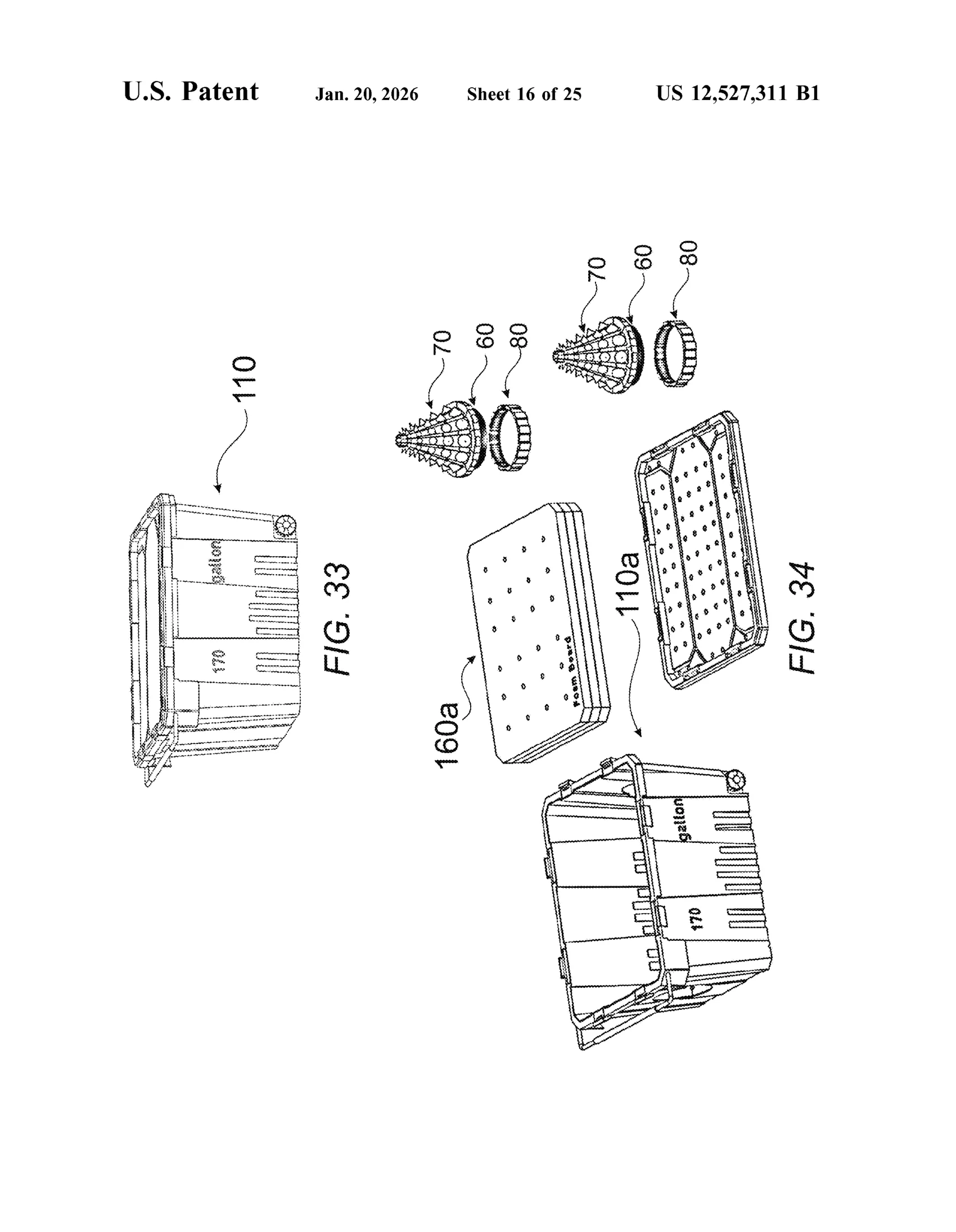

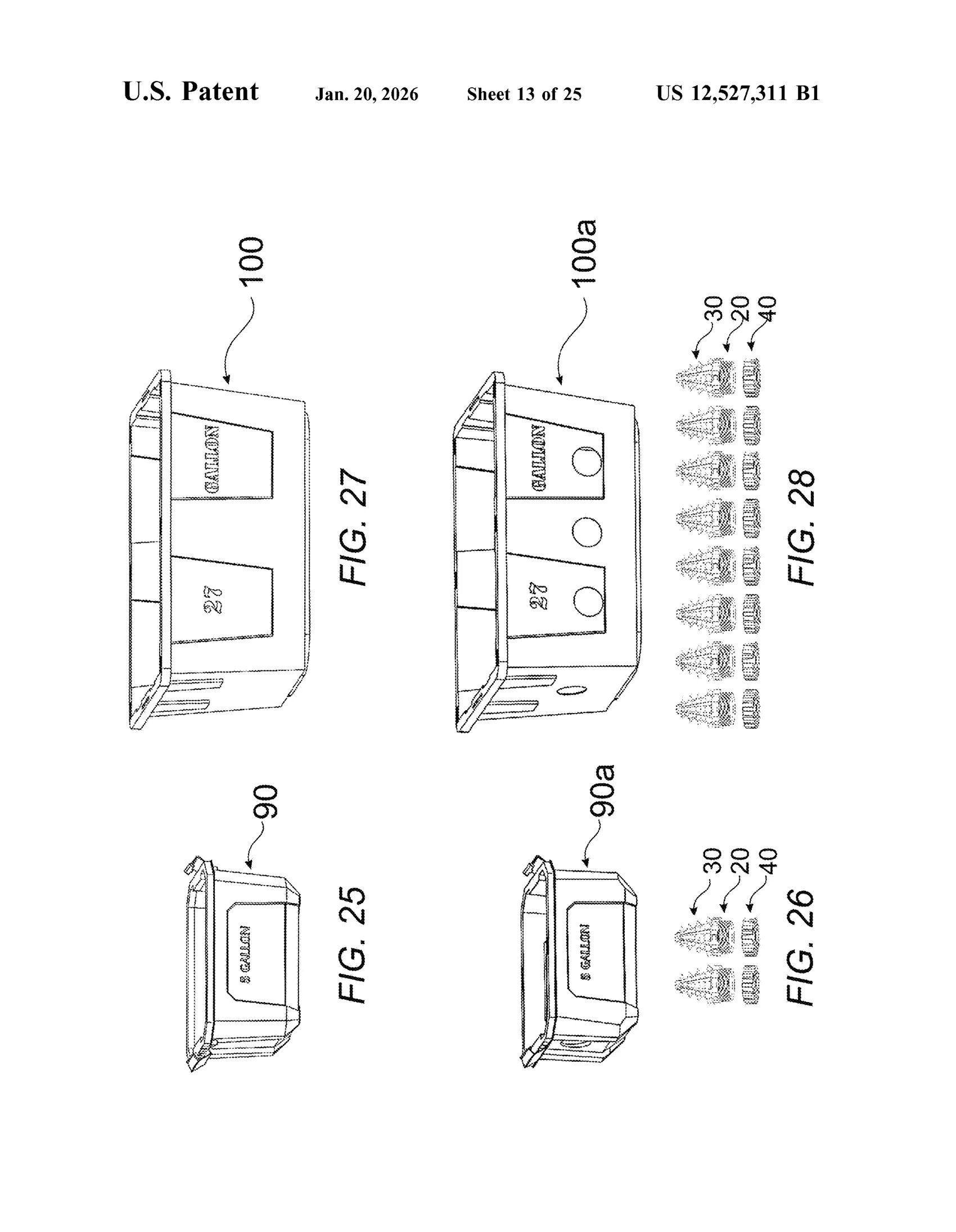

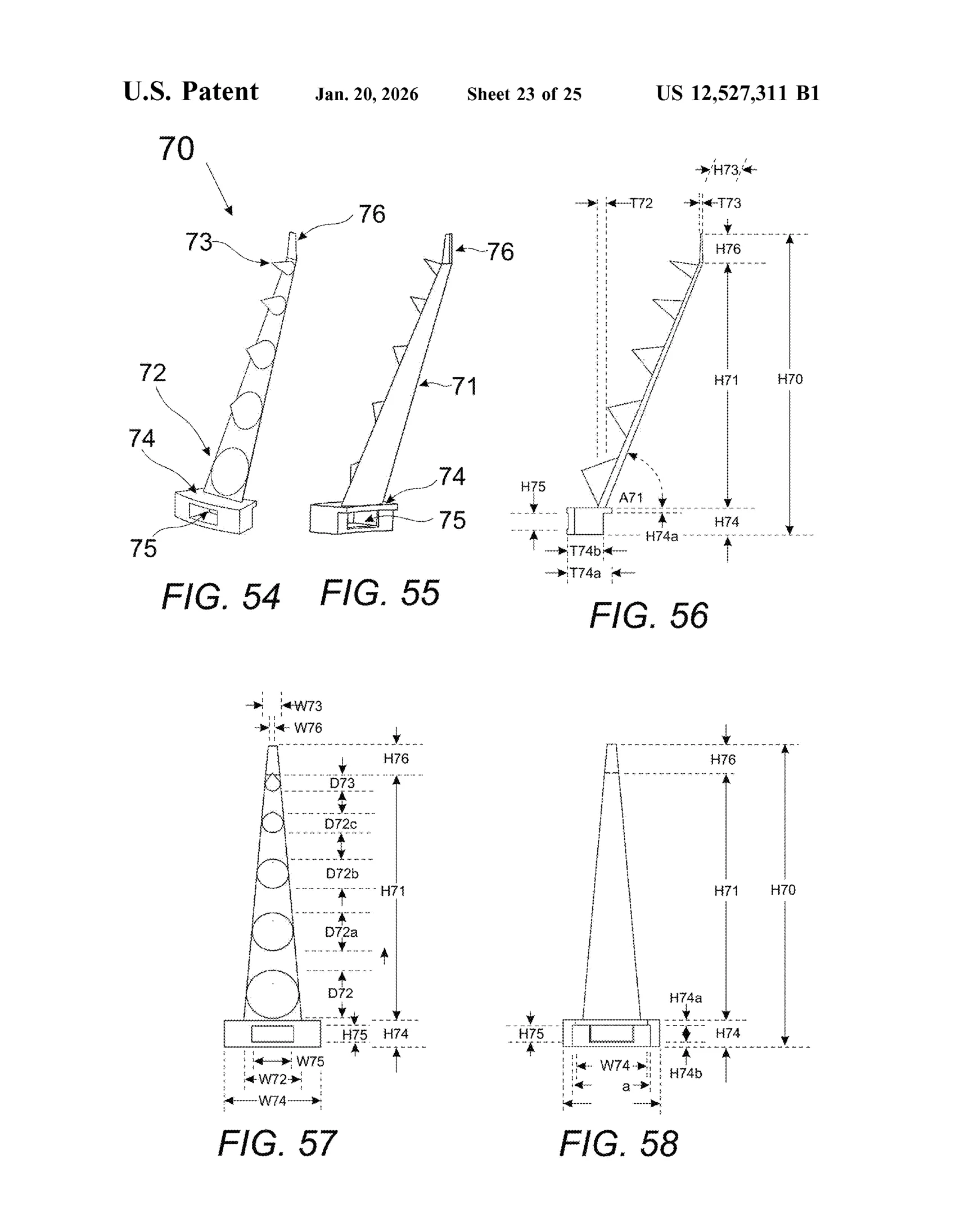

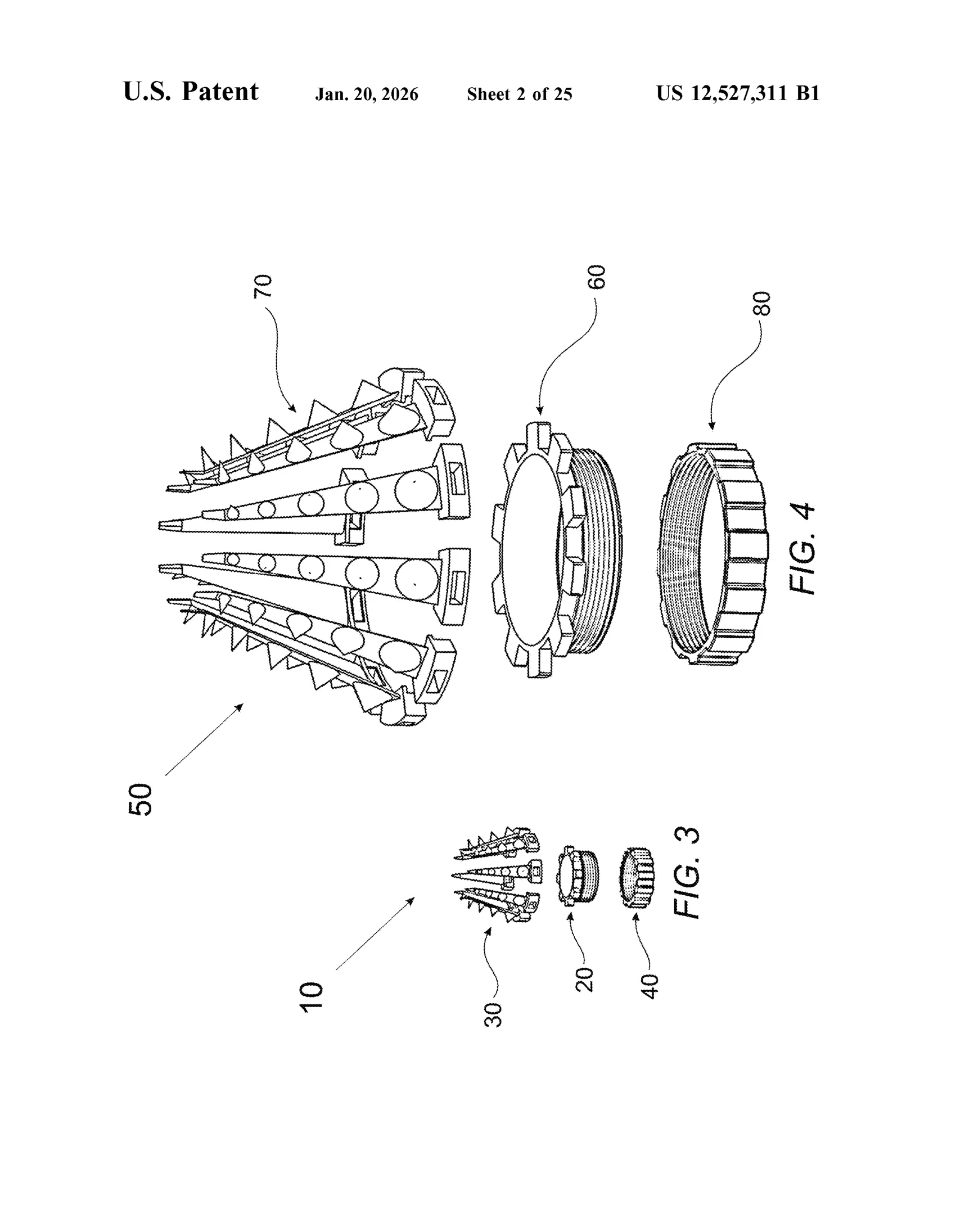

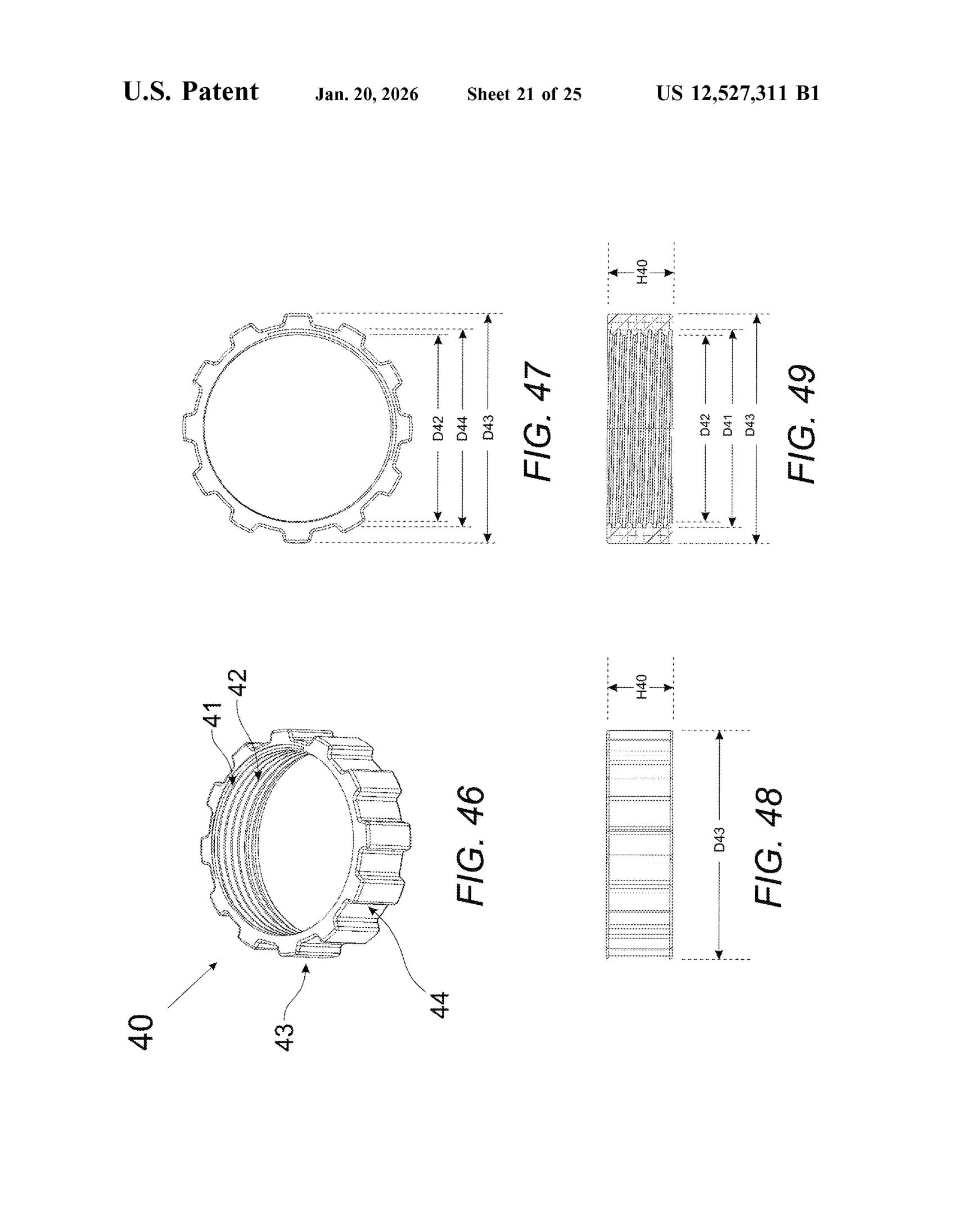

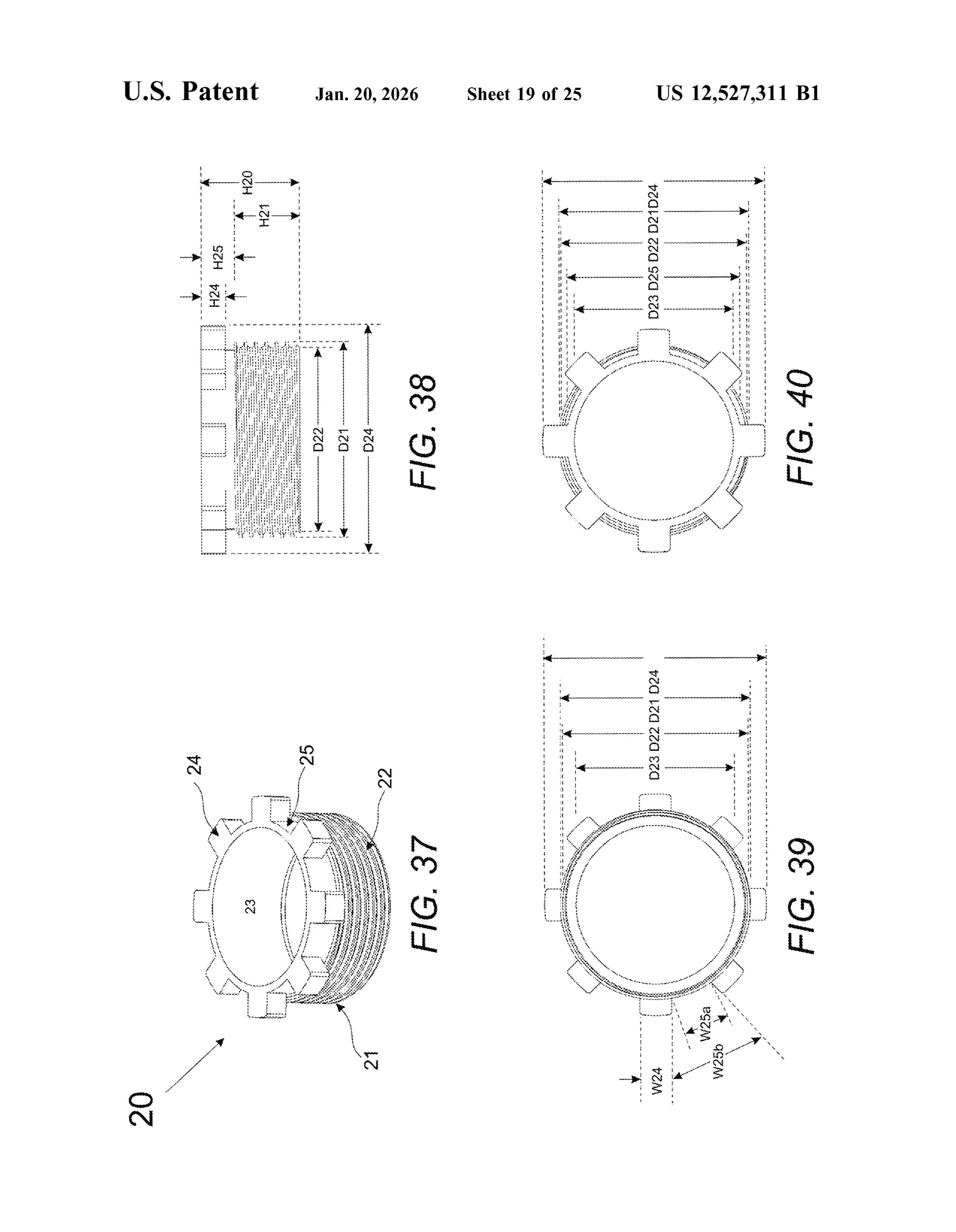

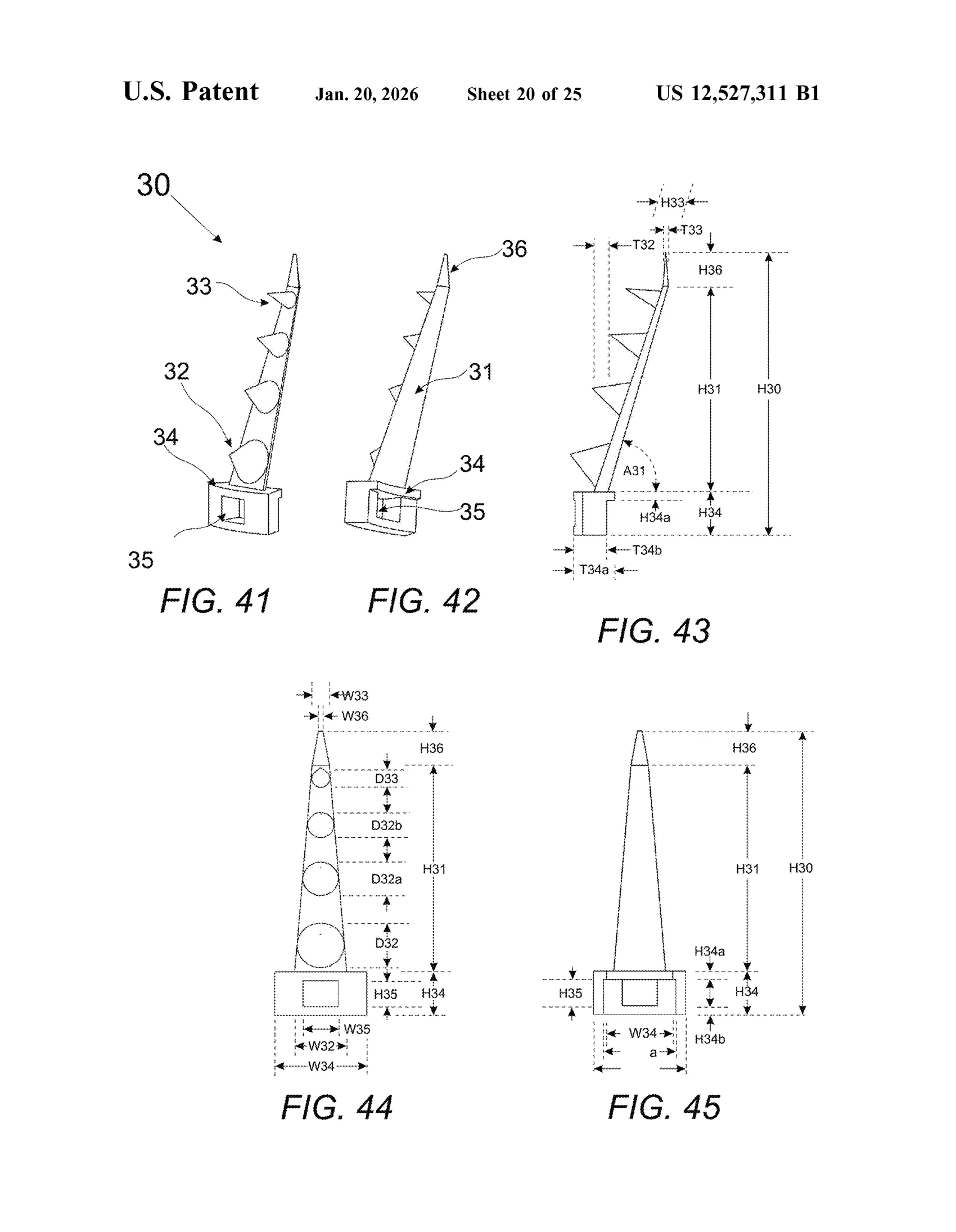

A threaded flange is inserted through a hole cut in a container such as a storage tote and secured from inside with a lock nut. Individual thorny spike elements snap into slots around the flange, forming a cone-shaped array pointing inward. The mouse pushes through the converging spikes to enter; the spikes flex inward to admit it and then bar its exit. The same components may be assembled at a larger scale, and the finished trap may be floated with foam or weighted to sink for use on fish.

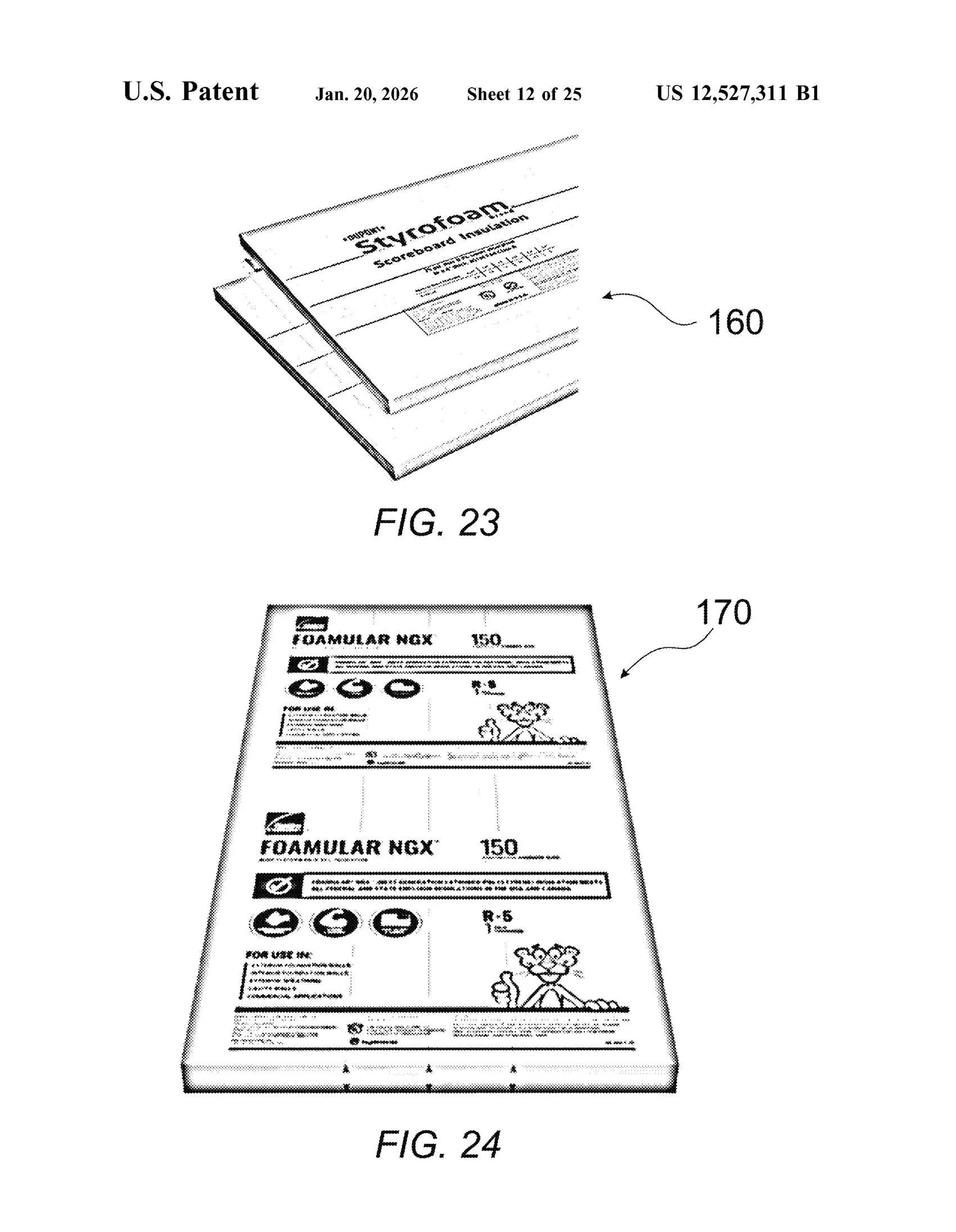

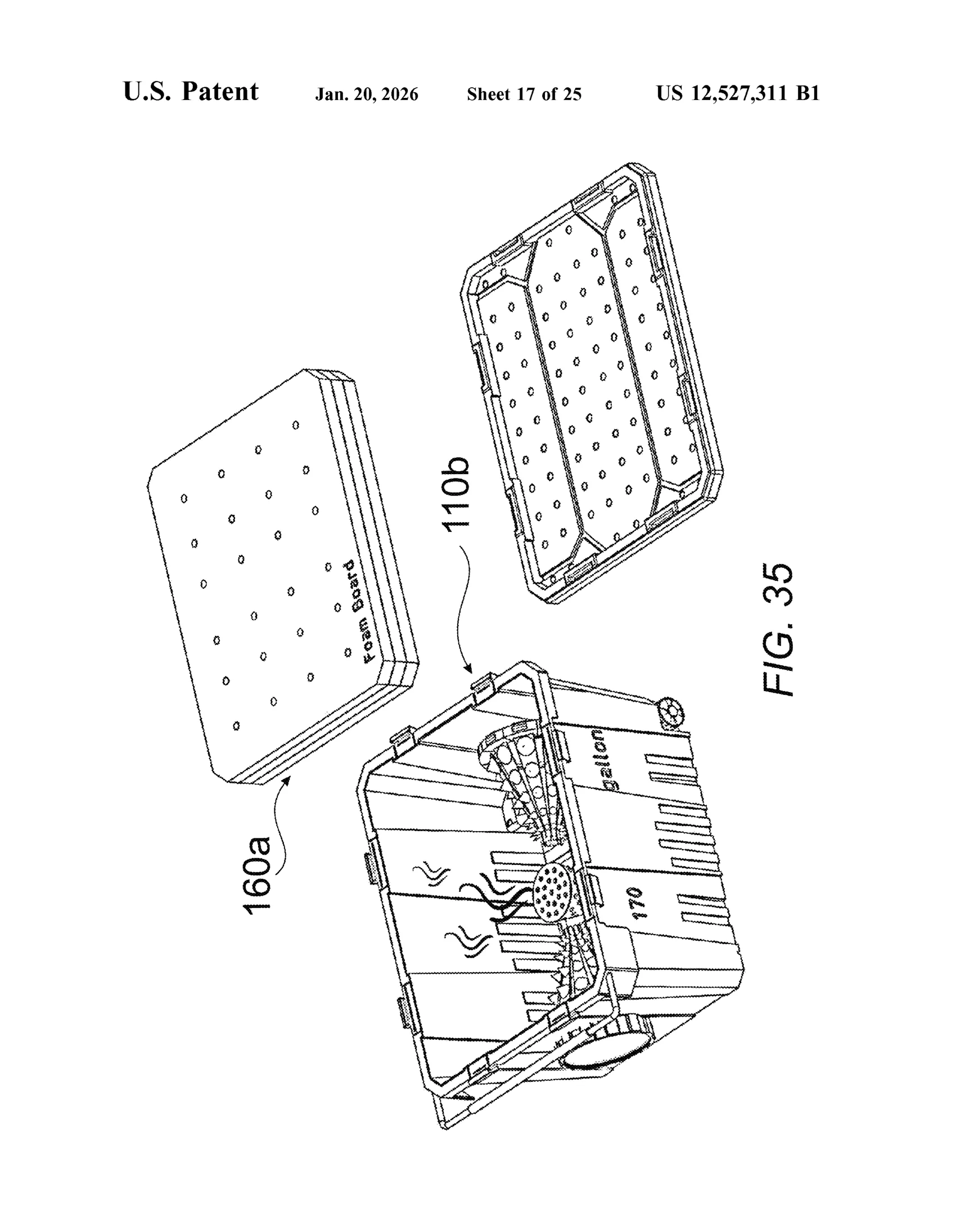

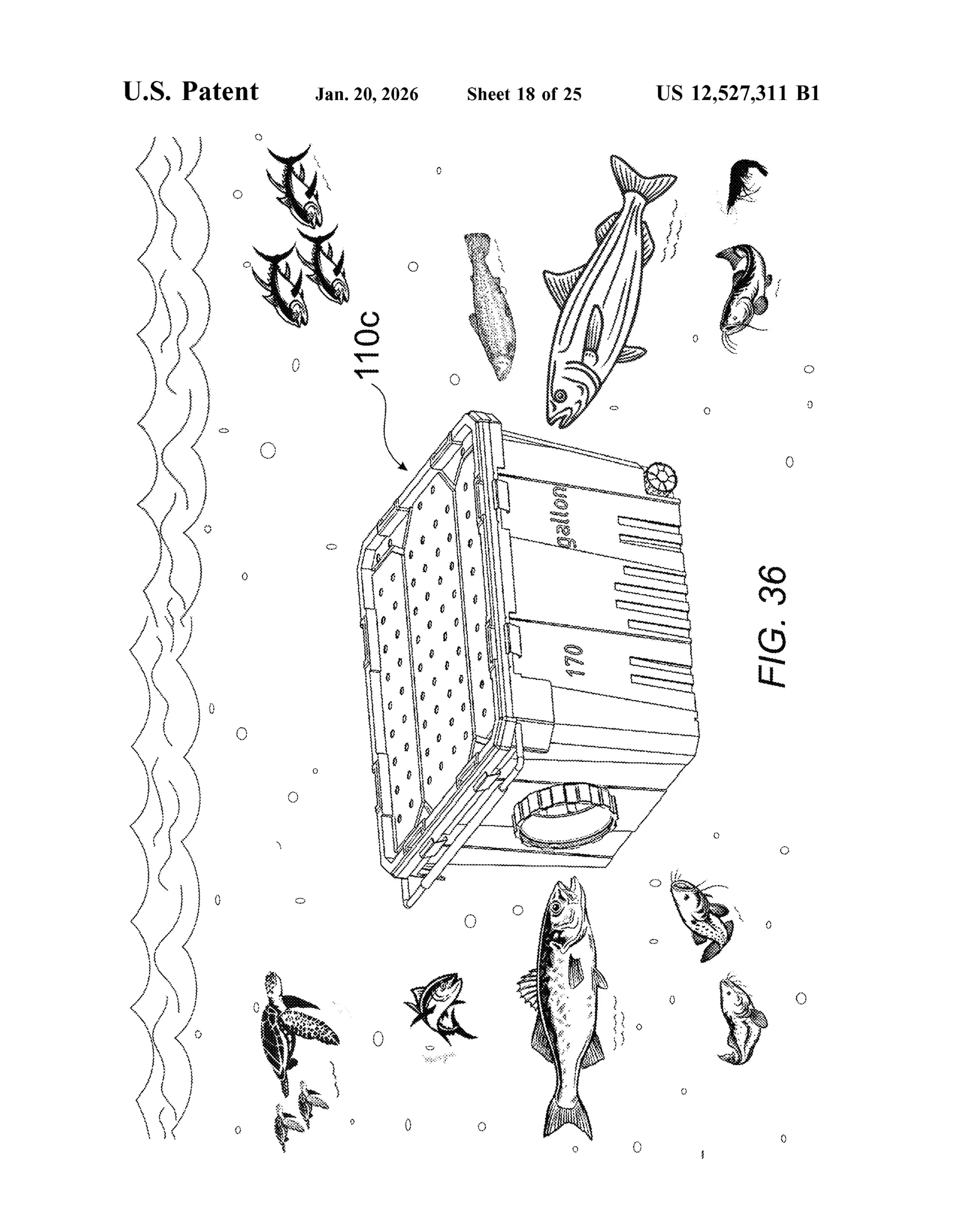

“For aquatic use, the resulting trap can be made buoyant with foam or weighted to sink.”— Nick Suteerawanit, from the specification

And the world did not beat a path to his door.
