ANIMAL TRAP

One trap for anything from a barnyard rat to a coyote.

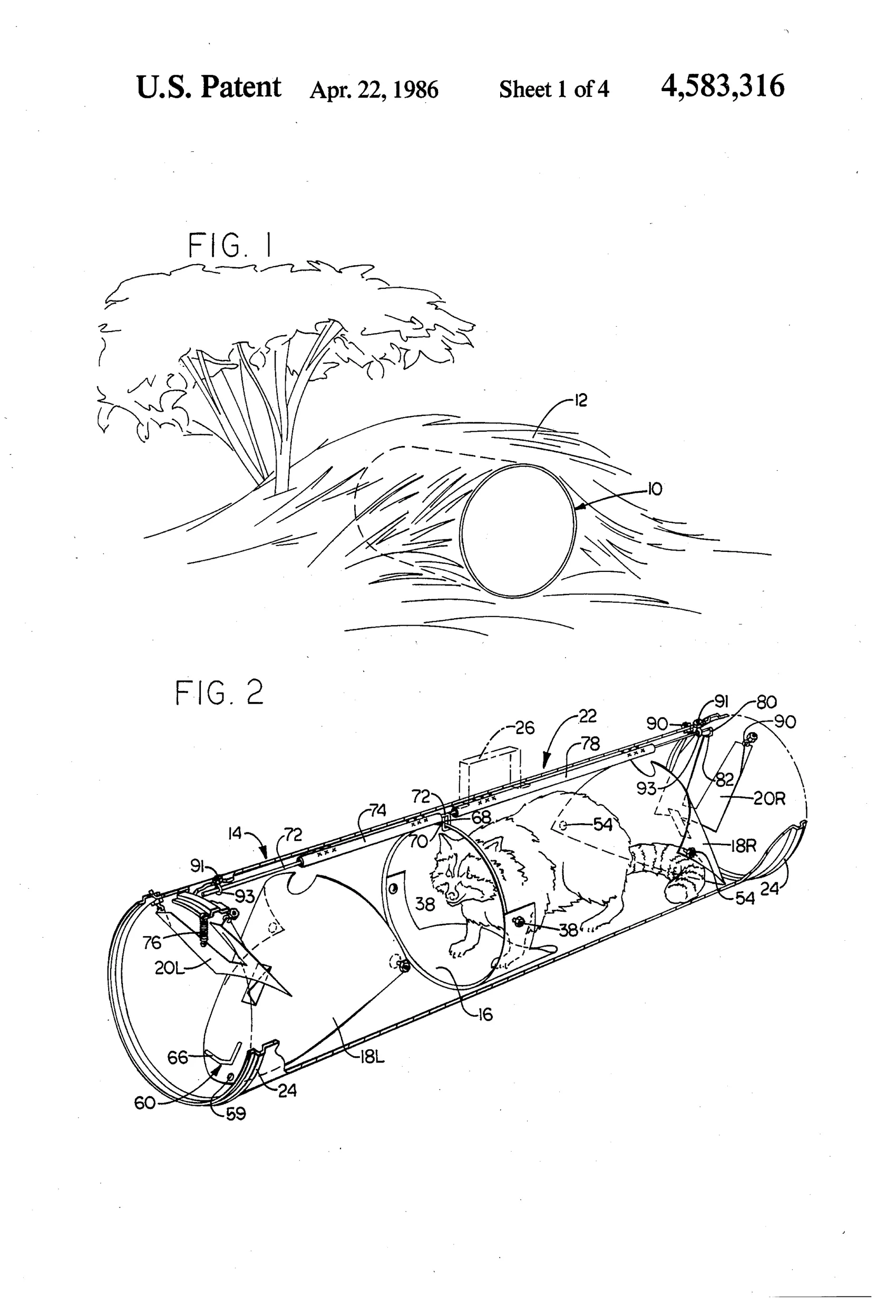

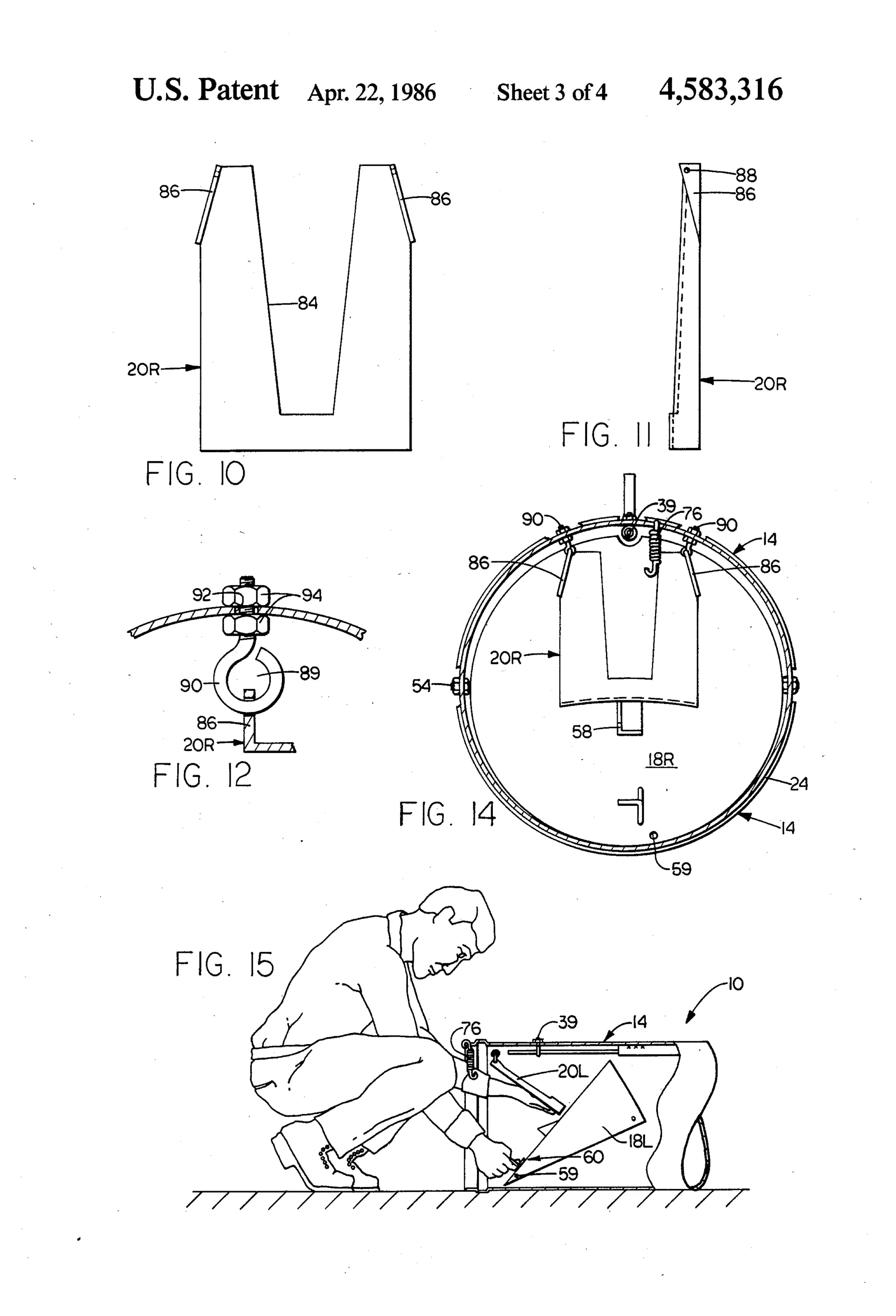

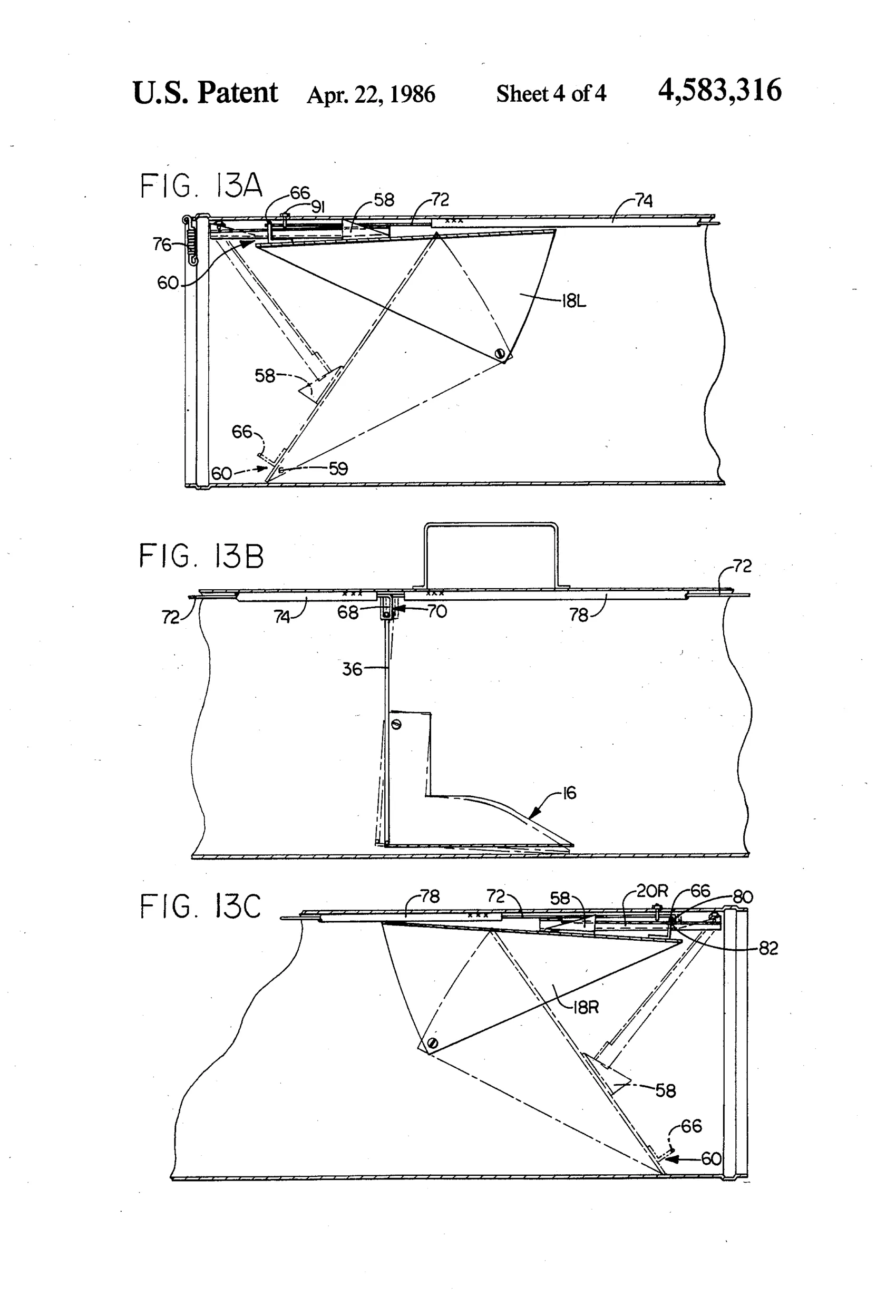

The animal enters either end of an open cylindrical casing, which is set into a hillside to resemble a hollow log. The animal steps on a treadle located near the center of the casing. The treadle displaces a trip wire running the length of the trap, releasing gravity-operated doors at both ends simultaneously. The doors fall closed and lock, confining the animal unharmed until the operator releases the lock by hand.

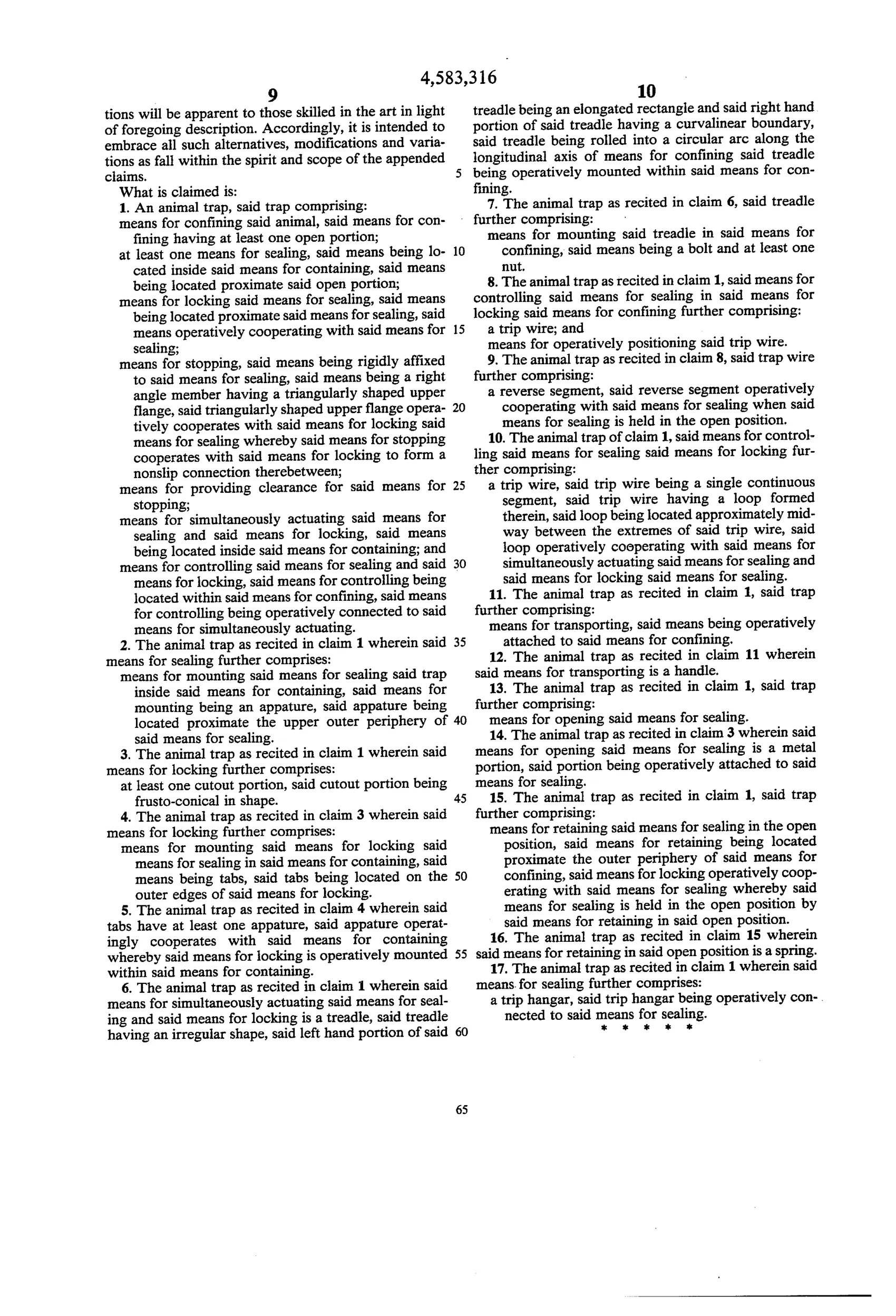

“It is still yet a further object of the present invention to provide a single seized animal trap for capturing animals ranging from a barnyard rat to a coyote.”— Thomas H. Holtgrefe, from the specification

And the world did not beat a path to his door.
