CONTACT SWITCH DEVICE

An electronic switch operated by the tongue of a rat.

PatentUS 3,111,608
PatentedNovember 19, 1963
InventorRobert A. Boenning
OfBaltimore, Maryland

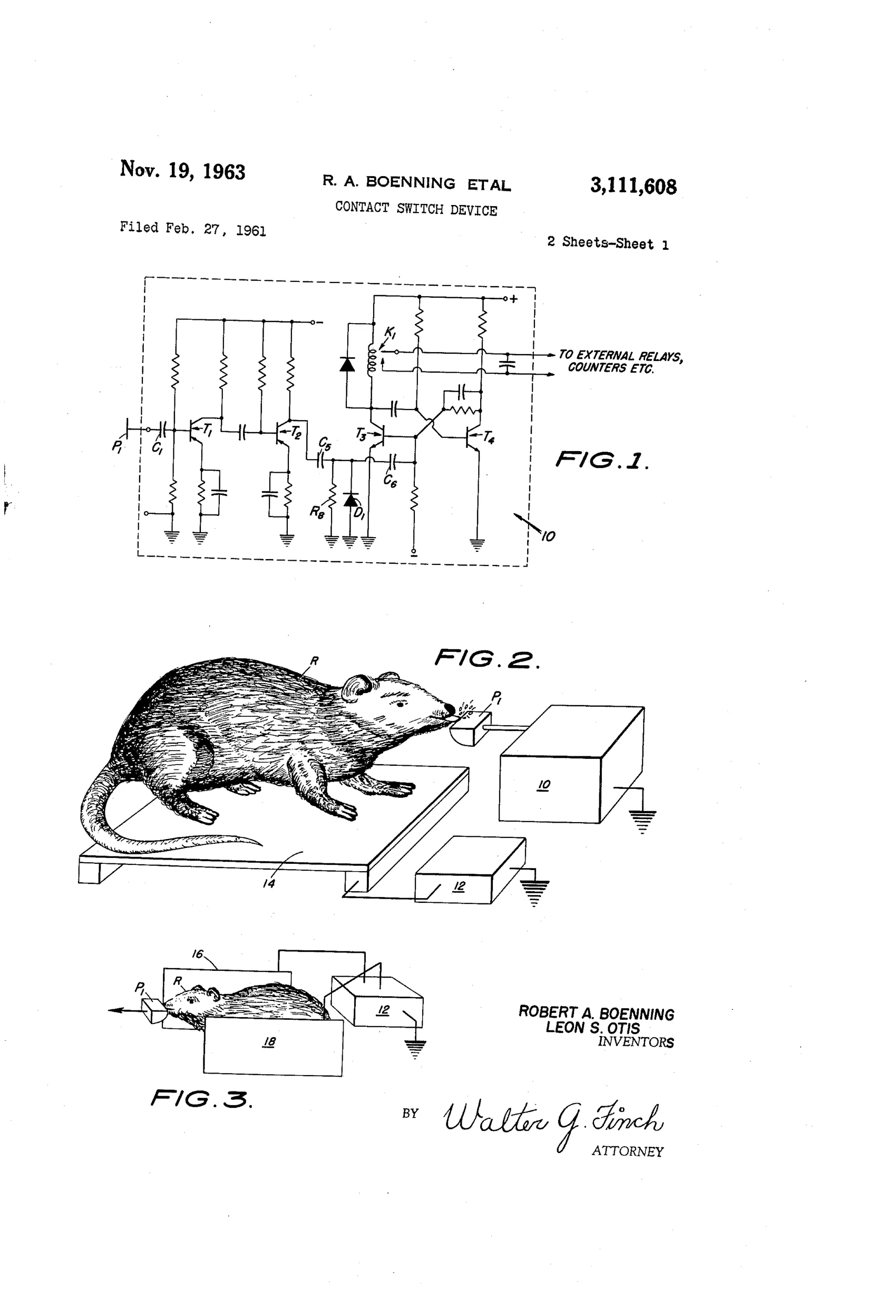

Patent drawing showing an electronic circuit schematic with transistors and a relay, alongside an illustration of a rat touching a metal contact plate connected to a boxed circuit labeled '10' on a grounded metal floor.
click to zoom

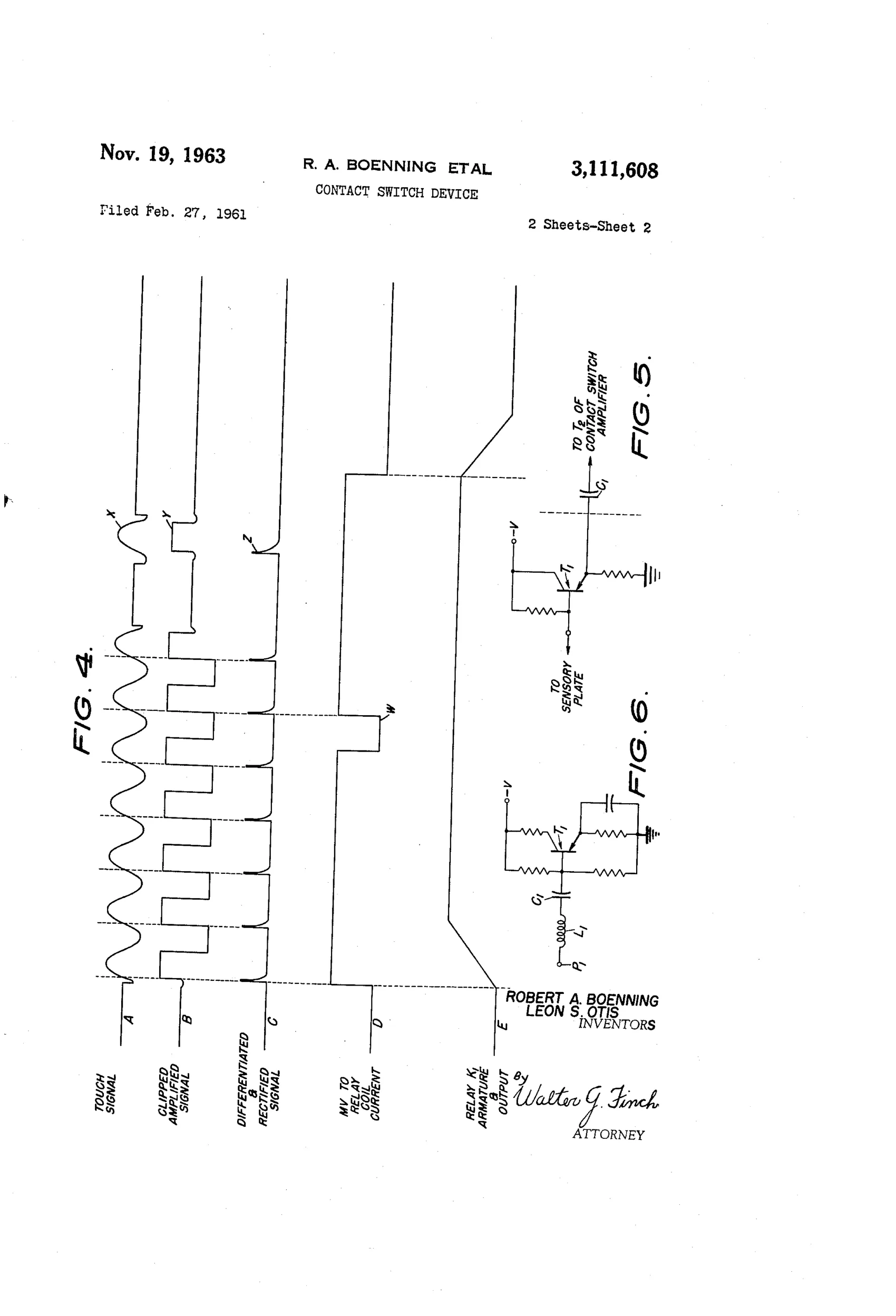

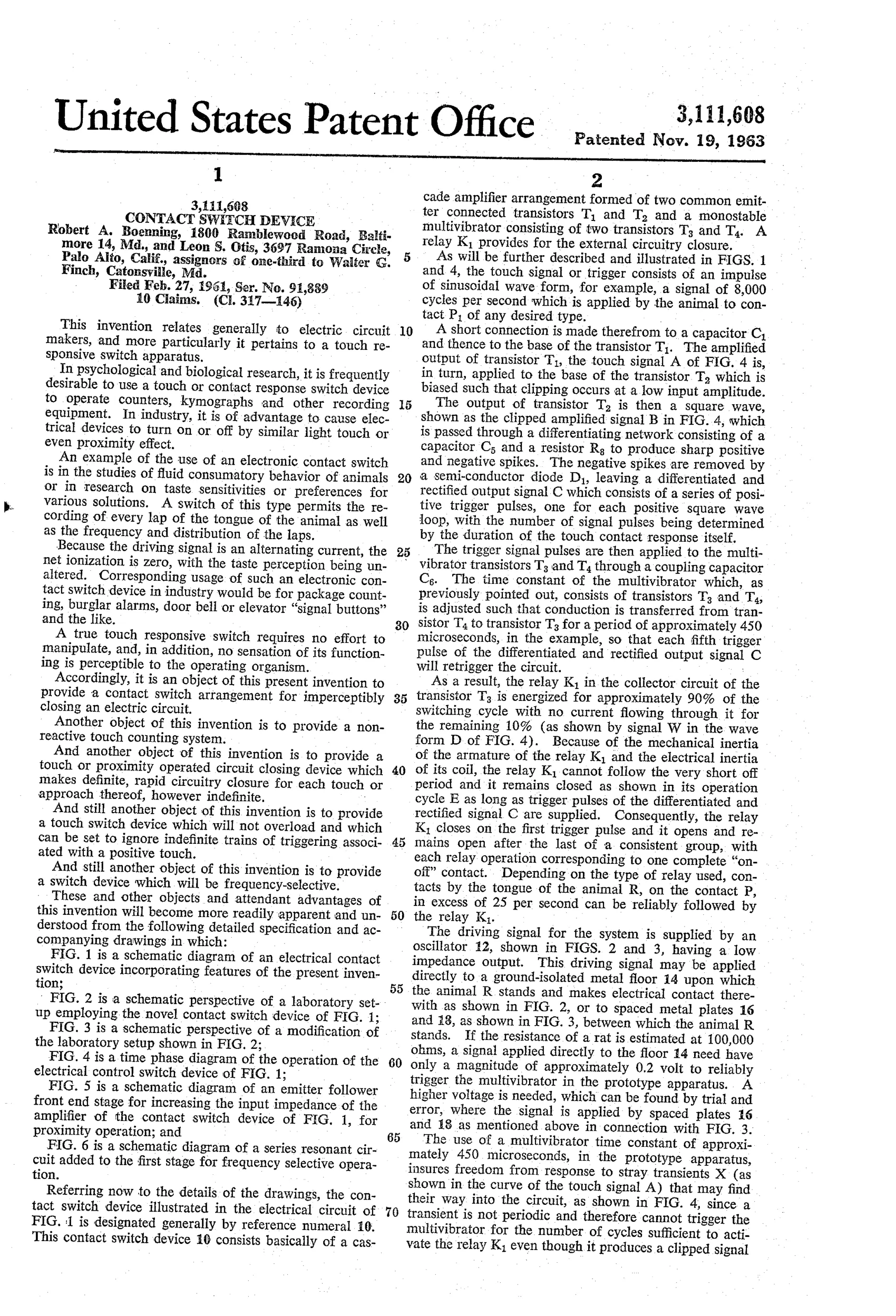

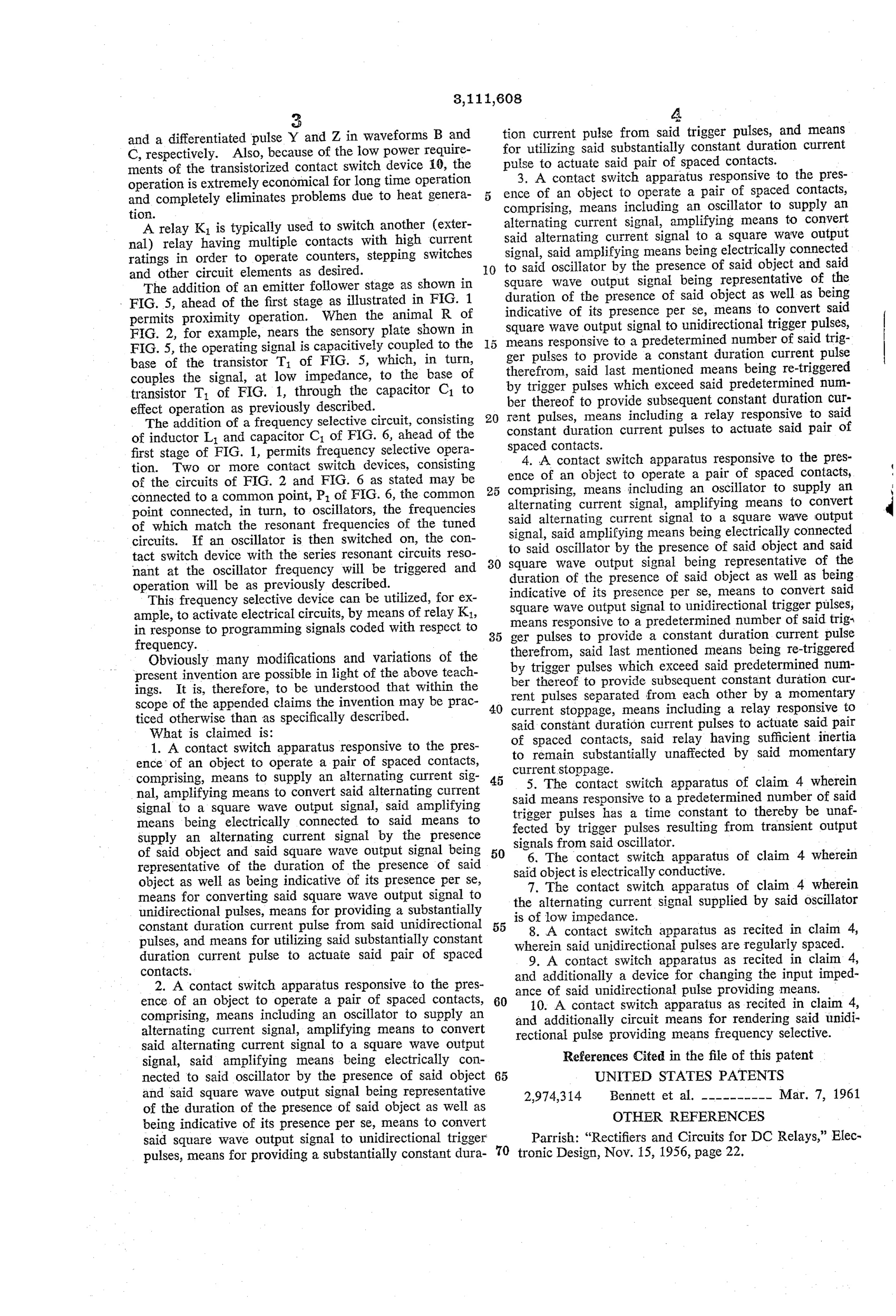

Sheet 1Sheet 2Sheet 3Sheet 4

The rat stands on a metal floor carrying an alternating current signal of 8,000 cycles per second. When the rat's tongue touches a contact plate, the signal passes through its body into a transistor amplifier, which clips it into a square wave and converts it to trigger pulses. The pulses retrigger a multivibrator that holds a relay closed for as long as the tongue remains in contact. The relay drives external counters, which record every lap of the tongue at rates in excess of 25 per second.

“A true touch responsive switch requires no effort to manipulate, and, in addition, no sensation of its functioning is perceptible to the operating organism.”— Robert A. Boenning, from the specification

And the world did not beat a path to his door.
