And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

TRAP

The trapped animal's own struggling triggers the trap's second stage.

PatentUS 2,536,545
PatentedJanuary 2, 1951
InventorAsbjorn Hagen
OfKississing, Manitoba, Canada

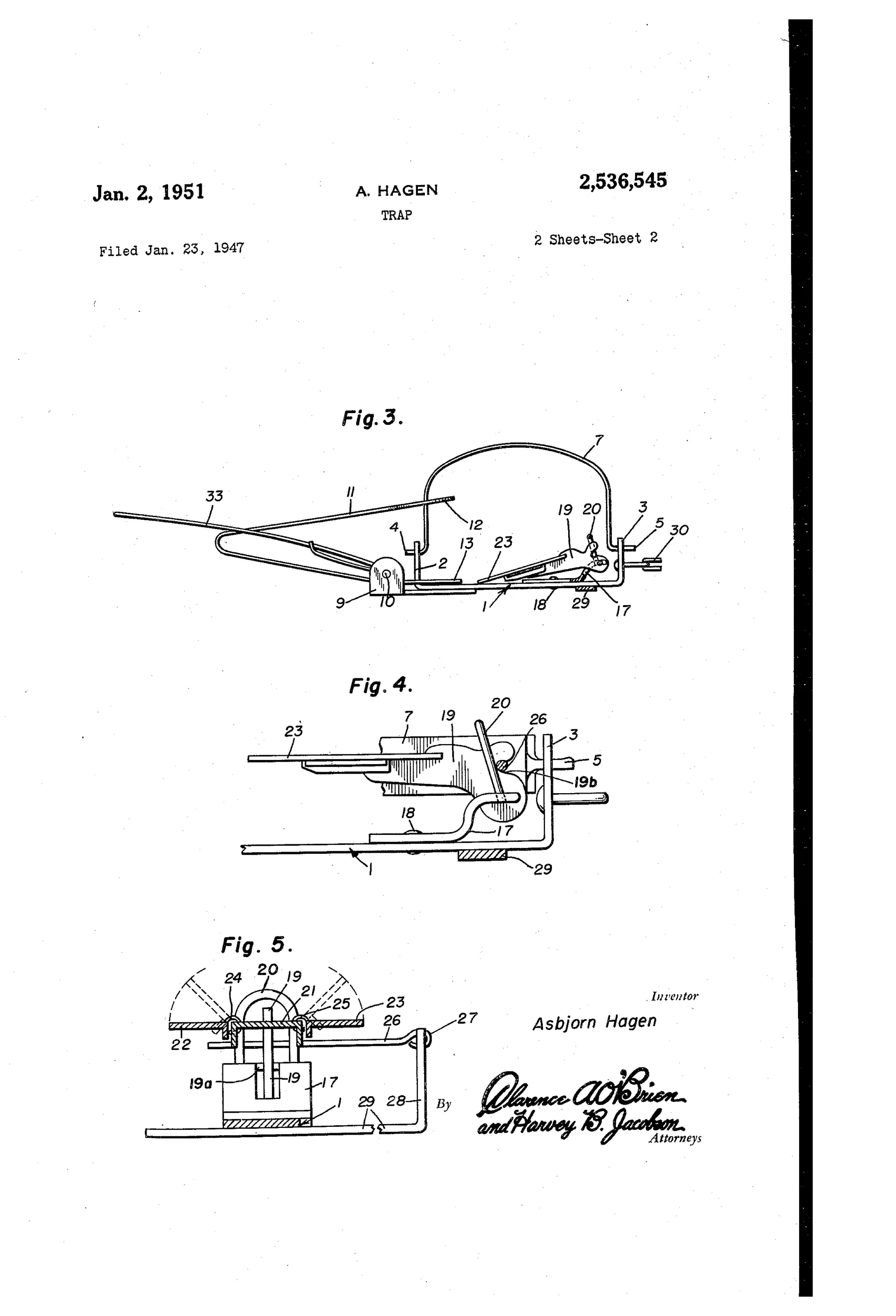

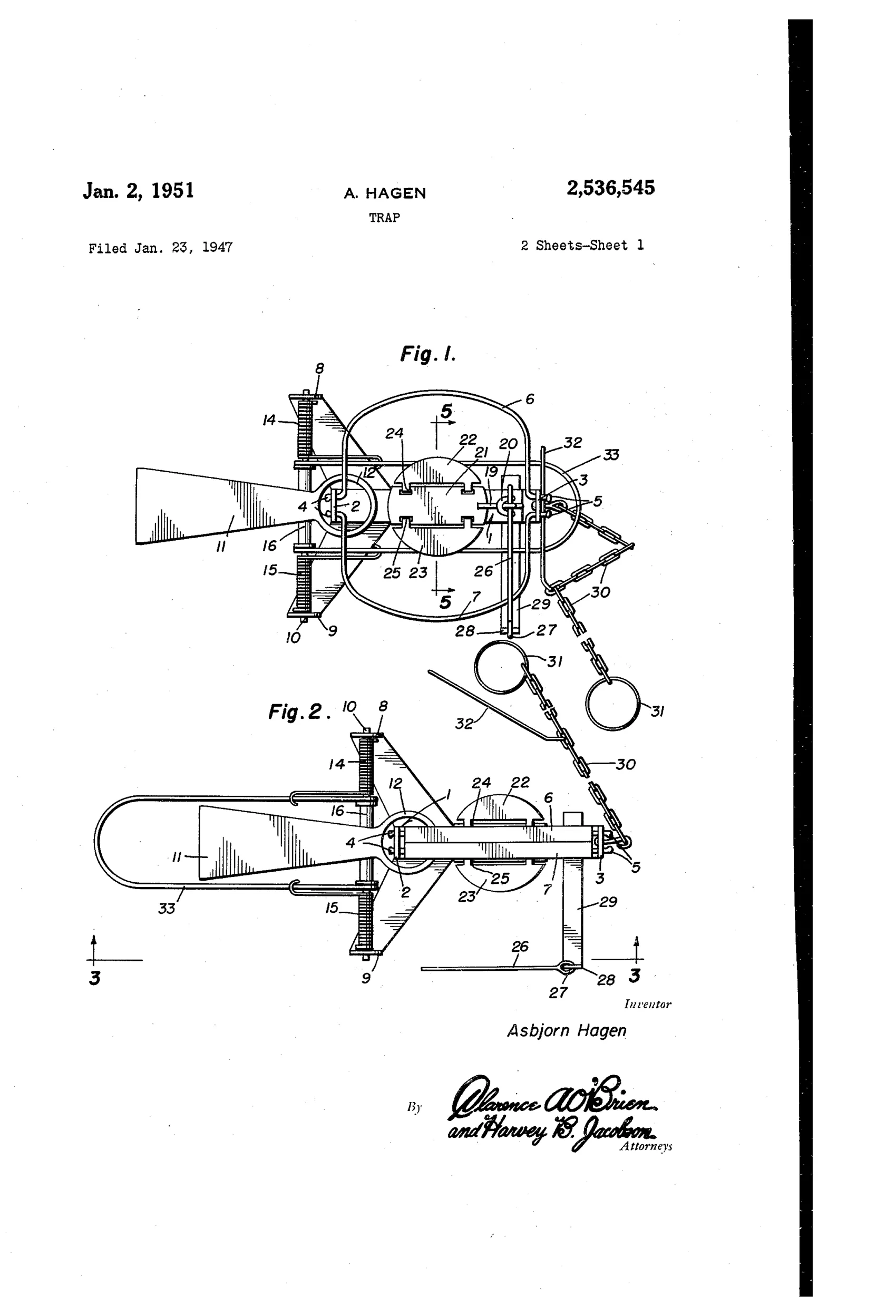

Patent drawing of a Y-shaped animal trap showing spring-loaded U-shaped jaws, a hinged treadle pan, locking pin mechanism, and a pivoting guard beneath the jaws, connected to a chain with rings for tethering.
click to zoom

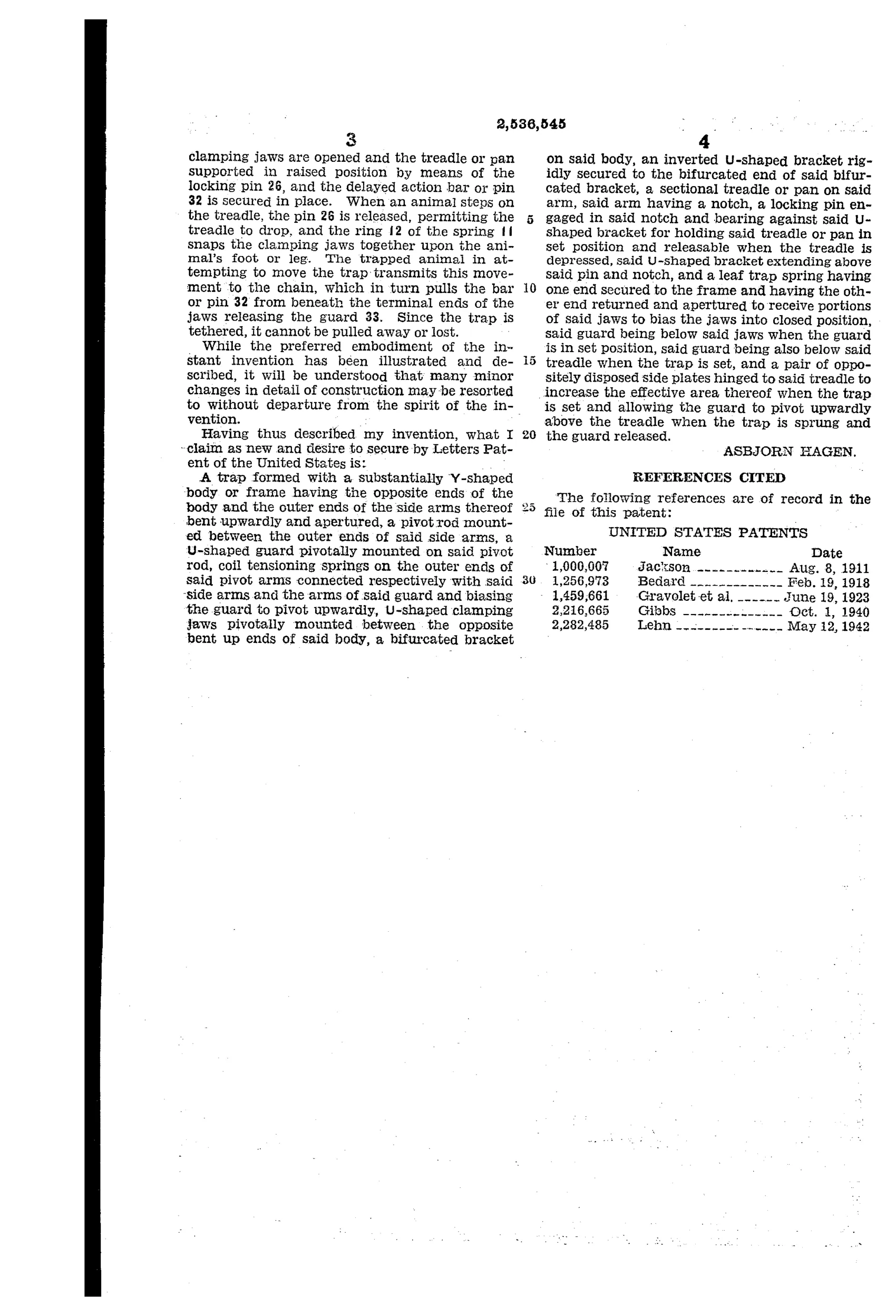

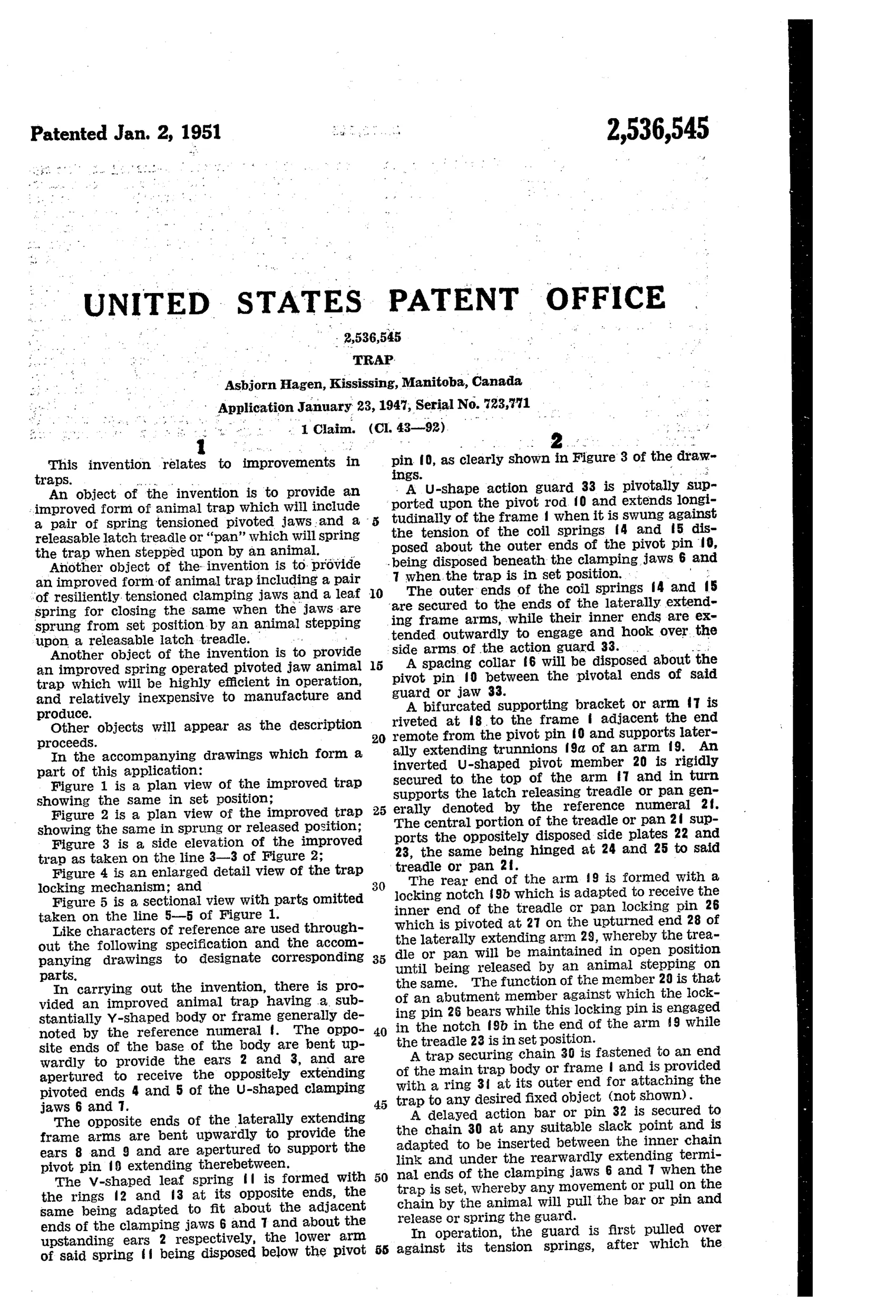

Sheet 1Sheet 2Sheet 3Sheet 4

An animal steps on the treadle, which releases a locking pin from a notch in the supporting arm. A V-shaped leaf spring then snaps the U-shaped clamping jaws together upon the animal's foot or leg. As the animal attempts to move the trap, it pulls the tether chain, which withdraws a delayed-action bar from beneath the jaws and releases a spring-tensioned guard that pivots upward over the treadle. The trap remains fastened to a fixed object by the chain.

“The trapped animal in attempting to move the trap transmits this movement to the chain, which in turn pulls the bar or pin 32 from beneath the terminal ends of the jaws releasing the guard 33. Since the trap is tethered, it cannot be pulled away or lost.”— Asbjorn Hagen, from the specification

And the world did not beat a path to his door.
