And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

ANIMAL TRAP

The doorway itself closes on the mouse, with serrated edges.

PatentUS 2,506,055
PatentedMay 2, 1950
InventorMerle K. Benson
OfStevensville, Michigan

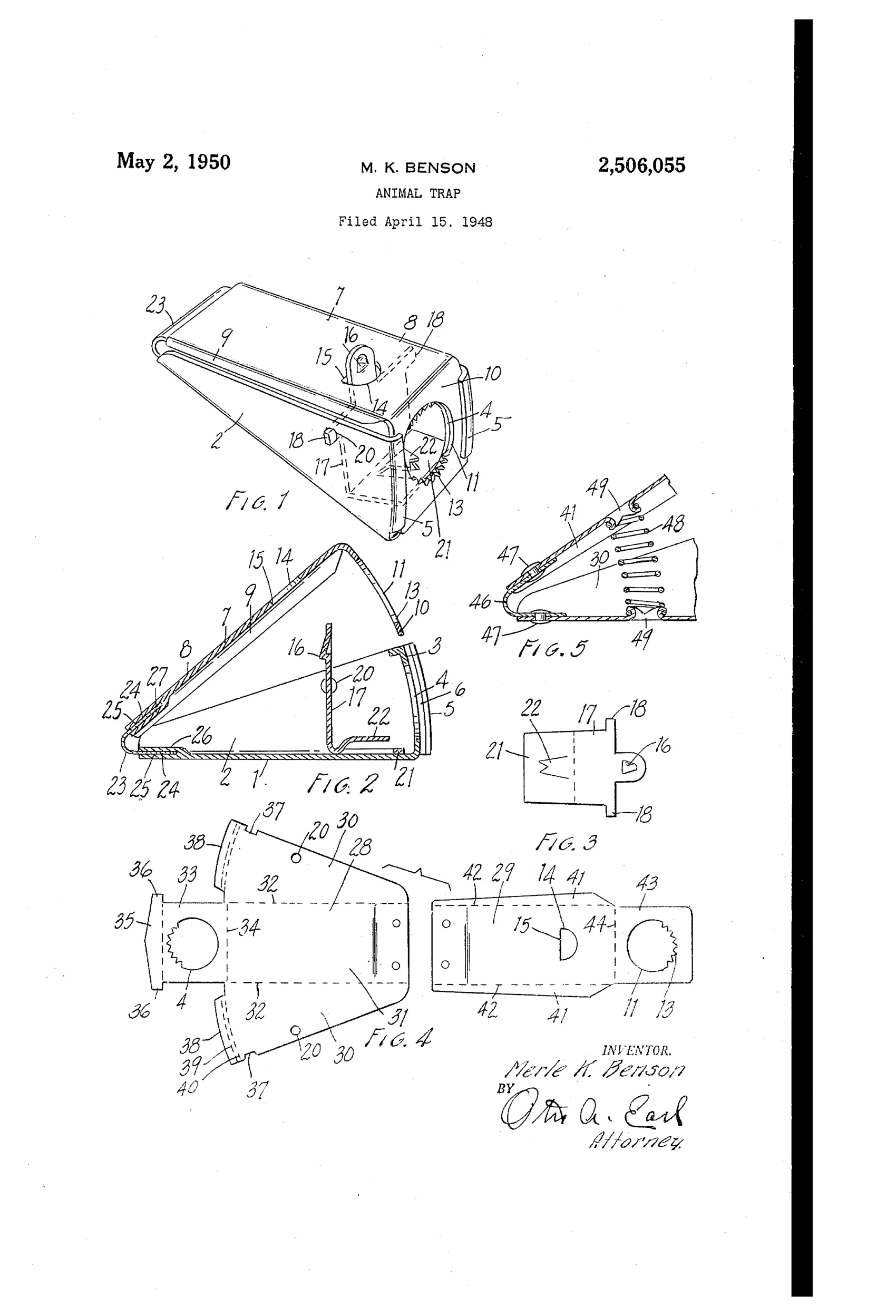

Patent drawing of a wedge-shaped mouse trap showing a sliding jaw member with a serrated opening, a fixed front wall, a pivoting trigger with bait tongue, and sheet-metal blank patterns for assembly.
click to zoom

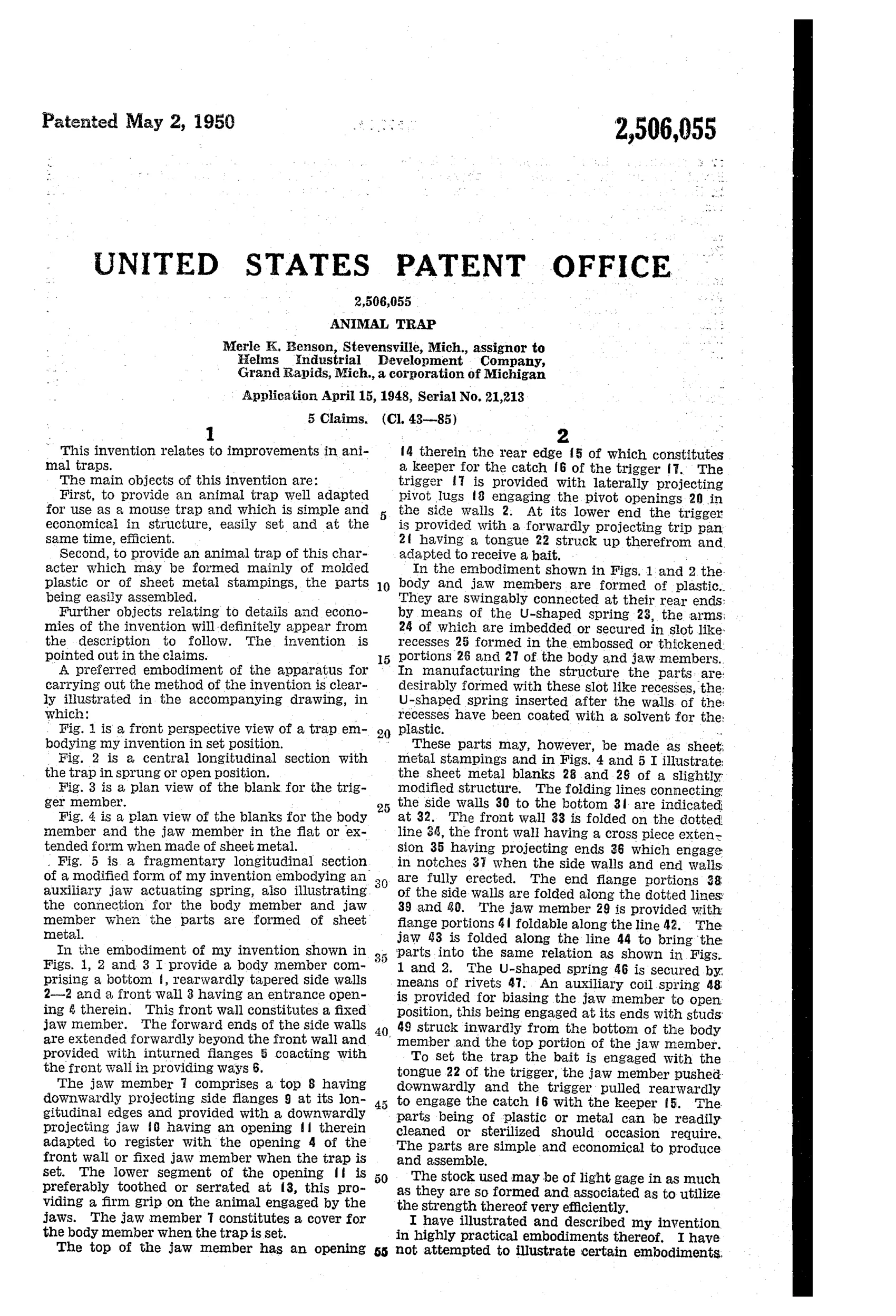

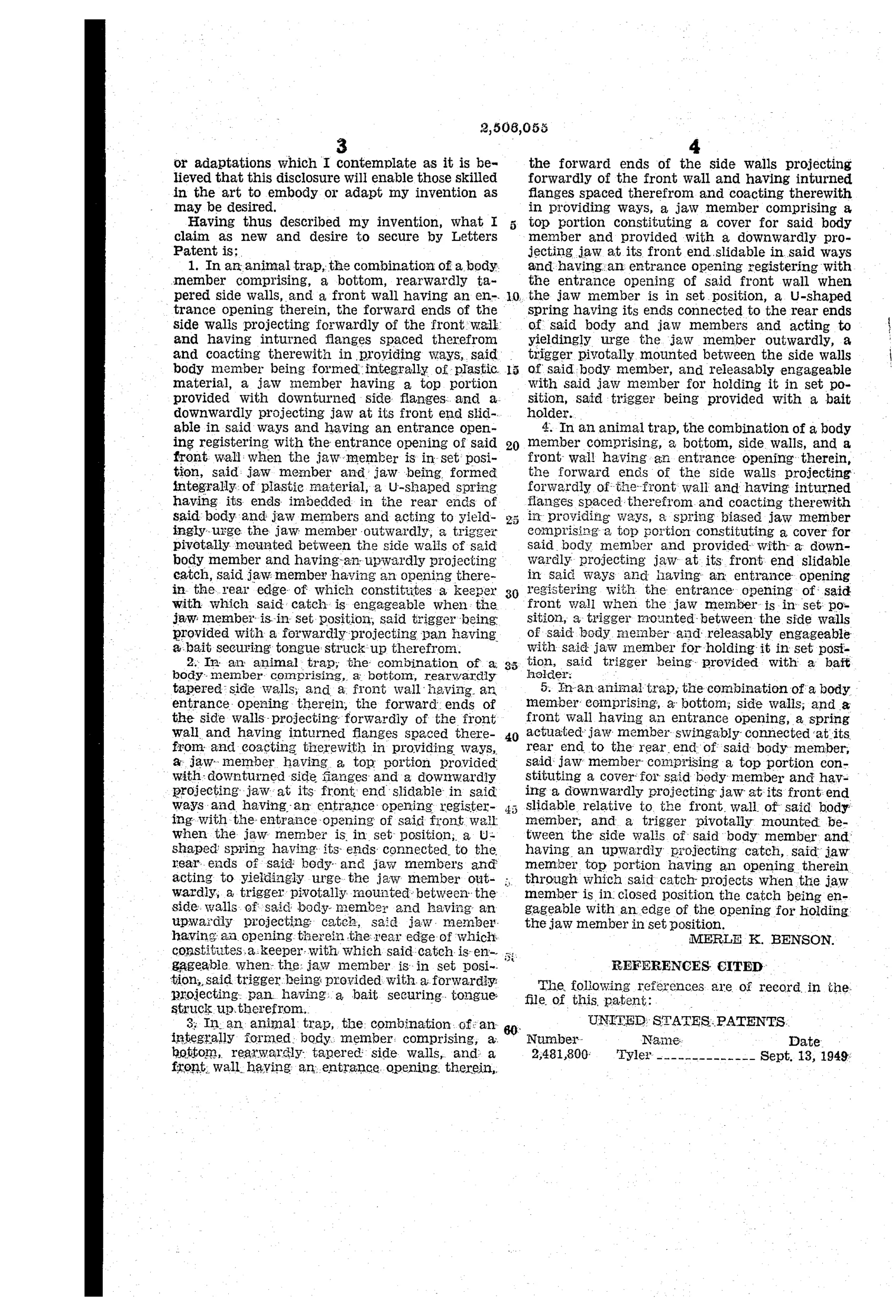

Sheet 1Sheet 2Sheet 3

The mouse enters through an opening in the front wall and disturbs a bait tongue on the trigger pan. The trigger releases a catch, freeing a jaw member that slides in guide ways along the body. A U-shaped spring snaps the jaw across the entrance opening, closing it against the fixed front wall. The lower edge of the jaw opening is serrated to grip the animal caught between the two.

“The parts being of plastic or metal can be readily cleaned or sterilized should occasion require. The parts are simple and economical to produce and assemble.”— Merle K. Benson, from the specification

And the world did not beat a path to his door.
