And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

MOUSETRAP

A snap trap set by turning a handle instead of using fingers.

PatentUS 2,511,519
PatentedJune 13, 1950
InventorGeorge H. Van Brunt
OfLos Angeles, California

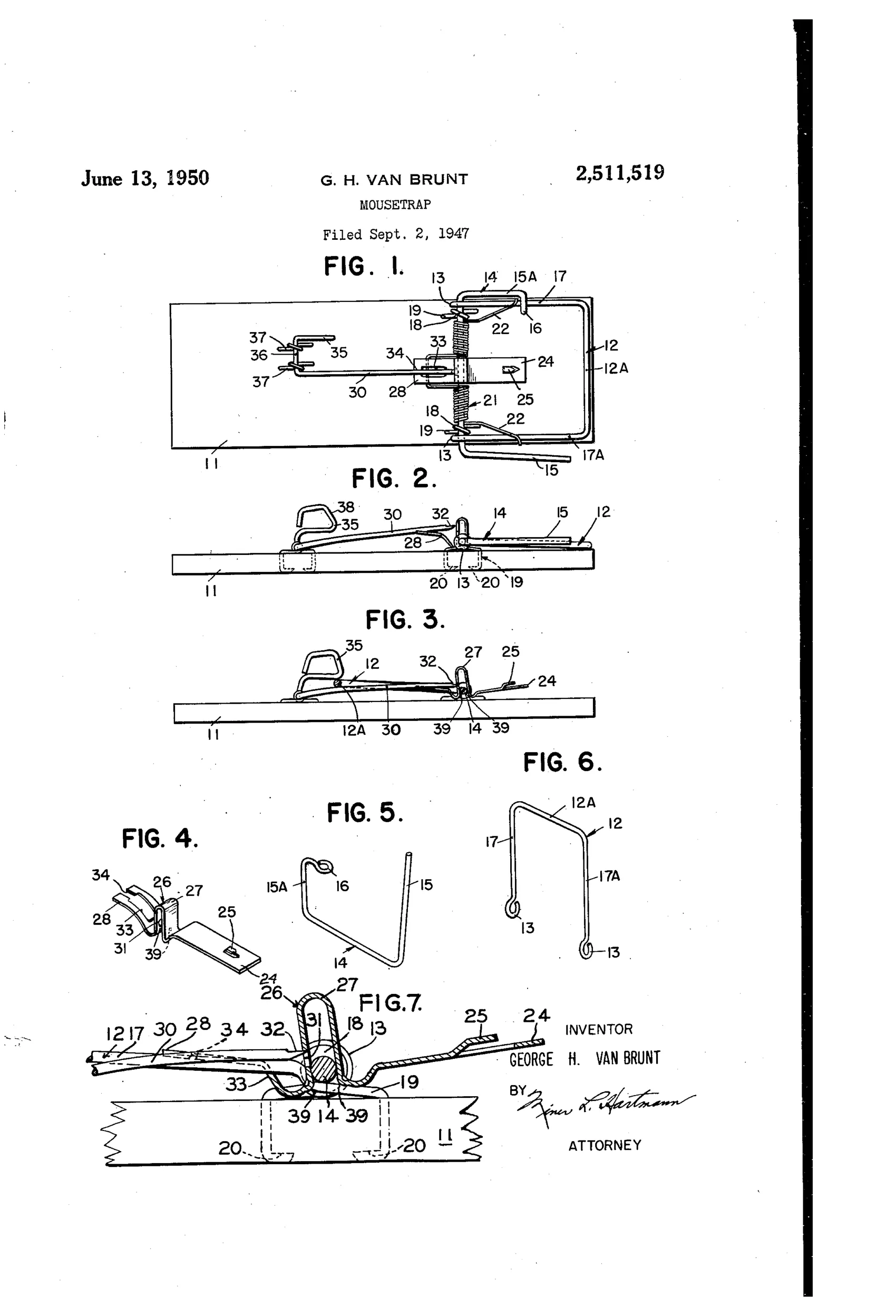

Patent drawing showing a wooden-base mousetrap with a U-shaped wire spring jaw, a bait pedal with trigger, and a locking bar mechanism, illustrated in seven figures from top, side, and perspective views.
click to zoom

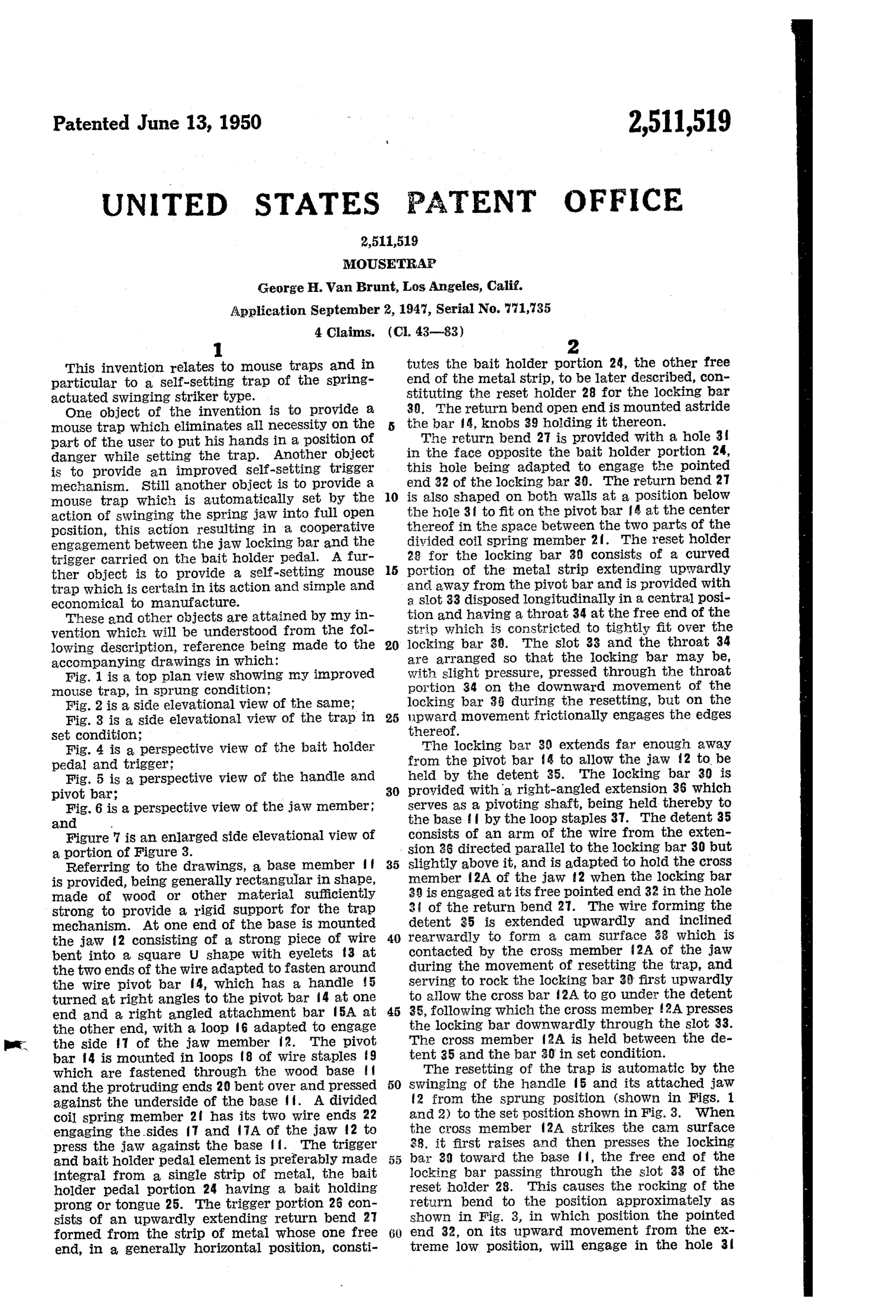

Sheet 1Sheet 2Sheet 3

A spring-driven wire jaw pivots on a shaft attached to a wooden base. When the mouse disturbs the bait pedal, a return bend releases a locking bar, and the jaw swings over to pin the mouse against the base. After the victim is removed, the user rotates the jaw's handle through approximately 180 degrees; a cam surface on the trigger presses the locking bar down through a slotted reset holder, whose restricted throat holds the trigger in position until the bar re-engages its aperture. The trap is thereby returned to set condition without the user's hands entering the path of the jaw.

“One object of the invention is to provide a mouse trap which eliminates all necessity on the part of the user to put his hands in a position of danger while setting the trap.”— George H. Van Brunt, from the specification

And the world did not beat a path to his door.
