And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

MOUSETRAP

The trap resets with a flip of the wrist.

PatentUS 2,460,417
PatentedFebruary 1, 1949
InventorRobert F. Goostrey
OfJackson, Michigan

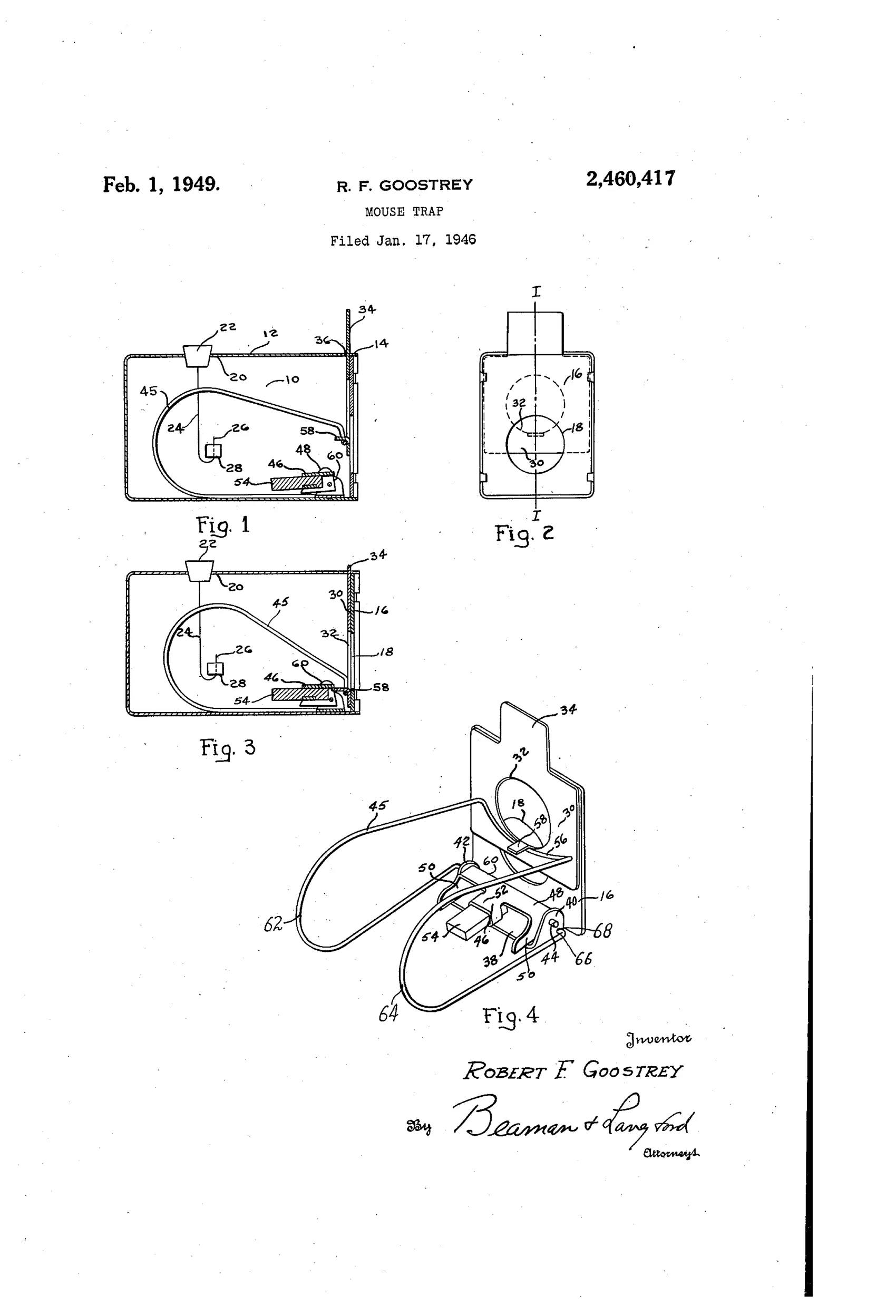

Patent drawing showing a rectangular sheet metal mousetrap casing with a sliding jaw plate, wire spring, and pivoting baited trigger, illustrated in four figures including a perspective exploded view of the spring and trigger assembly.
click to zoom

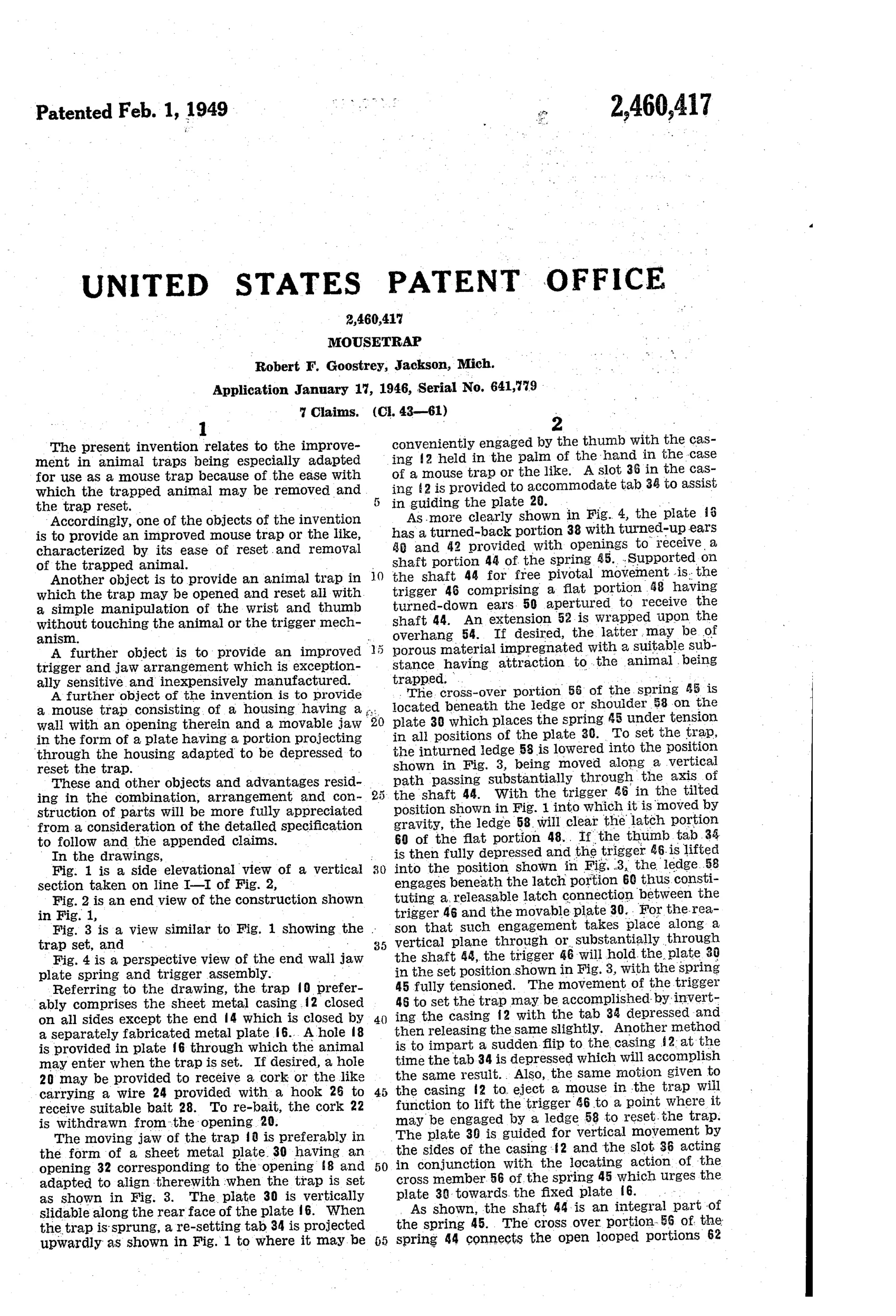

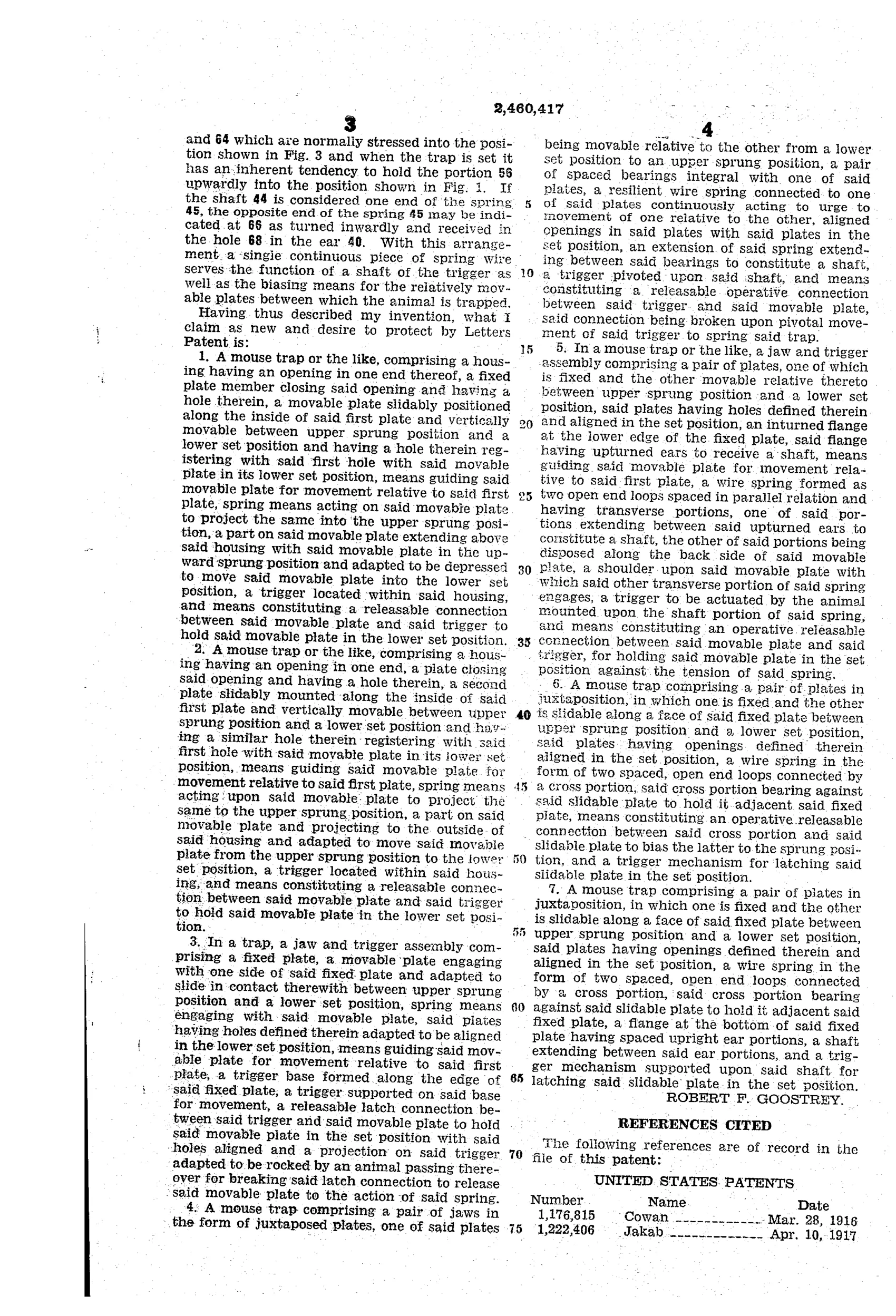

Sheet 1Sheet 2Sheet 3

The mouse enters through a hole in a fixed end plate, behind which a second plate is latched down with its own hole aligned. The mouse disturbs a baited trigger pivoted on the spring wire, breaking the latch. The spring snaps the movable plate upward, closing the opening and confining the mouse. The user then depresses a thumb tab and flips the casing to eject the mouse and reset the trigger without touching either.

“Another object is to provide an animal trap in which the trap may be opened and reset all with a simple manipulation of the wrist and thumb without touching the animal or the trigger mechanism.”— Robert F. Goostrey, from the specification

And the world did not beat a path to his door.
