And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

ANIMAL TRAP

Each animal, in falling, resets the trap for the next.

PatentUS 1,765,975
PatentedJune 24, 1930
InventorLouis Haege
OfNew Memphis, Illinois
A rectangular metal box trap with a hinged lid and side handle, attached at an angle to a wire-screened cage that serves as a ramp and holding pen, with numbered internal parts showing a pivoted trap door, trigger lever, bait platform and one-way inlet door.
click to zoom
Sheet 1Sheet 2Sheet 3Sheet 4Sheet 5Sheet 6Sheet 7

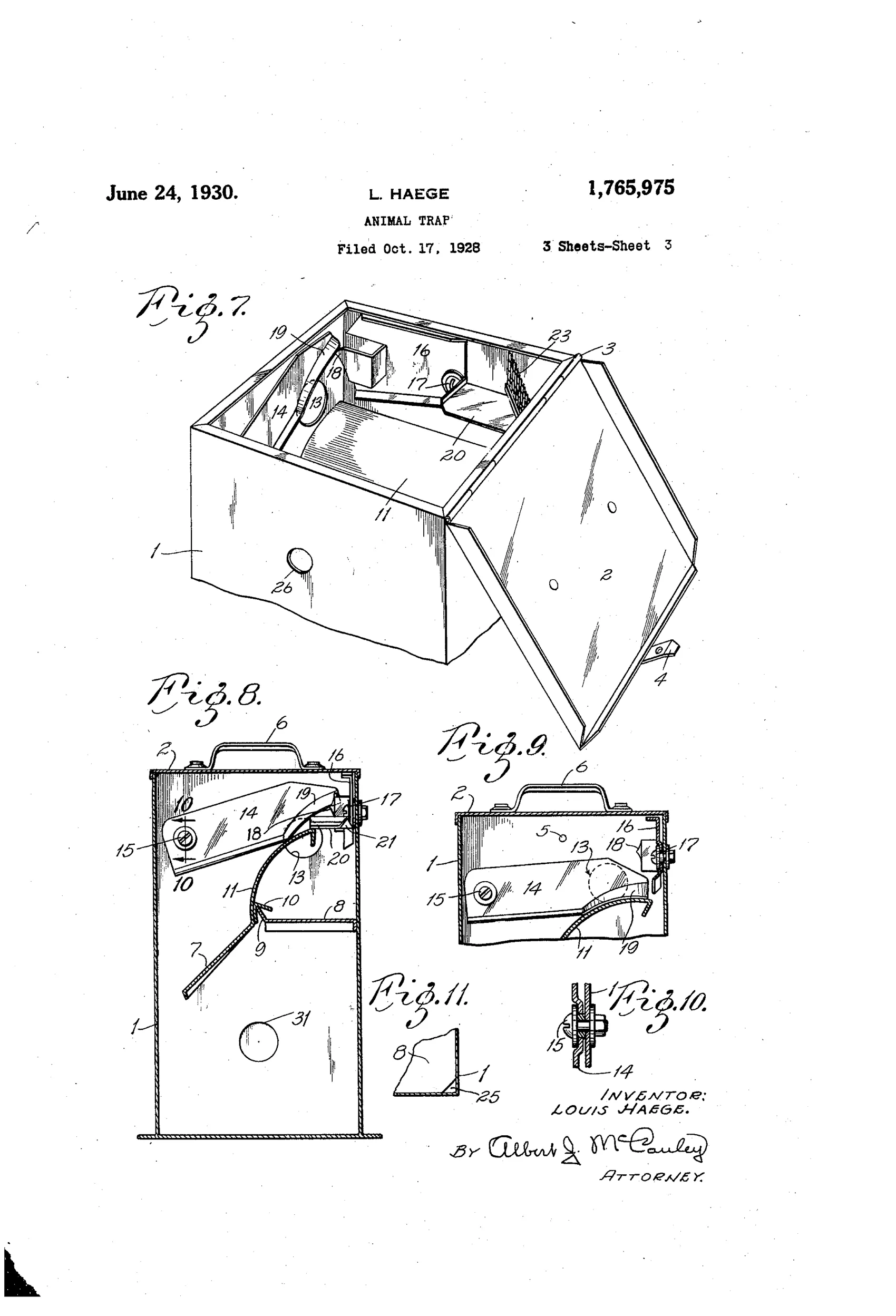

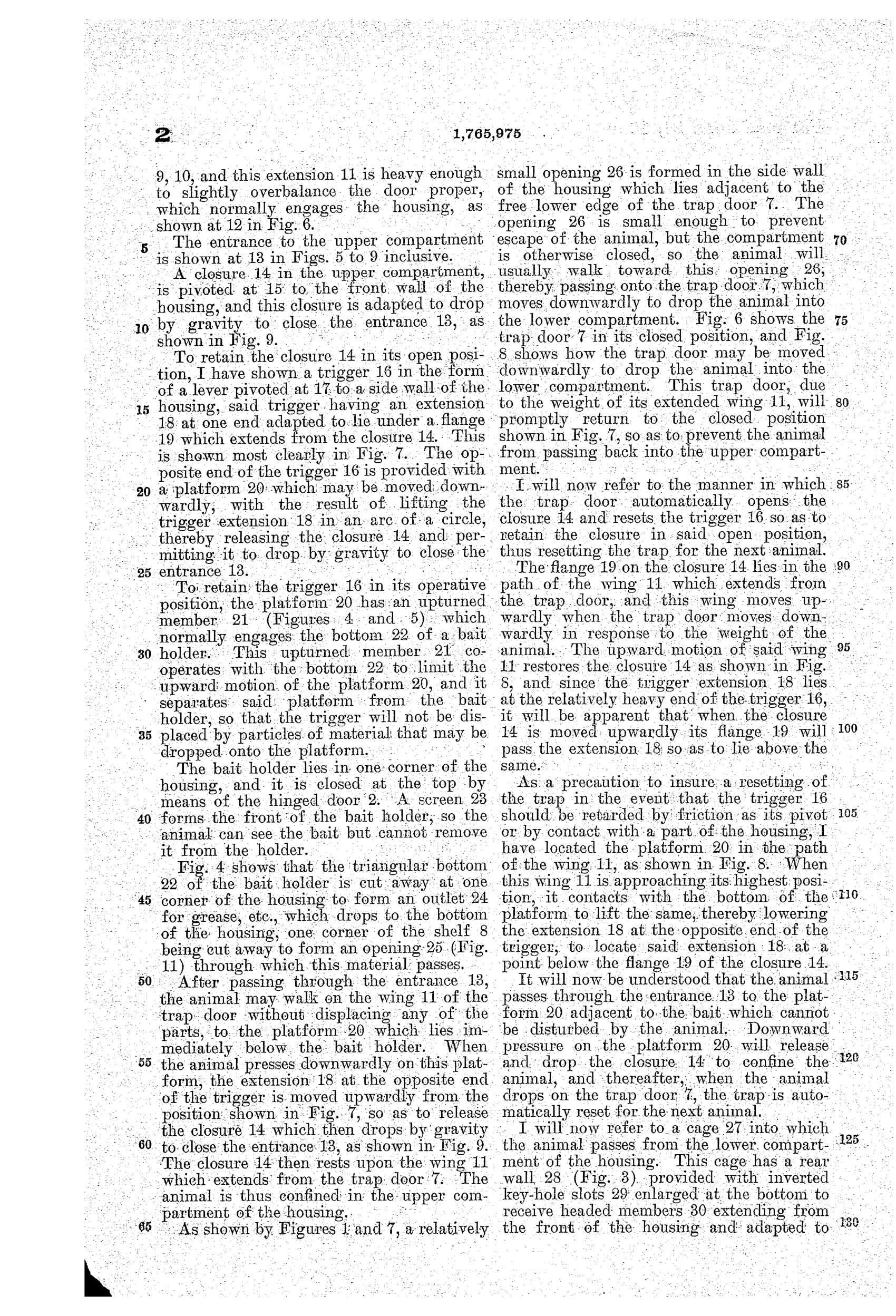

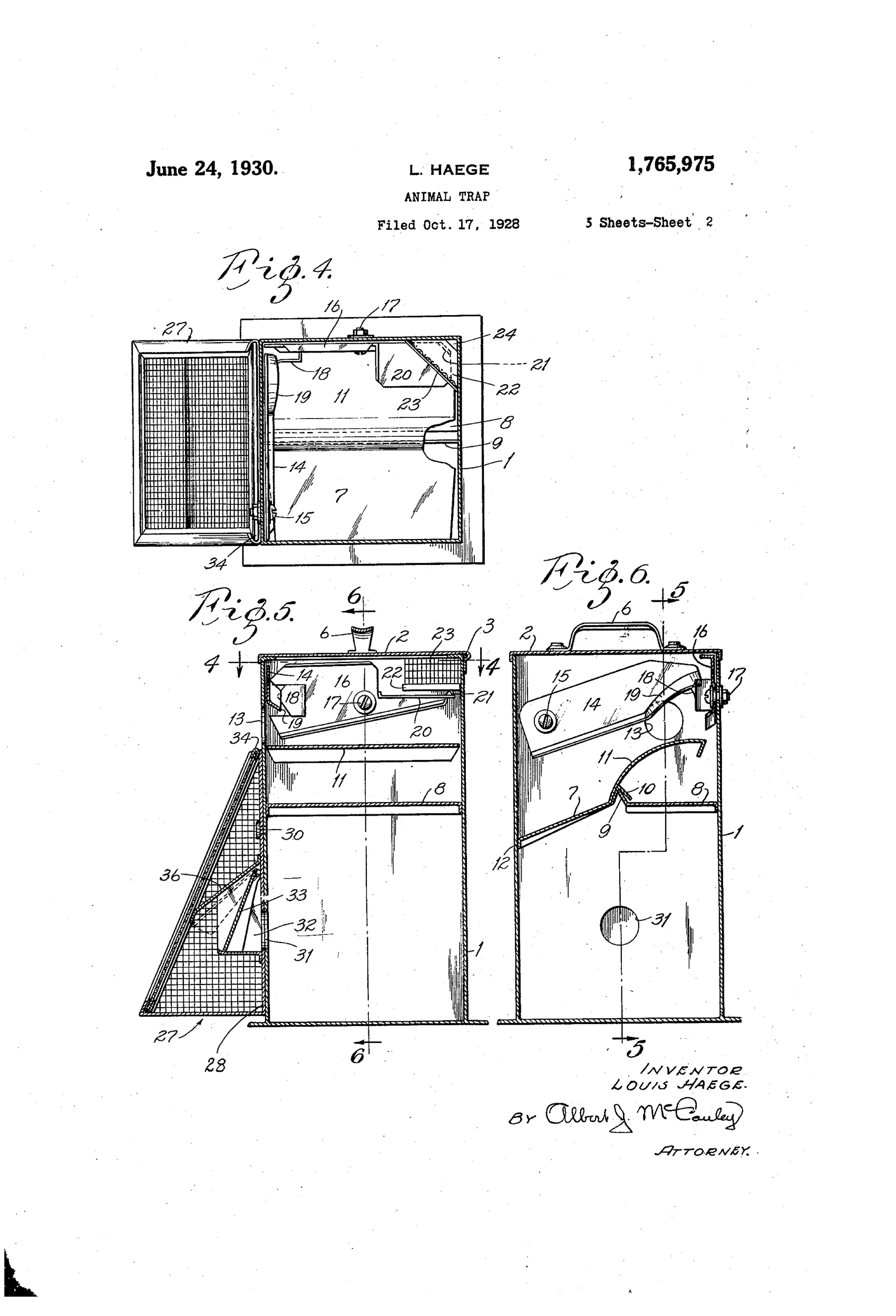

The mouse enters the upper compartment through an open closure and steps on a baited trigger platform, which releases the closure to fall shut behind it. The mouse then walks onto a pivoted trap door, which tips under its weight and drops it into the lower compartment. A wing on the falling trap door pushes the closure and trigger back into their set position. The mouse passes through a one-way door into a removable screened cage, where it remains as an attractant for further animals.

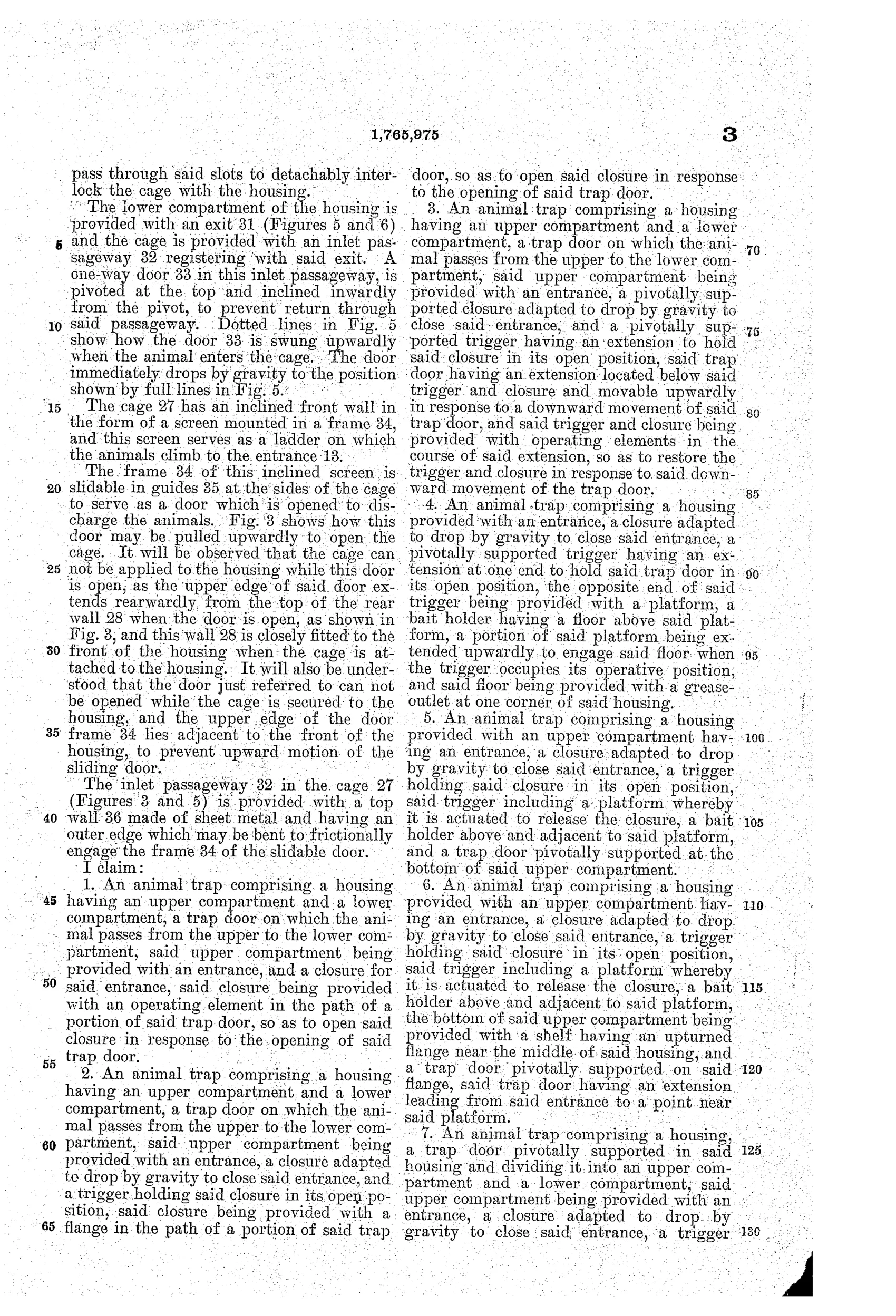

“The cage is preferably removable from the body of the trap, and it has a door to discharge the animals. The cage containing the trapped animals may be submerged in water to drown them, or the door may be opened while the animals are alive.”— Louis Haege, from the specification

And the world did not beat a path to his door.
