And The World Did Not Beat A Path To His Door

4,400 attempts at a solved problem

ANIMAL-TRAP

A second pair of jaws fires in case the first misses.

PatentUS 1,387,826
PatentedAugust 16, 1921
InventorJohn F. Arneth
OfWashington, District of Columbia

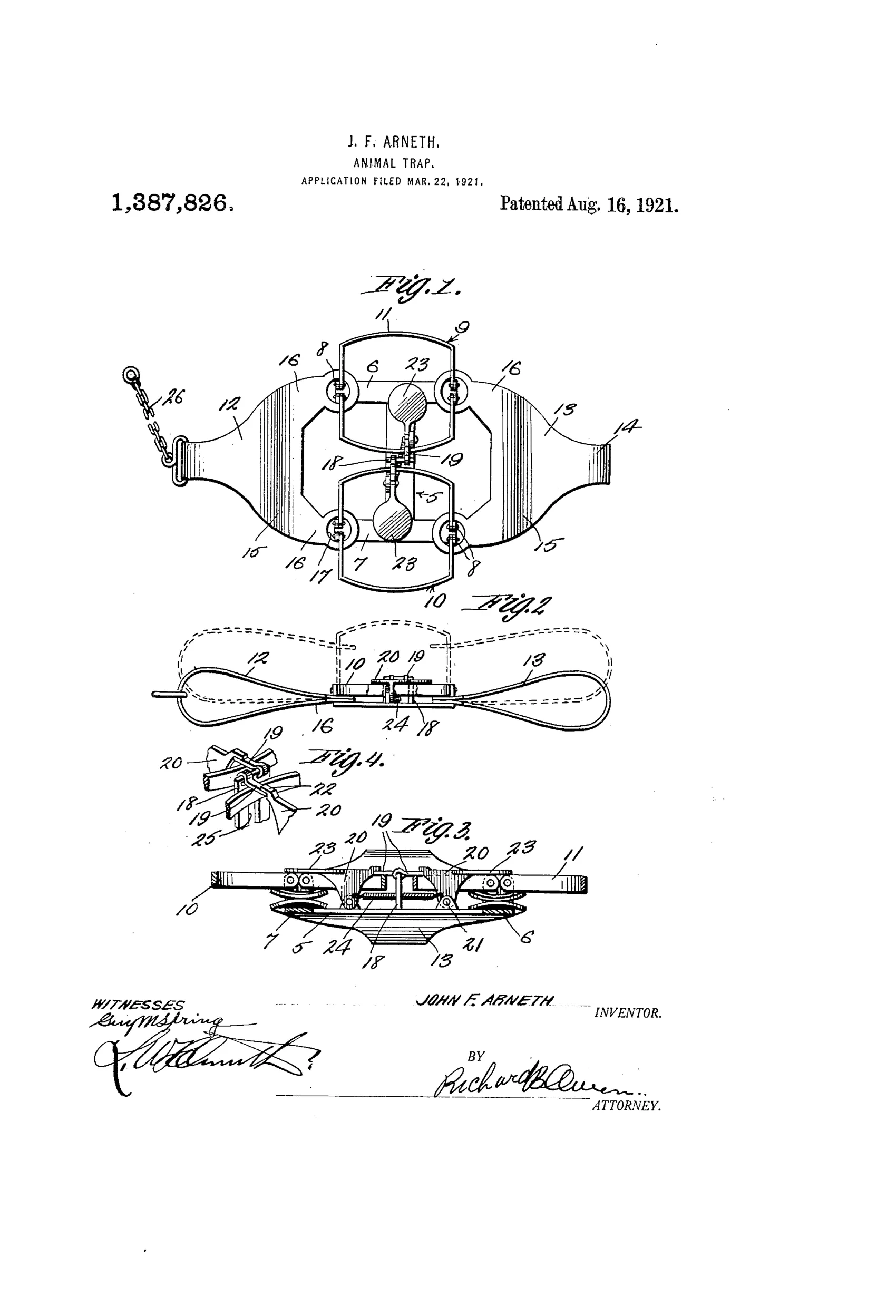

Patent drawing of a double-ended steel animal trap with two pairs of U-shaped jaws, coil springs, a central standard with pivoting latches and bait-platform triggers, and an anchoring chain, shown in plan, side, sectional, and perspective views.
click to zoom

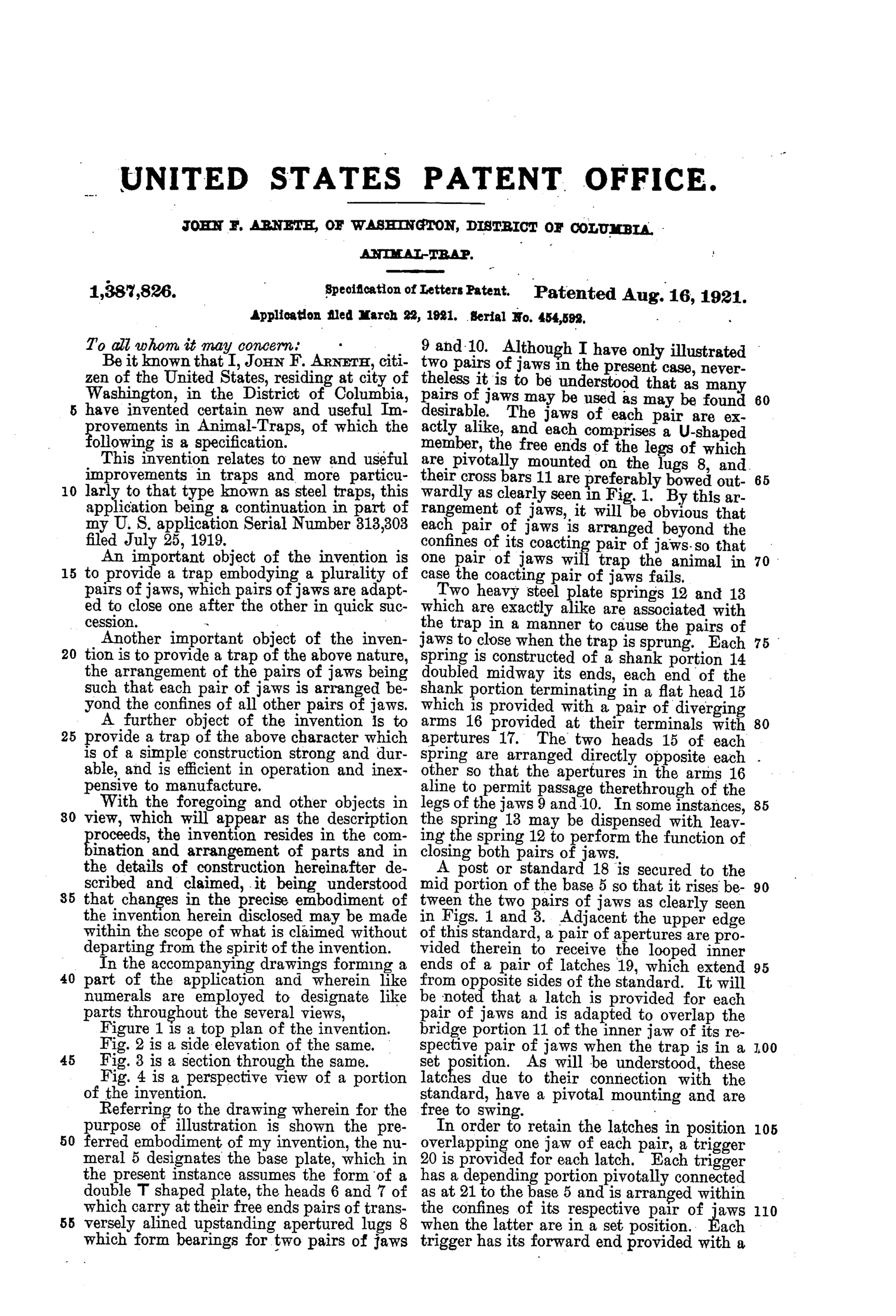

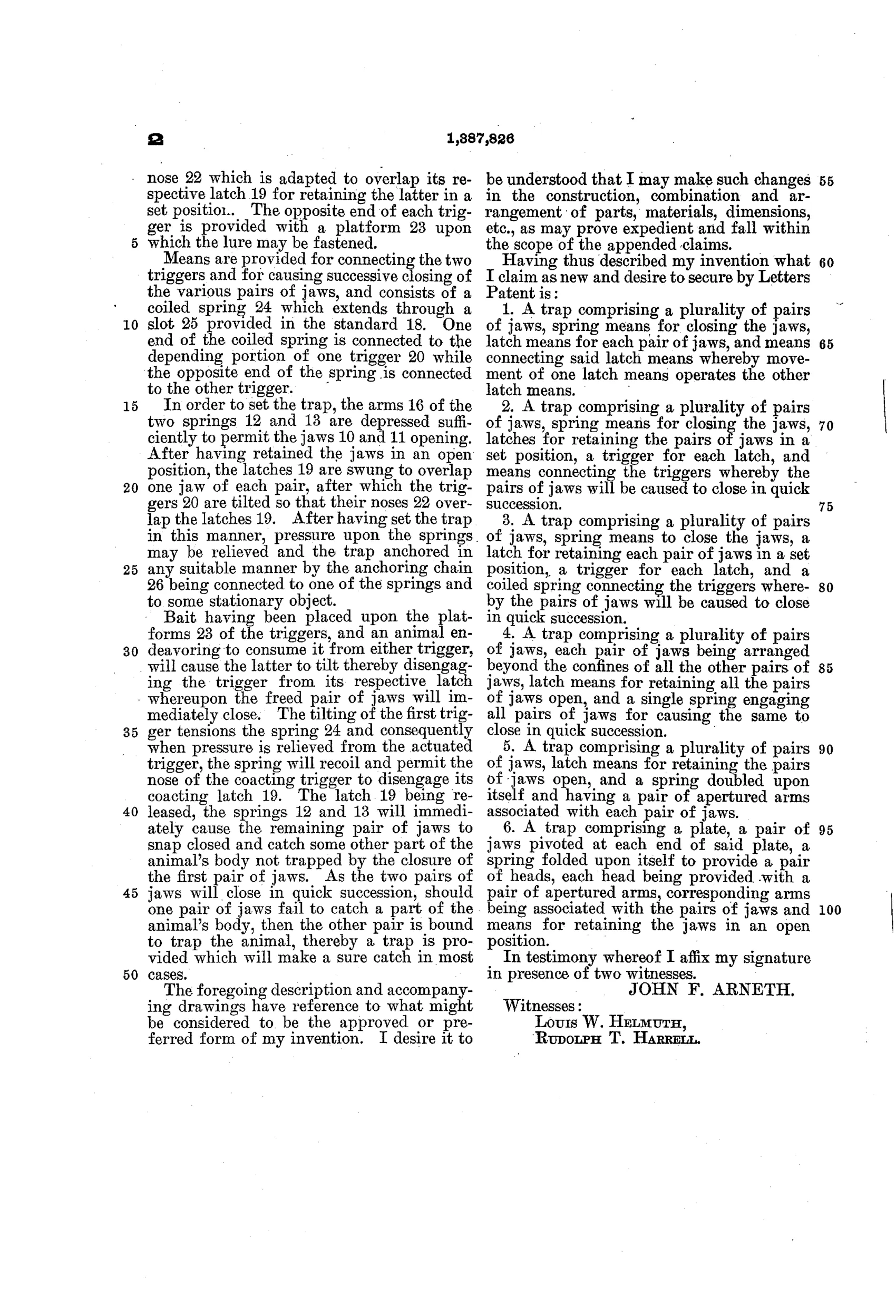

Sheet 1Sheet 2Sheet 3

The trap carries two pairs of spring-loaded steel jaws on one base plate, each held open by a latch and a baited trigger. The animal disturbs one trigger, releasing its latch, and that pair of jaws snaps shut. The tilting of the first trigger tensions a coiled spring connecting the two triggers, which then releases the second latch. The second pair of jaws closes in quick succession on whatever part of the animal the first pair did not catch.

“As the two pairs of jaws will close in quick succession, should one pair of jaws fail to catch a part of the animal's body, then the other pair is bound to trap the animal, thereby a trap is provided which will make a sure catch in most cases.”— John F. Arneth, from the specification

And the world did not beat a path to his door.
