TRAP

After the kill, a trapdoor drops the carcass and resets the trap.

PatentUS 12,167,727
PatentedDecember 17, 2024
InventorArthur Randell Bradwell
OfBirmingham, GB

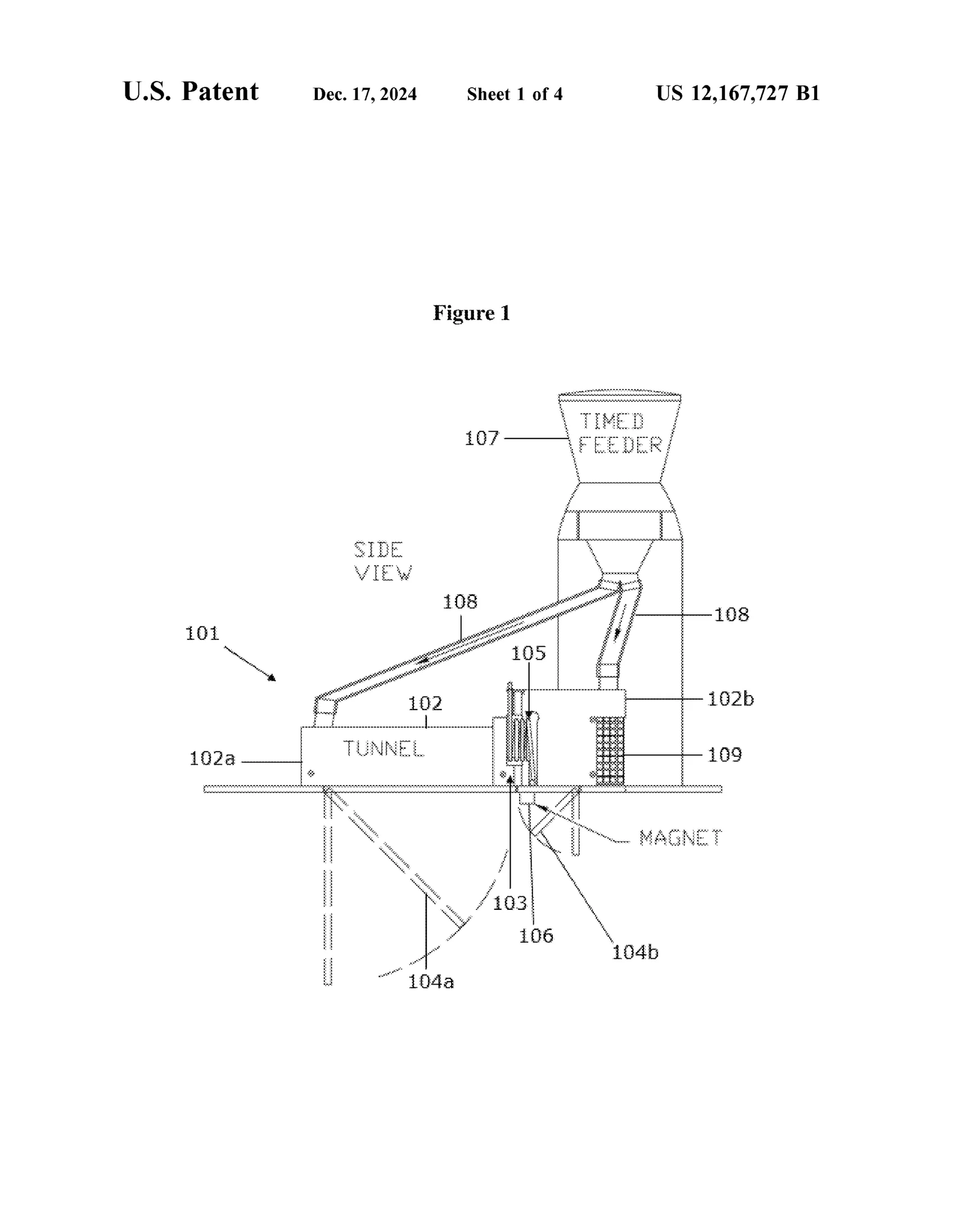

Line drawing of a squirrel trap showing a horizontal tunnel leading to a spring-loaded kill mechanism beneath an angled chute connected to an overhead timed feeder hopper, with a hinged trap door and magnet catch below the tunnel floor.
click to zoom
Sheet 1Sheet 2Sheet 3Sheet 4Sheet 5Sheet 6Sheet 7Sheet 8Sheet 9

A squirrel or possum enters a tunnel toward bait dispensed from an overhead timed feeder. Inside, the animal contacts a mechanical trigger that releases a spring-loaded strike bar, which strikes it at the neck. The strike bar also hits a lever, which after a brief delay withdraws a retaining pin holding a hinged floor door shut. The door opens and the deceased animal falls out by gravity, leaving the trap ready for the next animal without operator attendance.

“In tests by the inventors, the Kania trap had an almost 100% kill rate.”— Arthur Randell Bradwell, from the specification

And the world did not beat a path to his door.
