ANIMAL-TRAP
The trigger arm swivels to any angle the trapper desires.

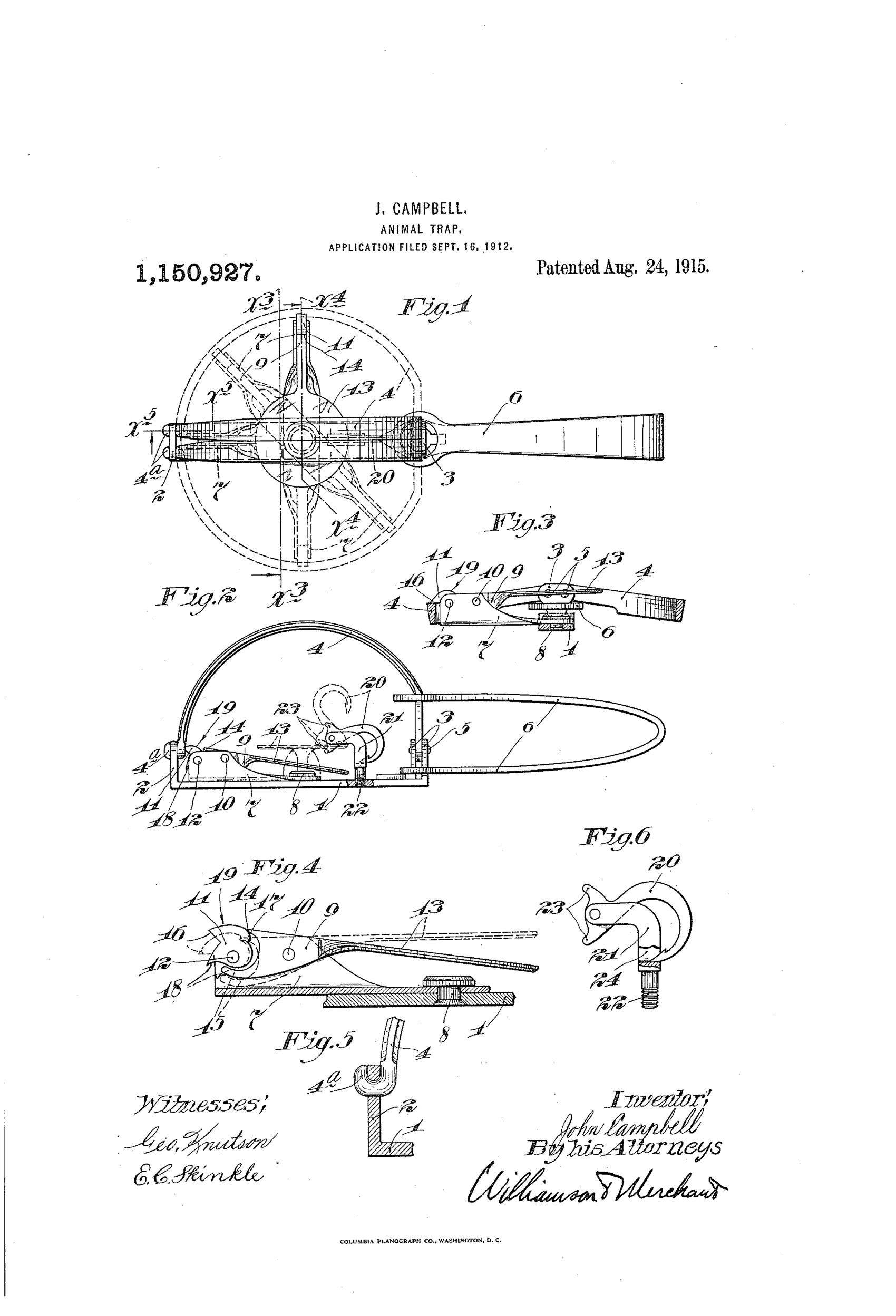

A heavy U-shaped spring closes a pair of jaws hinged to a flat bar base. A trigger-supporting arm pivoted at the center of the base swings to either side of the trap, or into alignment with it, before setting. Pressing the bait pan drives a two-pronged trigger lever against a trigger dog, which is positively moved both into and out of engagement with the jaw rather than relying on the jaw's closing force. An optional screw-in bait hook allows the trap to be hung vertically on a tree trunk, tripping the pan when the animal moves the hook up or down.
“The trap is, therefore, universally adjustable to all of the various different conditions encountered by trappers, and enabling the trapper to set the trap always to the best advantage.”— John Campbell, from the specification
