TRIGGER FOR A SPRING-TYPE MOUSETRAP

Snaps only after the mouse has finished eating the bait.

PatentUS 3,430,380
PatentedMarch 4, 1969
InventorRussell G. Poff
OfRiner, Virginia

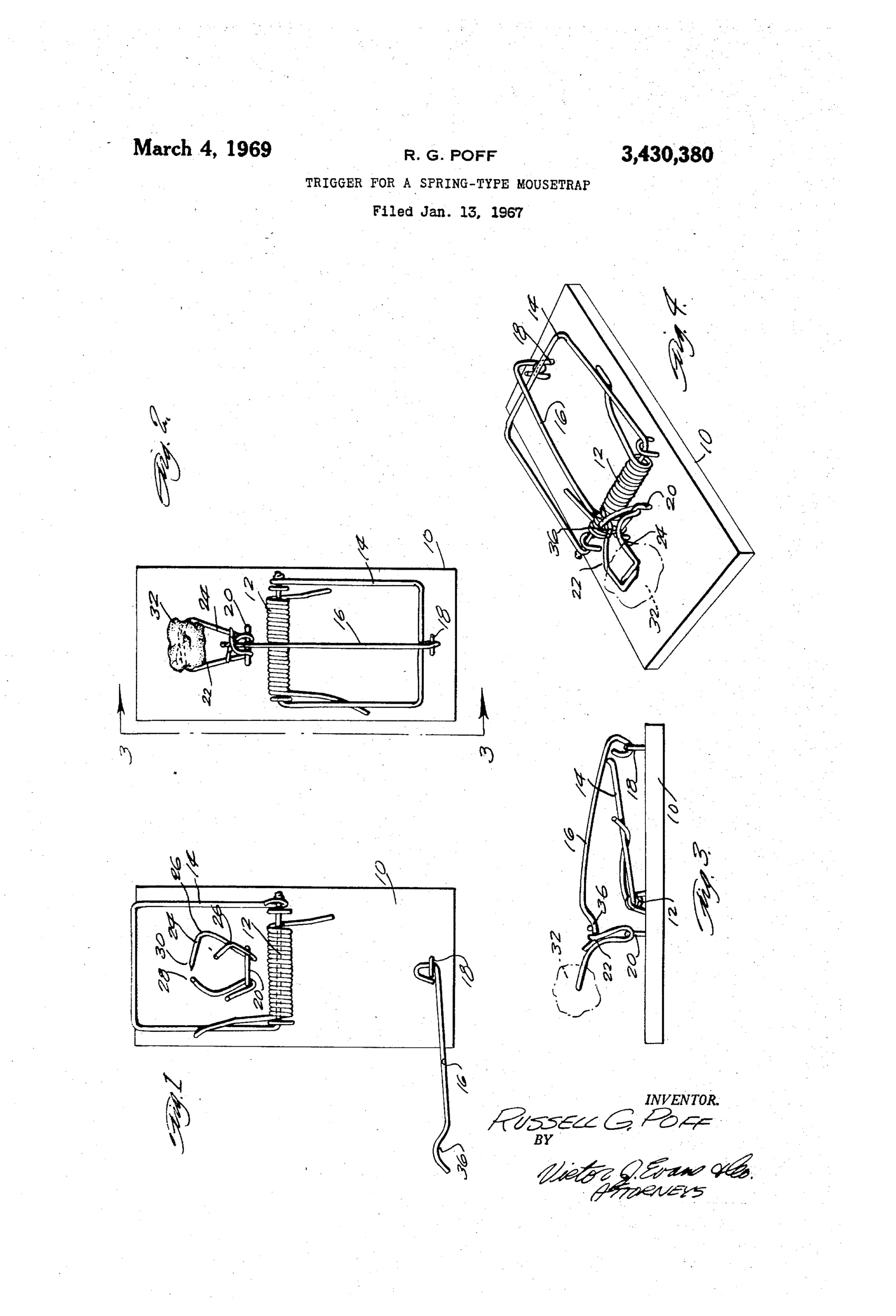

Patent drawing of a rectangular wooden mousetrap base showing a coil spring, a U-shaped wire clamp, a pivoted lever, and a pair of small wire bait holders with bent fingers holding a piece of bait, illustrated in plan, side, and perspective views.
click to zoom

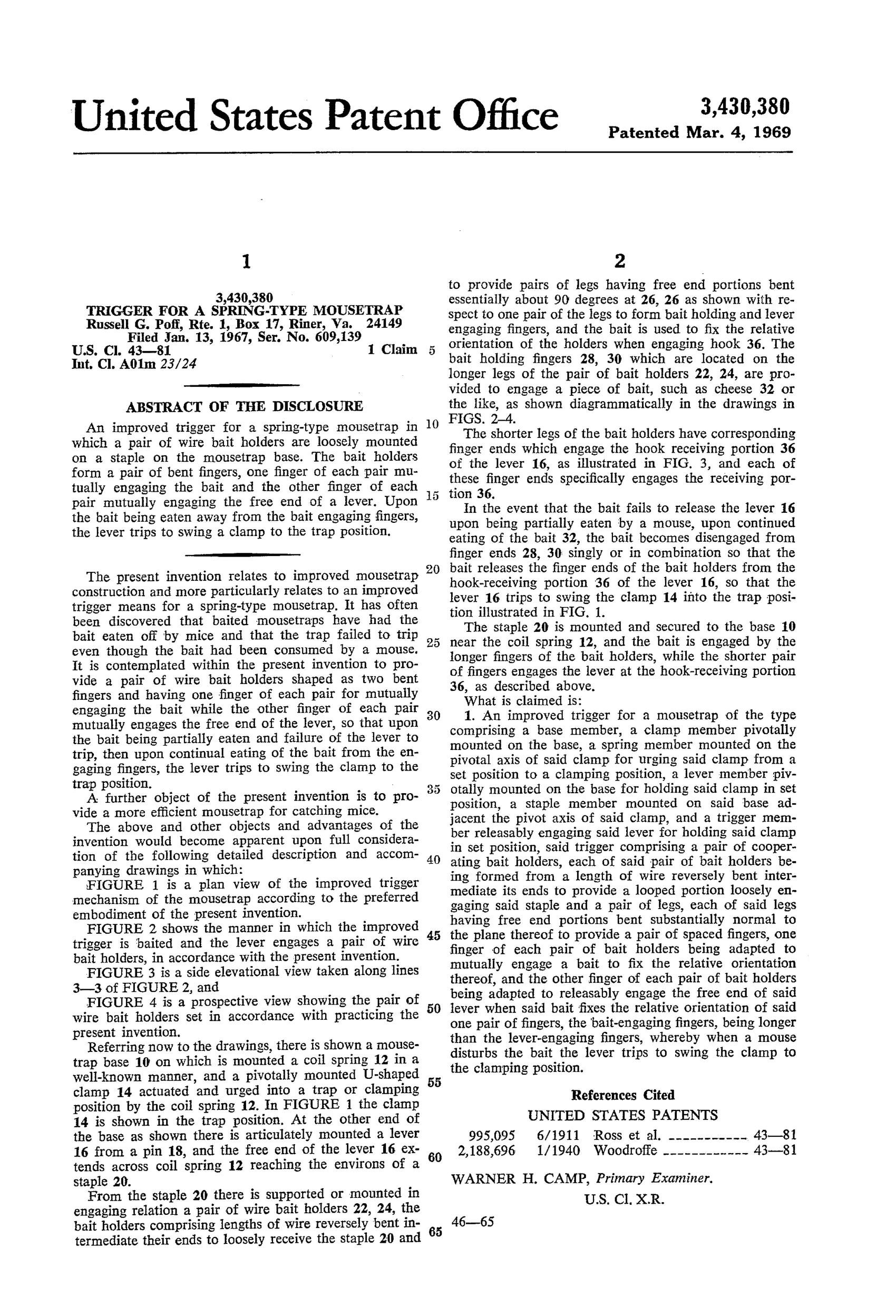

Sheet 1Sheet 2

The bait is impaled on the longer fingers of two wire holders, which fixes their orientation so that their shorter fingers hold the trigger lever in place. The mouse eats the bait off the fingers. As the bait is consumed, the holders lose their fixed orientation and their fingers slip off the lever. The lever trips and the spring-driven clamp swings onto the mouse, which is still at the bait.

“It has often been discovered that baited mousetraps have had the bait eaten off by mice and that the trap failed to trip even though the bait had been consumed by a mouse.”— Russell G. Poff, from the specification

And the world did not beat a path to his door.
