ANIMAL TRAP

A conventional snap trap with a handle for not touching the mouse.

PatentUS 1,967,179

PatentedJuly 17, 1934

InventorJames Harry Schocke

OfOneida, New York

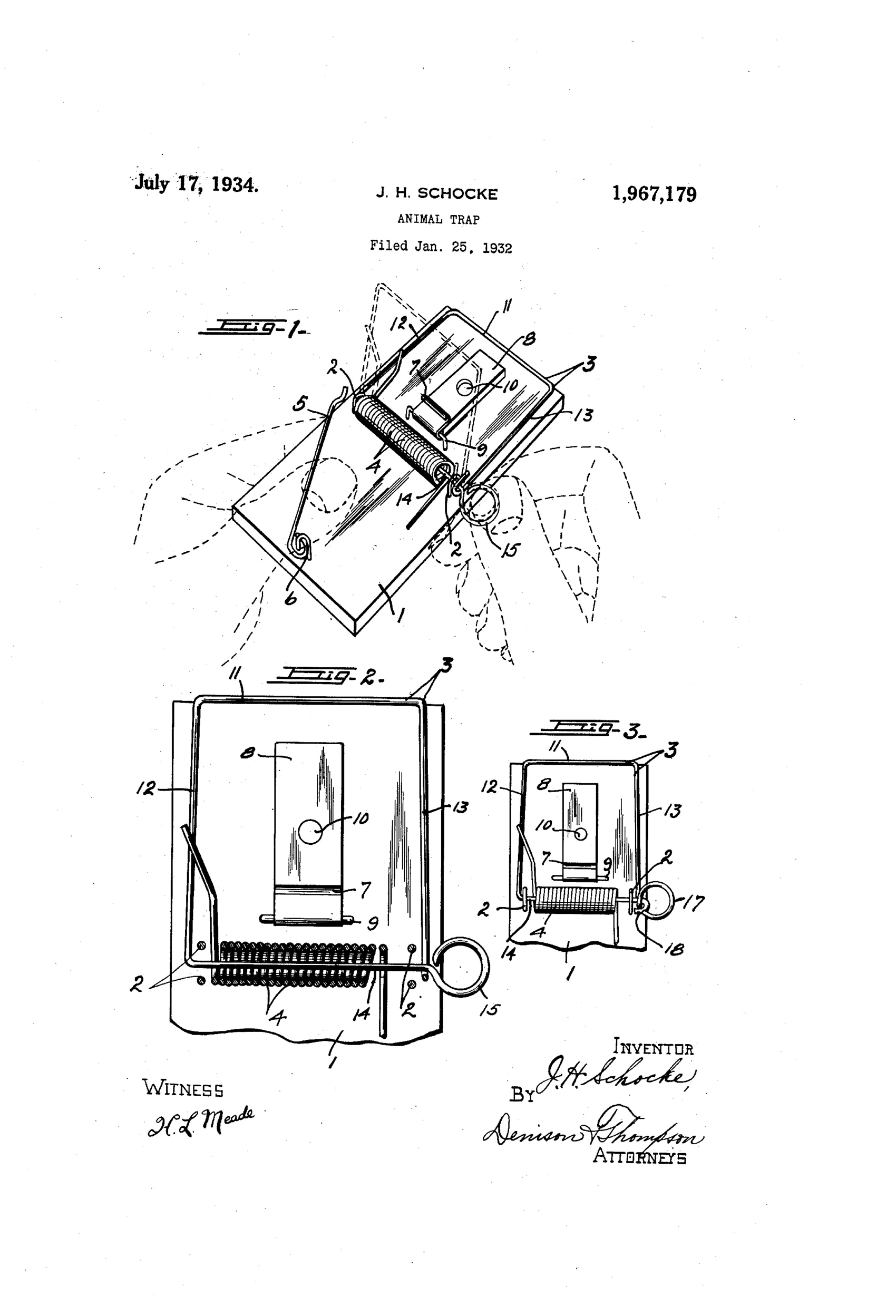

Patent drawing of a rectangular wire mouse trap with a U-shaped swinging jaw, coiled spring, bait trigger plate, and a bent-wire handle for resetting the jaw, shown in three views labeled Fig. 1, Fig. 2, and Fig. 3. — click to zoom

A U-shaped wire jaw is pivoted on a rectangular base and driven by a coiled spring. A latch bar holds the jaw open against a shoulder on the bait-holding trigger plate; the mouse disturbs the bait and the jaw swings across the base and strikes it. One leg of the jaw is bent outward past the pivot to form a handle. The user grips the handle and swings the jaw open, so the dead mouse falls out or can be shaken from the trap without being handled.

“The main object of this invention is to provide a trap of the above-mentioned class with a convenient economically constructed means whereby the jaw may be quickly and easily swung about its pivot for releasing the animal without it being necessary to touch or handle the animal.”— James Harry Schocke, from the specification

And the world did not beat a path to his door.
